W312KPP51
Technical specifications
| D |
Outside diameter |
130 mm |
| B |
Width inner ring |
48 mm |
| C |
Width outer ring |
33 mm |
| a |
Shaft size |
44.6 mm |
| Cdyn |
Dynamic load rating |
81.7 kN |
| Co |
Static load rating |
51.8 kN |
| Pu |
Fatigue load limit |
2.176 kN |

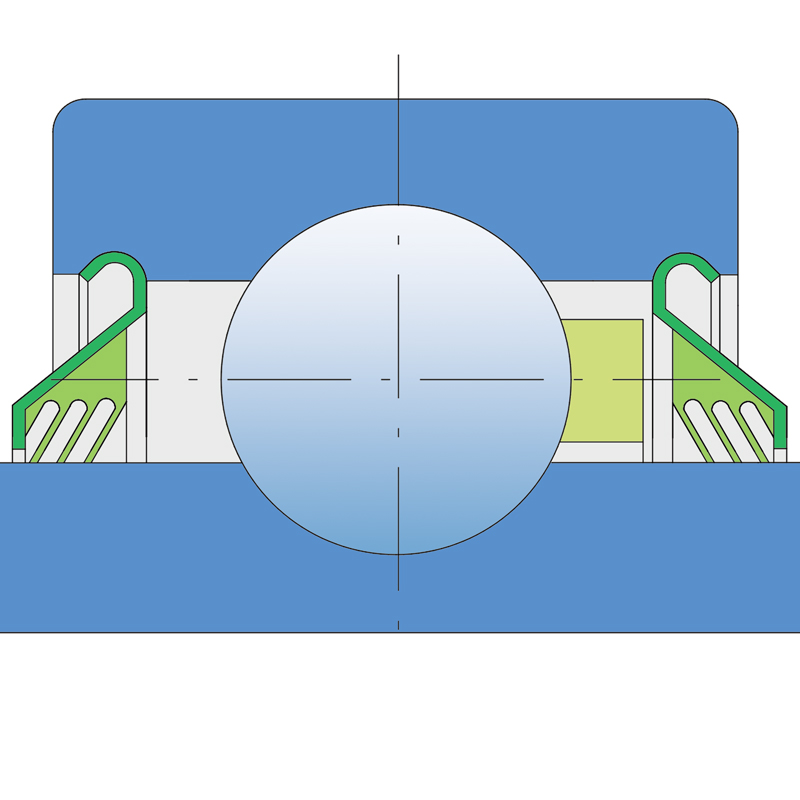

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| JOHN DEERE |
AFH204893 |
| PEER |
W312KPP51 |
Installations
| JOHN DEERE |
Cotton Pickers - CP570, CP770 |
| JOHN DEERE |
Cotton Stripper - CS770 |
| JOHN DEERE |
440E |
| JOHN DEERE |
447 |
| JOHN DEERE |
448 |
| JOHN DEERE |
449 |
| JOHN DEERE |
450E |
| JOHN DEERE |
450M |
| JOHN DEERE |
451E |
| JOHN DEERE |
451M |
| JOHN DEERE |
451R |
| JOHN DEERE |
456 |
| JOHN DEERE |
457 |
| JOHN DEERE |
458 |
| JOHN DEERE |
458S |
| JOHN DEERE |
458STD |
| JOHN DEERE |
459 |
| JOHN DEERE |
459E |
| JOHN DEERE |
459SS |
| JOHN DEERE |
459STD |
| JOHN DEERE |
460M |
| JOHN DEERE |
460R |
| JOHN DEERE |
461M |
| JOHN DEERE |
461R |
| JOHN DEERE |
467 |
| JOHN DEERE |
468 |
| JOHN DEERE |
468S |
| JOHN DEERE |
469 |
| JOHN DEERE |
469PR |
| JOHN DEERE |
469SS |
| JOHN DEERE |
547 |
| JOHN DEERE |
550M |
| JOHN DEERE |
551M |
| JOHN DEERE |
556 |
| JOHN DEERE |
557 |
| JOHN DEERE |
558 |
| JOHN DEERE |
559 |
| JOHN DEERE |
559SS |
| JOHN DEERE |
560M |
| JOHN DEERE |
560R |
| JOHN DEERE |
561M |
| JOHN DEERE |
561R |
| JOHN DEERE |
567 |
| JOHN DEERE |
568 |
| JOHN DEERE |
569 |
| JOHN DEERE |
569PR |
| JOHN DEERE |
569SS |
