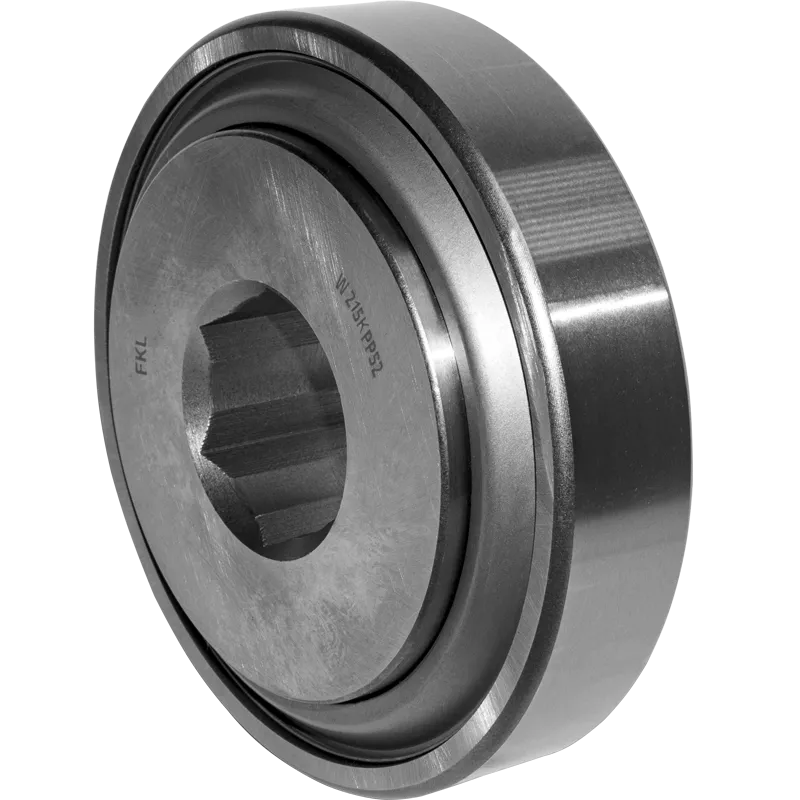

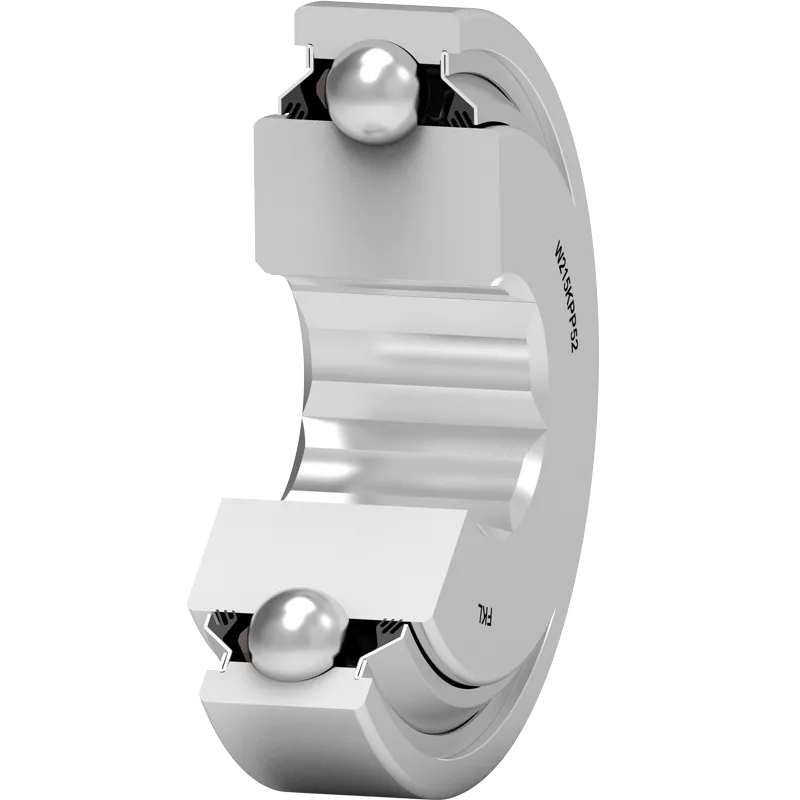

W215KPP52

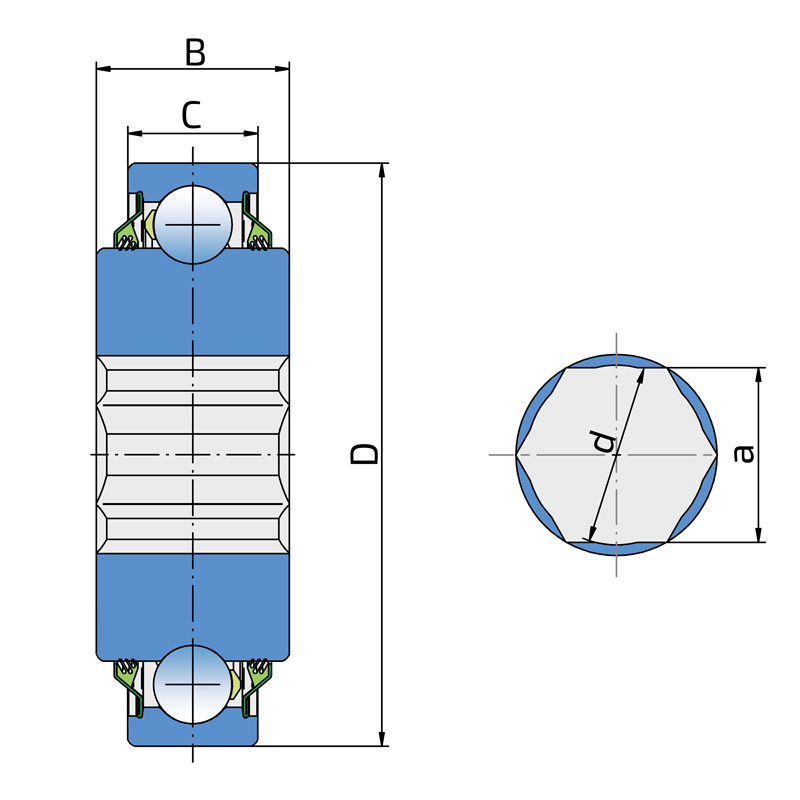

Technical specifications
| a | Size of the hexagon | 38.25 mm |
| a1 | Diagonal of the hexagon | 44 mm |
| d | Bore diameter | 39.35 mm |
| D | Outside diameter | 130 mm |
| B | Width inner ring | 43 mm |
| C | Width outer ring | 29 mm |
| kg | Mass | 2.65 kg |
| Cdyn | Dynamic load rating | 81.7 kN |
| Co | Static load rating | 51.8 kN |
| Pu | Fatigue load limit | 2.176 kN |

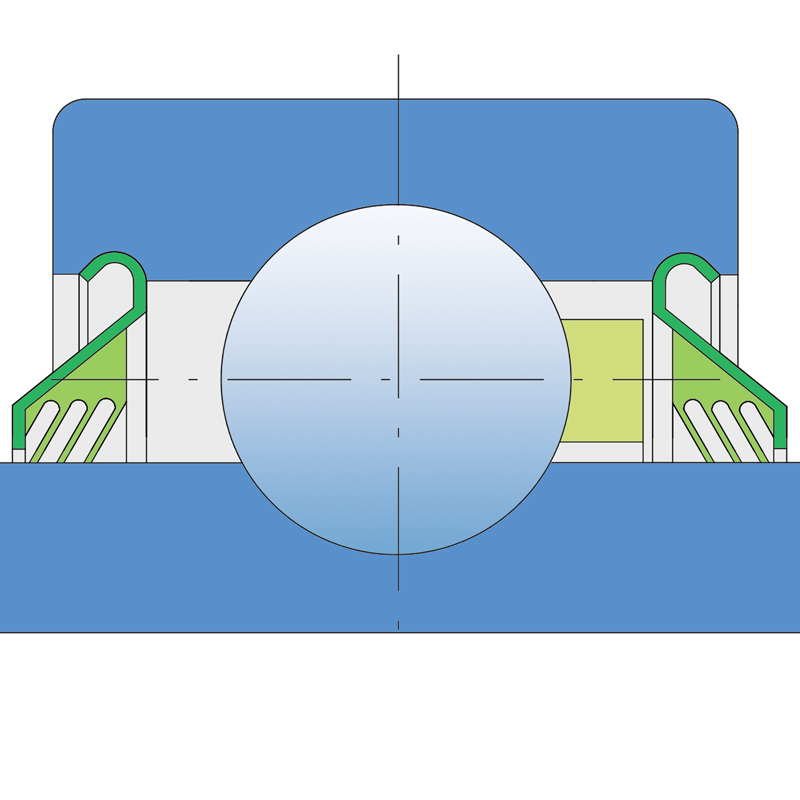

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| JOHN DEERE | AFH205481 |
| PEER | W215KPP52 |
Installations
| JOHN DEERE | BALER, ROUND |
