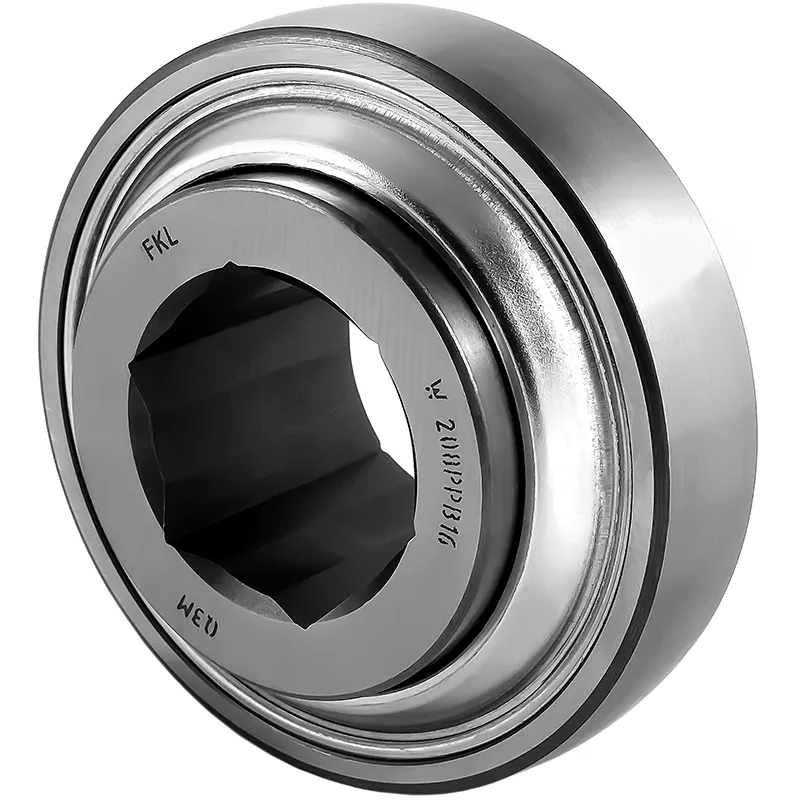

W 208PPB16

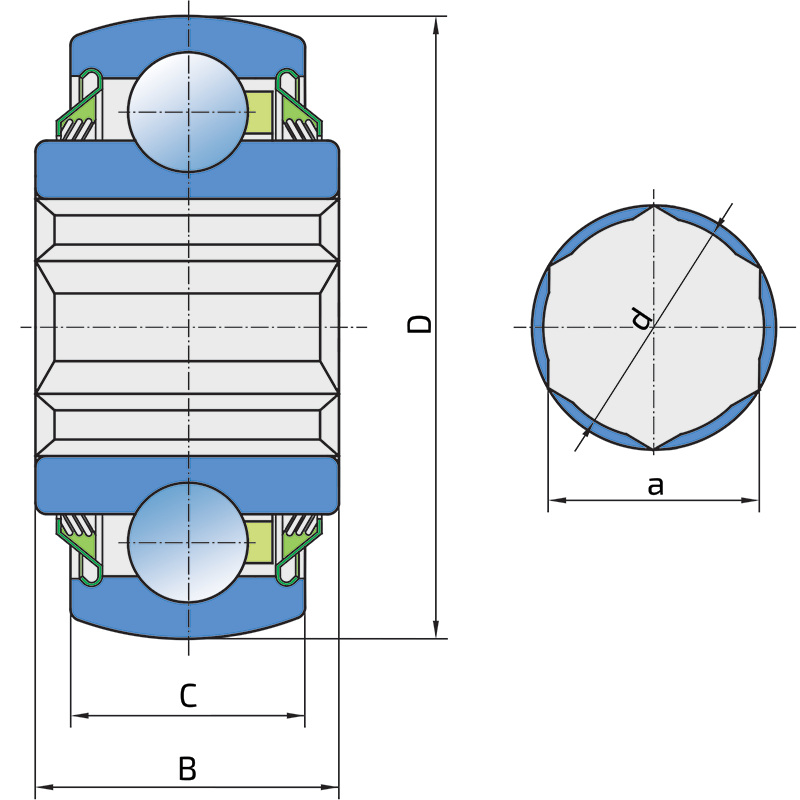

Technical specifications
| D | Outside diameter | 3.1496 inch |
| D | Outside diameter | 80 mm |
| C | Width outer ring | 0.709 inch |
| C | Width outer ring | 18 mm |
| d | Bore diameter | 1.28 inch |
| d | Bore diameter | 32.5 mm |
| d1 | Outer diameter inner ring | 2.047 inch |
| d1 | Outer diameter inner ring | 52 mm |
| B | Width inner ring | 1.437 inch |
| B | Width inner ring | 36.5 mm |
| a | Hexagonal bore | 1.251 inch |
| a | Hexagonal bore | 31.78 mm |
| a | Shaft size | 1 1/4 inch |
| a1 | Diagonal of the hexagon | 1.44 inch |
| a1 | Diagonal of the hexagon | 36.6 mm |
| kg | Mass | 0.67 kg |
| Cdyn | Dynamic load rating | 30.7 kN |
| Co | Static load rating | 19 kN |
| Pu | Fatigue load limit | 0.8 kN |

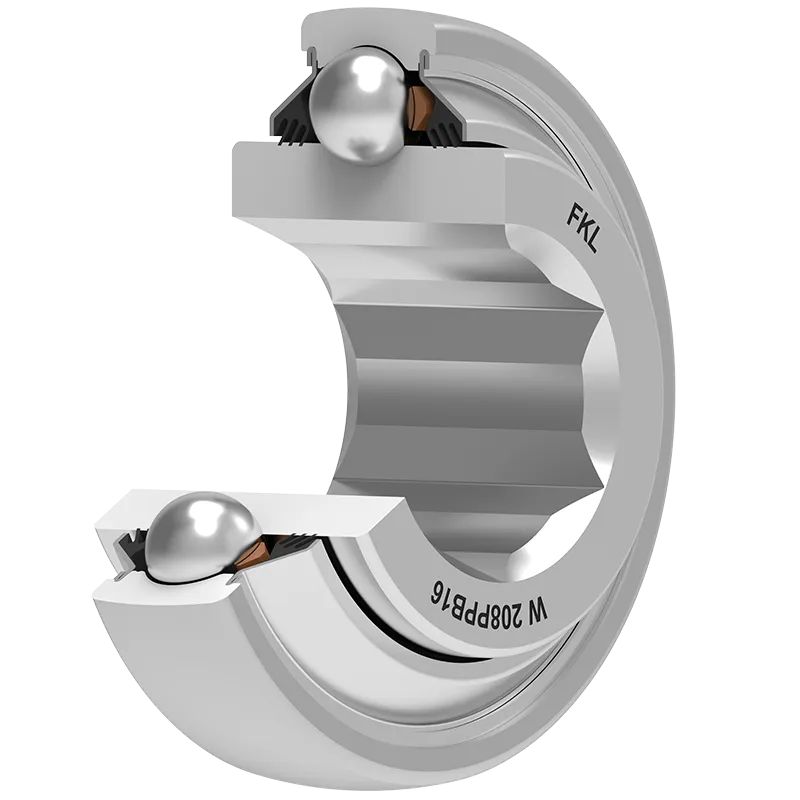

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| JOHN DEERE | H114873 |
| INA | W208PPB16 |
| MASSEY FERGUSON | 1577800W1 |
| CASE | 700703101 |
| NEW HOLLAND | 86523785 |
| FAFNIR | W208PPB16 |
| PEER | W208PPB16 |
| NTN | 2AH08-1.1/4V4 |
| BCA | HPC104TPA |
| JOHN DEERE | AE46606 |
| JOHN DEERE | JD9373 |
| KABAT | W 208PPB16 |
