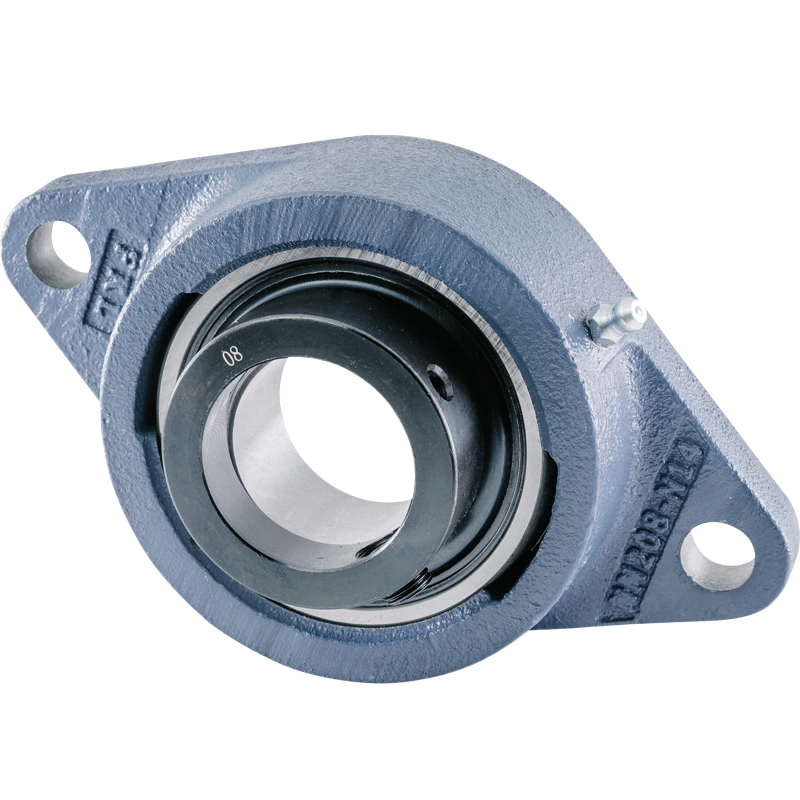

UYNN 208 2S-N14

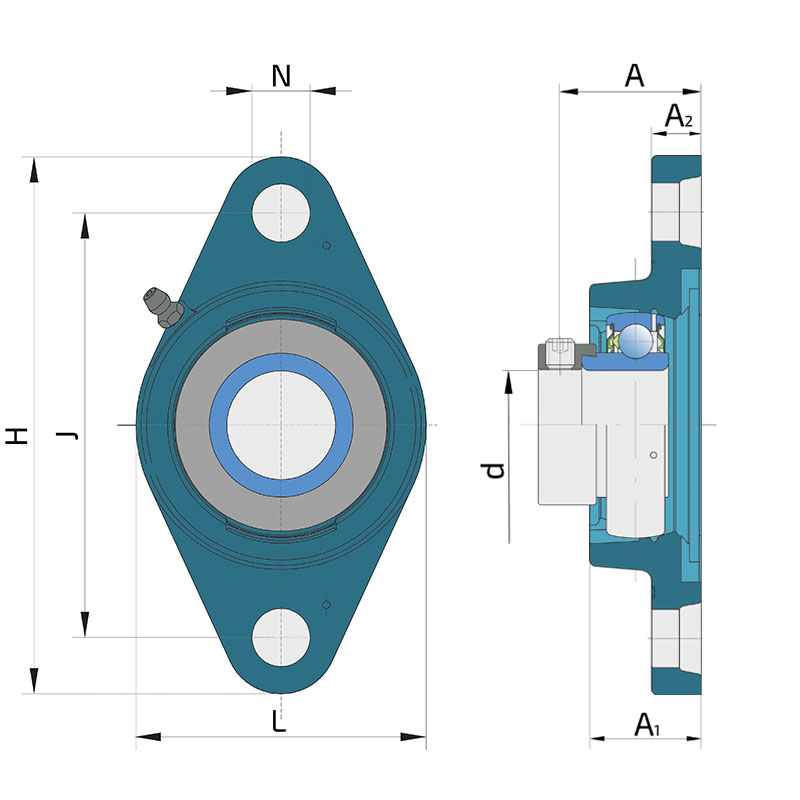

Technical specifications
| d | Bore diameter | 40 mm |
| L | Overall width | 102 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 56.7 mm |
| A1 | Total housing width | 38.5 mm |
| A2 | Housing flange thickness | 14 mm |
| H | Housing height | 171.5 mm |
| J | Distance between the holes | 143.5 mm |
| N | Diameter of attachment slot | 14H13 mm |
| kg | Mass | 1.72 kg |
| Cdyn | Dynamic load rating | 30.7 kN |
| Co | Static load rating | 19 kN |
| Pu | Fatigue load limit | 0.8 kN |
S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
Cross references
| Ростсельмаш КЗ | UYNN 208 2S-N14 |
Installations
| РОСТСЕЛЬМАШ | VECTOR модели до 2019 года |
| РОСТСЕЛЬМАШ | ACROS модели до 2018 года |
| РОСТСЕЛЬМАШ | TORUM модели до 2018 год |
| РОСТСЕЛЬМАШ | VECTOR 450 Track |
| РОСТСЕЛЬМАШ | ACROS 585 |
| РОСТСЕЛЬМАШ | ACROS 550 |
| РОСТСЕЛЬМАШ | Дон1500Б |
