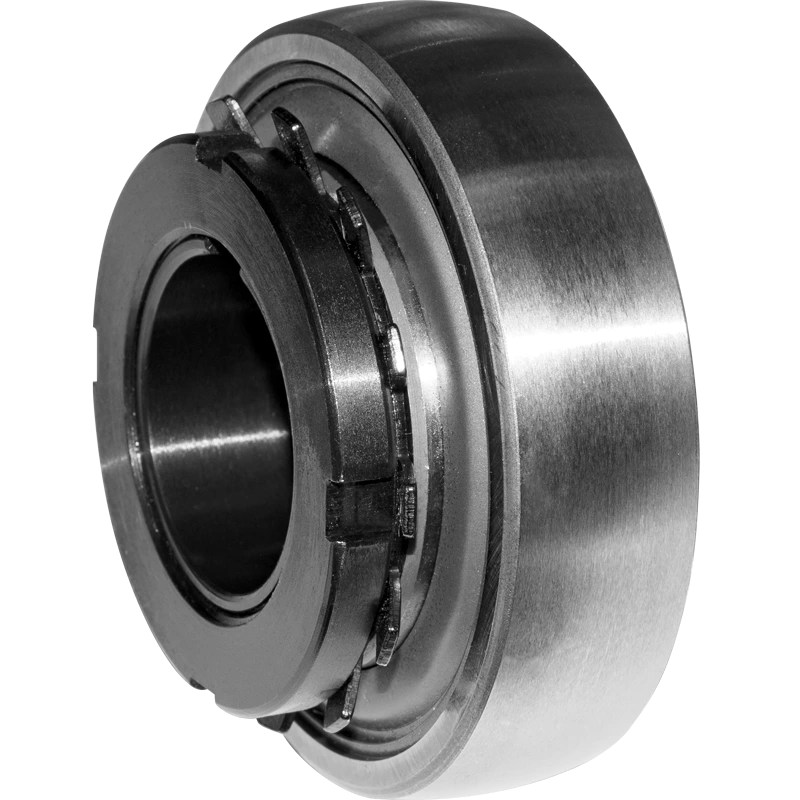

UK 205 2S+H 205

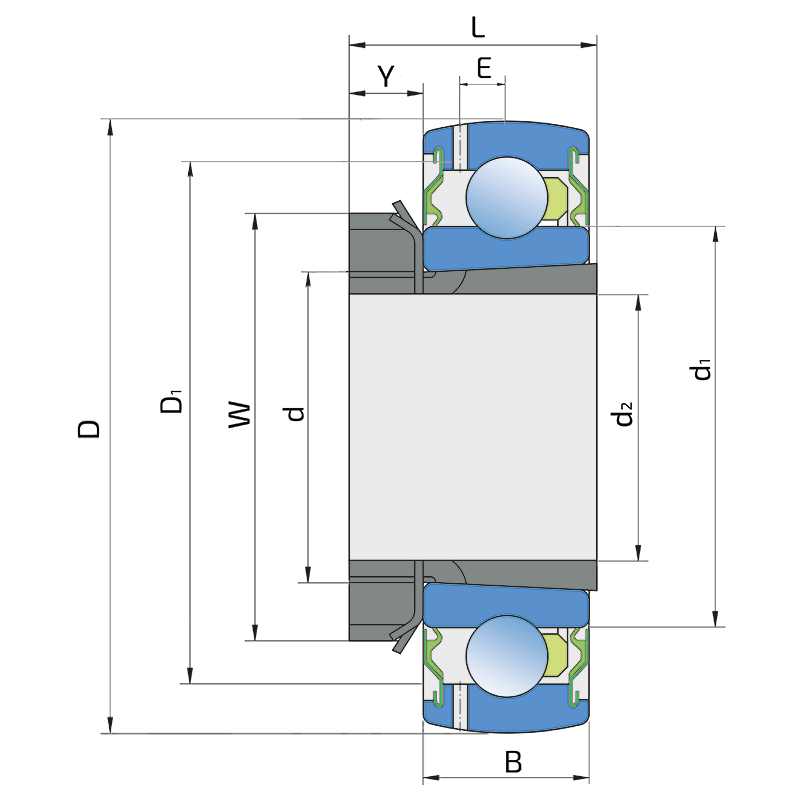

Technical specifications
| d | Bore diameter | 25 mm |
| Pu | Fatigue load limit | 0.232 kN |
| Co | Static load rating | 7.8 kN |
| Cdyn | Dynamic load rating | 14 kN |
| Y | KM nut width | 8 mm |
| W | KM nut outside diameter | 38 mm |
| L | Width adapter sleeve | 26 mm |
| D1 | Hole diameter | 44 mm |
| d2 | Bore diameter-adapter sleeve | 20 mm |
| E | Distance from raceway centre to the hole for lubrication | 4.3 mm |
| d1 | Outer diameter inner ring | 33.6 mm |
| C | Width outer ring | 15 mm |
| B | Width inner ring | 15 mm |
| D | Outside diameter | 52 mm |
| kg | Mass | 0.14 kg |
S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
