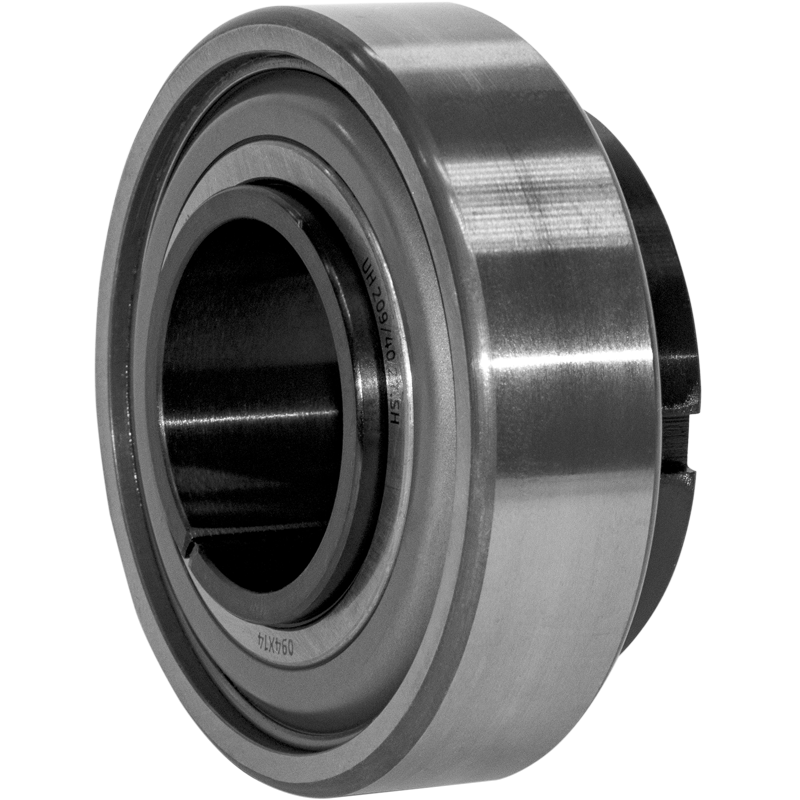

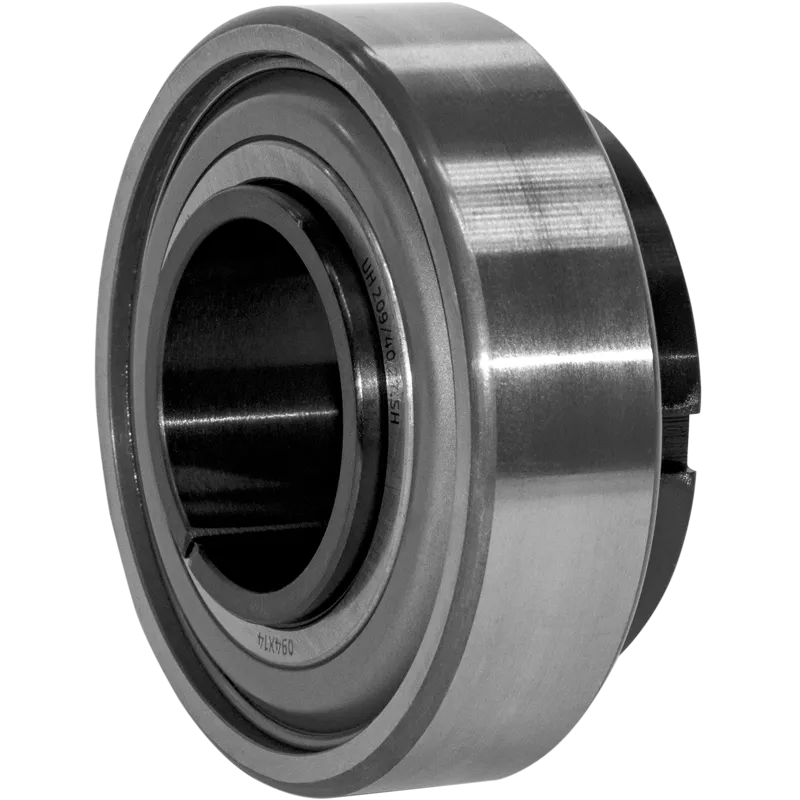

UH 209/40 2T.SH

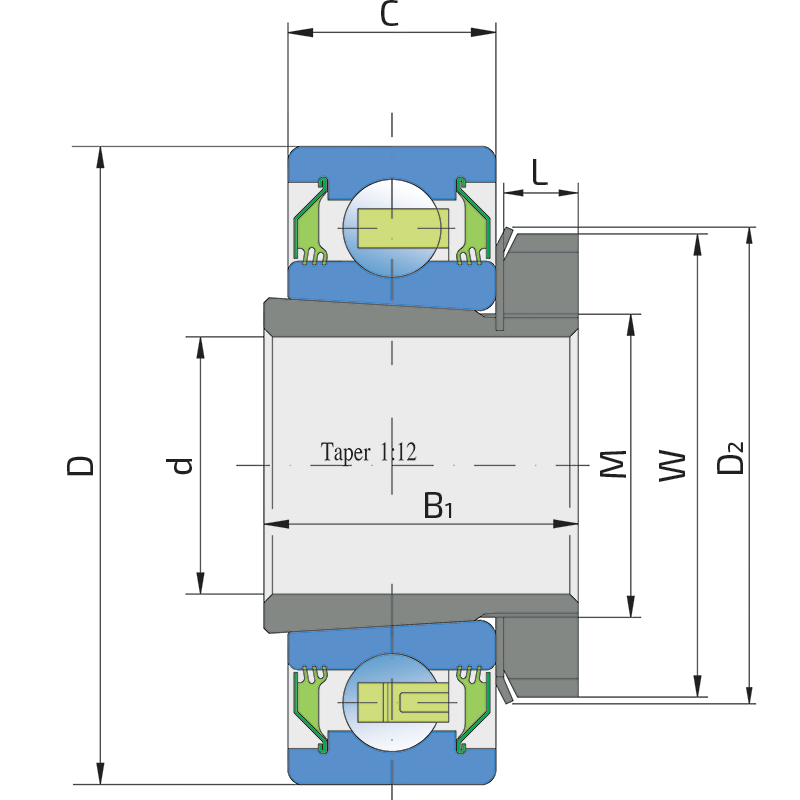

Technical specifications
| d |
Bore diameter |
40 mm |
| D |
Outside diameter |
85 mm |
| W |
KM nut outside diameter |
65 mm |
| D2 |
MB Washer outside diameter |
69 mm |
| B1 |
Width adapter sleeve |
39 mm |
| C |
Width outer ring |
23 mm |
| L |
KM nut width |
10 mm |
| M |
Thread adapter sleeve |
45x1.5 mm |
| kg |
Mass |
0.737 kg |
| Cdyn |
Dynamic load rating |
33.2 kN |
| Co |
Static load rating |
21.6 kN |
| Pu |
Fatigue load limit |
0.91 kN |

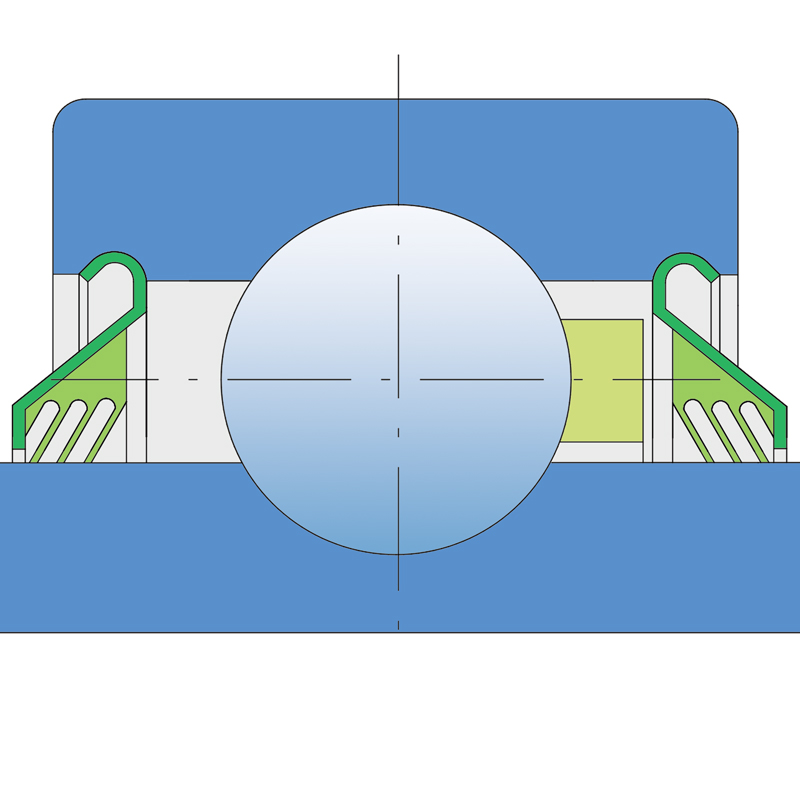

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| Ростсельмаш КЗ |
UH 209/40 2T.SH |
| Гомсельмаш |
UH 209/40 2T.SH |
