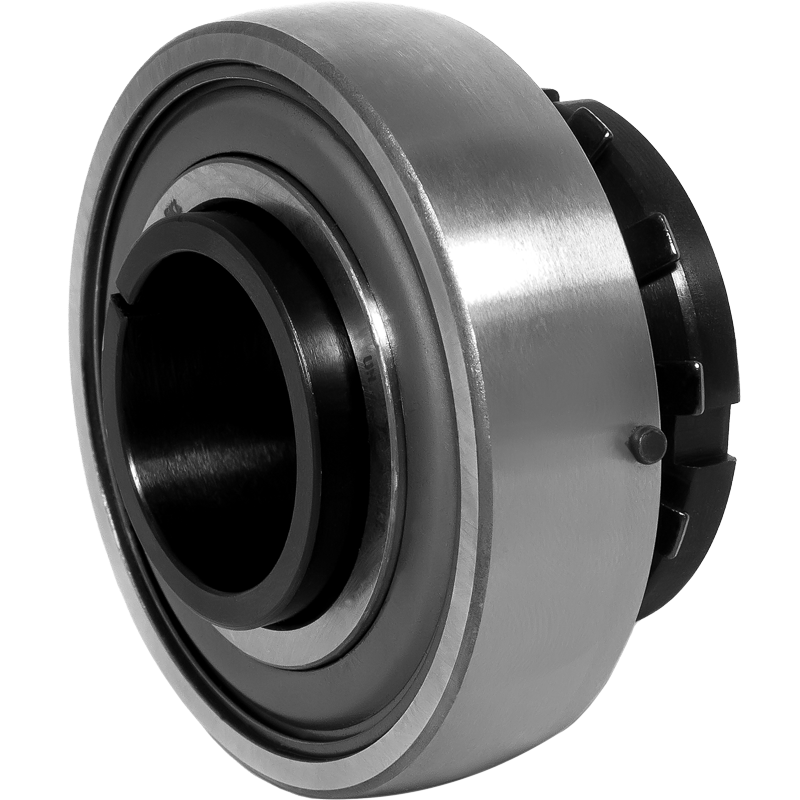

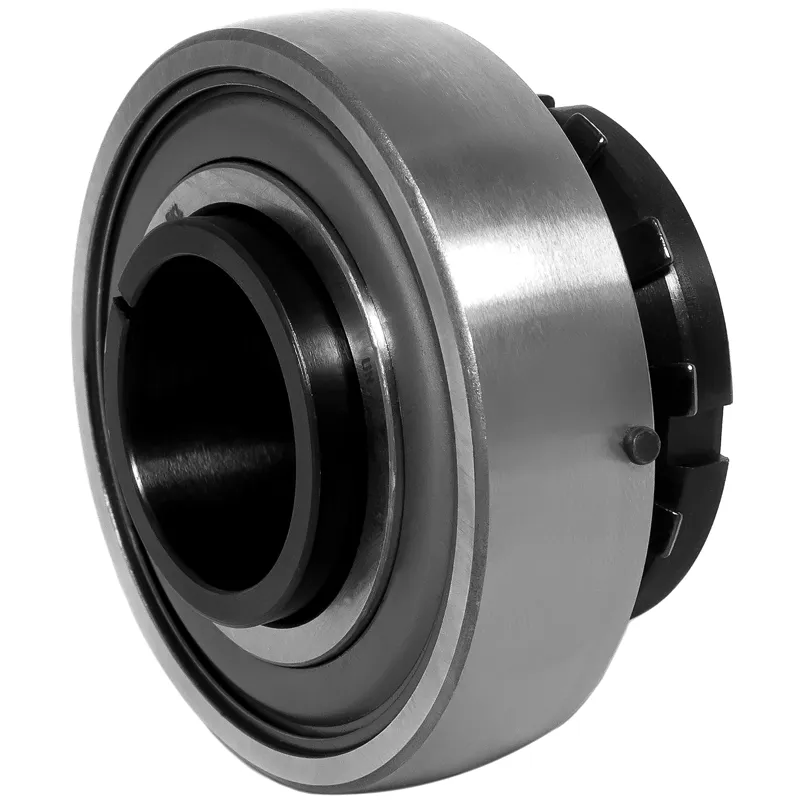

UH 209/40 2S.H.T

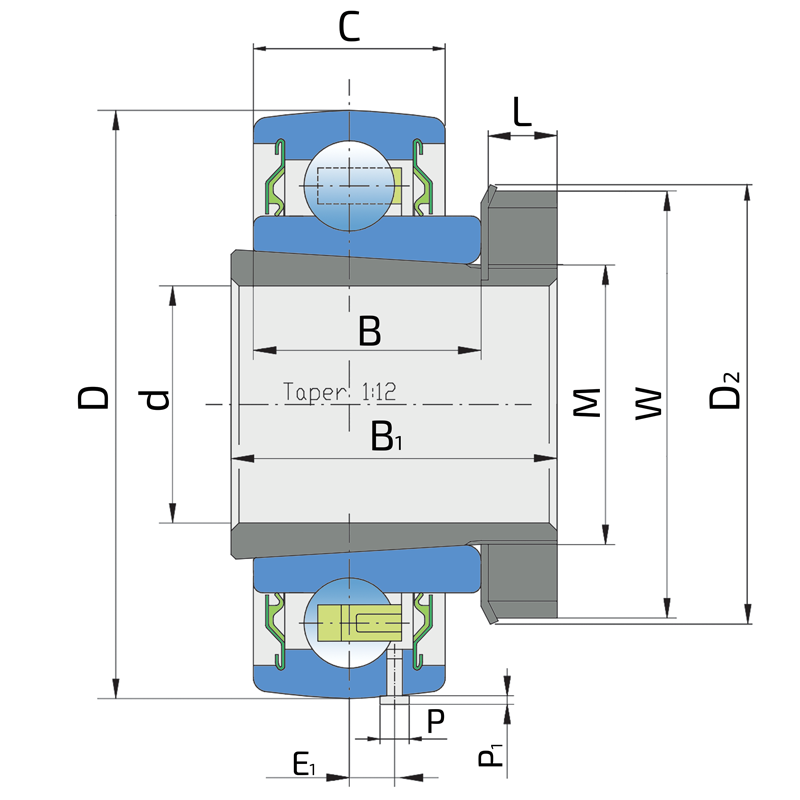

Technical specifications
| d | Bore diameter | 40 mm |
| D | Outside diameter | 85 mm |
| W | KM nut outside diameter | 65 mm |
| D2 | MB Washer outside diameter | 69 mm |
| B | Width inner ring | 23 mm |
| B1 | Width adapter sleeve | 39 mm |
| C | Width outer ring | 21 mm |
| L | KM nut width | 10 mm |
| E1 | Distance from raceway center to the stopping pin | 6.5 mm |
| M | Thread adapter sleeve | 40x1.5 mm |
| P | Stopping pin diameter | 3 mm |
| P1 | Stopping pin higth | 2 mm |
| kg | Mass | 0.64 kg |
| Cdyn | Dynamic load rating | 33.2 kN |
| Co | Static load rating | 21.6 kN |
| Pu | Fatigue load limit | 0.915 kN |

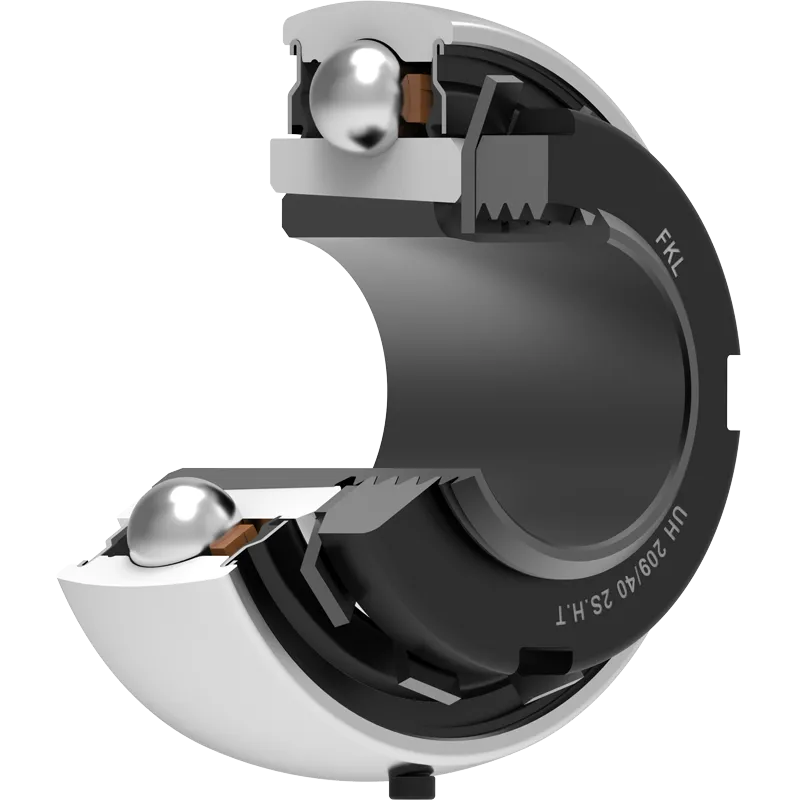

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
Cross references
| КЛЕВЕР АО | UH 209/40 2S.H.T |
| Ростсельмаш КЗ | UH 209/40 2S.H.T |
| ТСА ООО | UH 209/40 2S.H.T |
| Гомсельмаш | UH 209/40 2S.H.T |
Installations
| KLEVER | Grass Header 500D |
| KLEVER | Grass Mower 500 |
| РОСТСЕЛЬМАШ | DON 680M |
| РОСТСЕЛЬМАШ | VECTOR модели до 2019 года |
| РОСТСЕЛЬМАШ | ACROS модели до 2018 года |
| РОСТСЕЛЬМАШ | Жатка Power Stream |
| РОСТСЕЛЬМАШ | TORUM модели до 2018 года |
| РОСТСЕЛЬМАШ | Жатка роторная (РСМ-100.75.30 ЖР-4000) |
| РОСТСЕЛЬМАШ | VECTOR 450 Track |
| РОСТСЕЛЬМАШ | RSM 161 |
| РОСТСЕЛЬМАШ | ACROS 590/595 Plus |
| РОСТСЕЛЬМАШ | Дон-1500Б |
| РОСТСЕЛЬМАШ | РСМ-161.27 |
| РОСТСЕЛЬМАШ | Draper Stream 900 |
| РОСТСЕЛЬМАШ | Power Stream 500 |
| РОСТСЕЛЬМАШ | Active Stream |
| РОСТСЕЛЬМАШ | NOVA 330 |
| РОСТСЕЛЬМАШ | NOVA 340 |
| РОСТСЕЛЬМАШ | TORUM 750 |
| РОСТСЕЛЬМАШ | NOVA 320 |
| РОСТСЕЛЬМАШ | ACROS 585 |
| РОСТСЕЛЬМАШ | ACROS 550 |
| РОСТСЕЛЬМАШ | TORUM 785 |
| РОСТСЕЛЬМАШ | VECTOR 410 |
| РОСТСЕЛЬМАШ | Т500 |
| ГОМСЕЛЬМАШ | GS-5 |
| ГОМСЕЛЬМАШ | GS-10 |
| ГОМСЕЛЬМАШ | GS-12 |
| ГОМСЕЛЬМАШ | GS-2124 |
| ГОМСЕЛЬМАШ | GS400 |
| ГОМСЕЛЬМАШ | GH800 |
| ГОМСЕЛЬМАШ | GH810 |
| ГОМСЕЛЬМАШ | GR700 |
