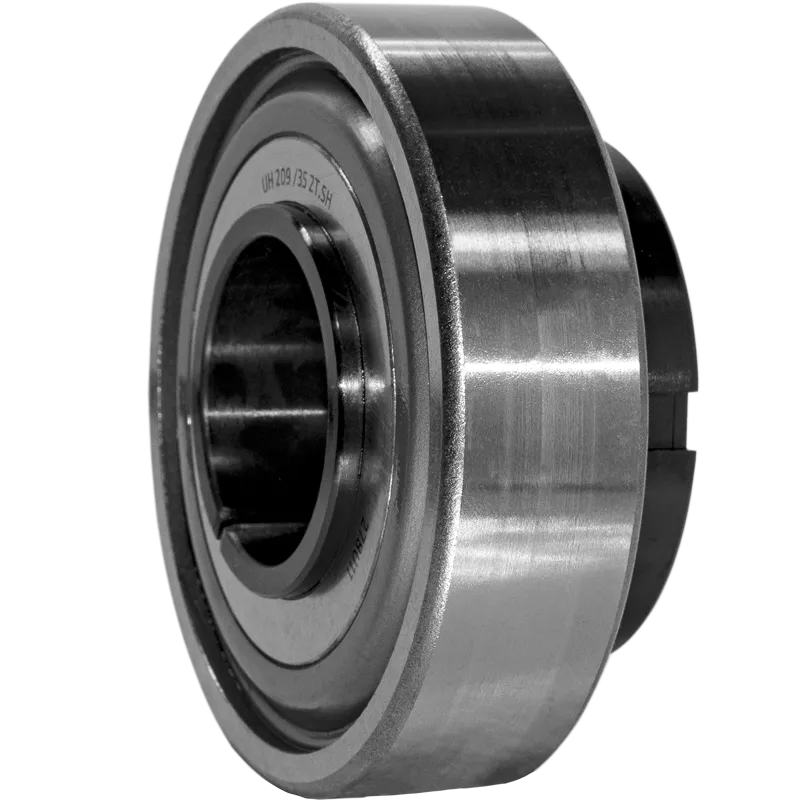

UH 209/35 2T.SH

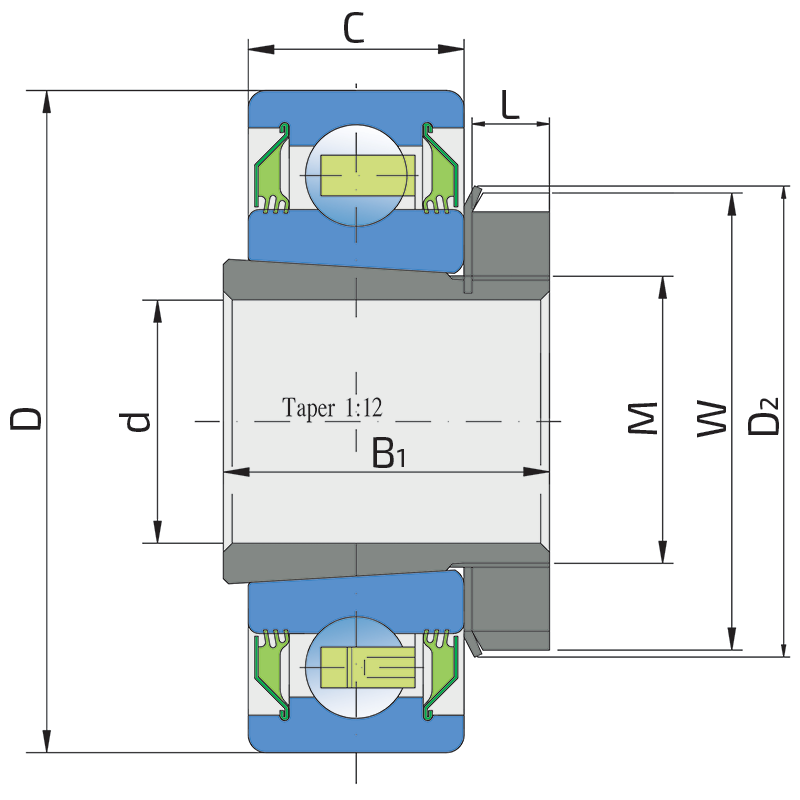

Technical specifications
| d | Bore diameter | 35 mm |
| D | Outside diameter | 85 mm |
| W | KM nut outside diameter | 58 mm |
| D2 | MB Washer outside diameter | 62 mm |
| B1 | Width adapter sleeve | 36 mm |
| C | Width outer ring | 23 mm |
| L | KM nut width | 9 mm |
| M | Thread adapter sleeve | M40x1.5 mm |
| kg | Mass | 0.7 kg |
| Cdyn | Dynamic load rating | 33.2 kN |
| Co | Static load rating | 21.6 kN |
| Pu | Fatigue load limit | 0.91 kN |

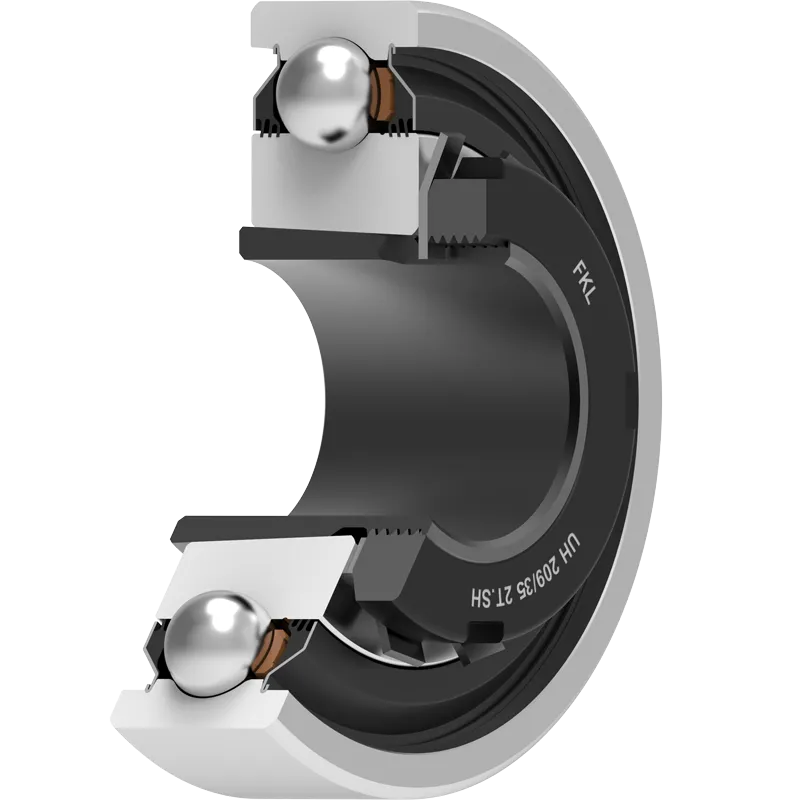

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| Ростсельмаш КЗ | UH 209/35 2T.SH |
| Гомсельмаш | UH 209/35 2T.SH |
Installations
| РОСТСЕЛЬМАШ | VECTOR модели до 2019 года |
| РОСТСЕЛЬМАШ | VECTOR 450 Track |
| РОСТСЕЛЬМАШ | VECTOR 410 |
| ГОМСЕЛЬМАШ | GS-5 |
| ГОМСЕЛЬМАШ | GS400 |
