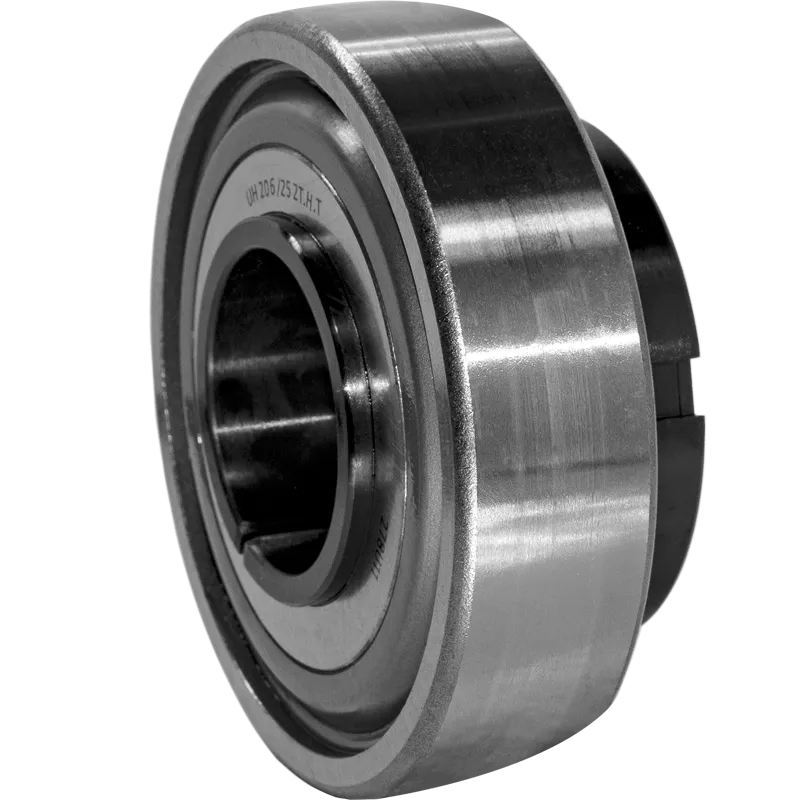

UH 206/25 2T.H.T

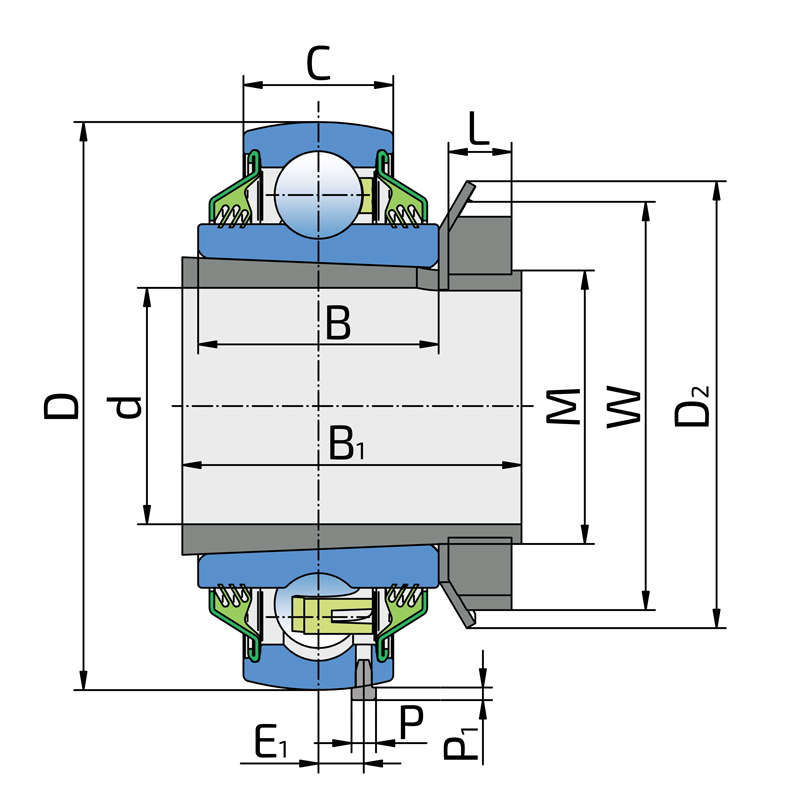

Technical specifications
| d | Bore diameter | 25 mm |
| D | Outside diameter | 62 mm |
| W | KM nut outside diameter | 45 mm |
| D2 | MB Washer outside diameter | 49 mm |
| B | Width inner ring | 28 mm |
| B1 | Width adapter sleeve | 38 mm |
| C | Width outer ring | 18 mm |
| L | KM nut width | 7 mm |
| E1 | Distance from raceway center to the stopping pin | 5 mm |
| M | Thread adapter sleeve | M30x1.5 mm |
| P | Stopping pin diameter | 3 mm |
| P1 | Stopping pin higth | 2 mm |
| kg | Mass | 0.36 kg |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 11.2 kN |
| Pu | Fatigue load limit | 0.475 kN |

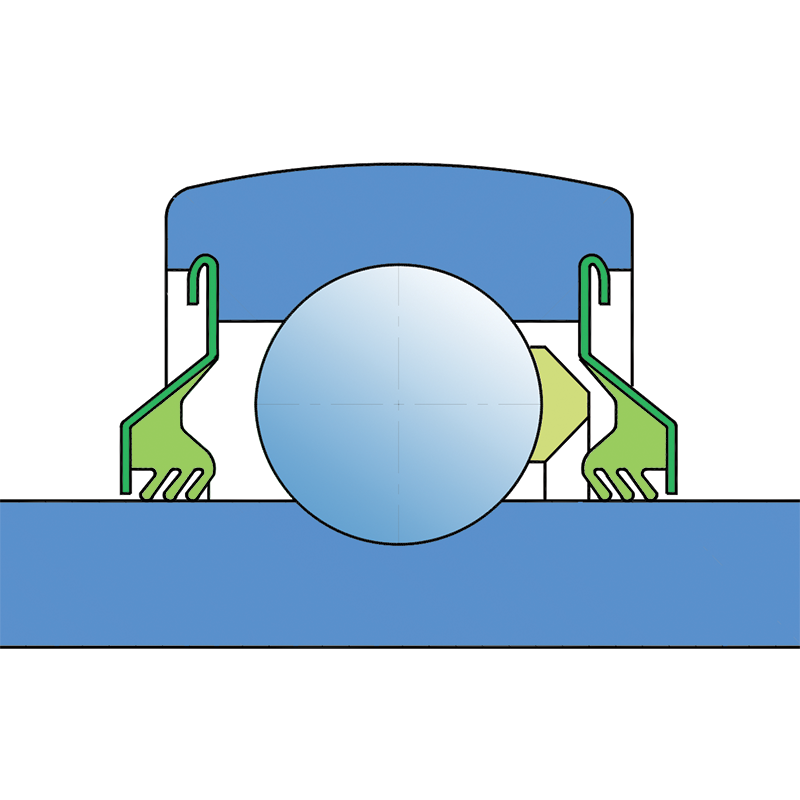

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| РОСТСЕЛЬМАШ | UH 206/25 2T.H.T |
Installations
| РОСТСЕЛЬМАШ | ECTOR 410 |
| РОСТСЕЛЬМАШ | Дон1500Б |
