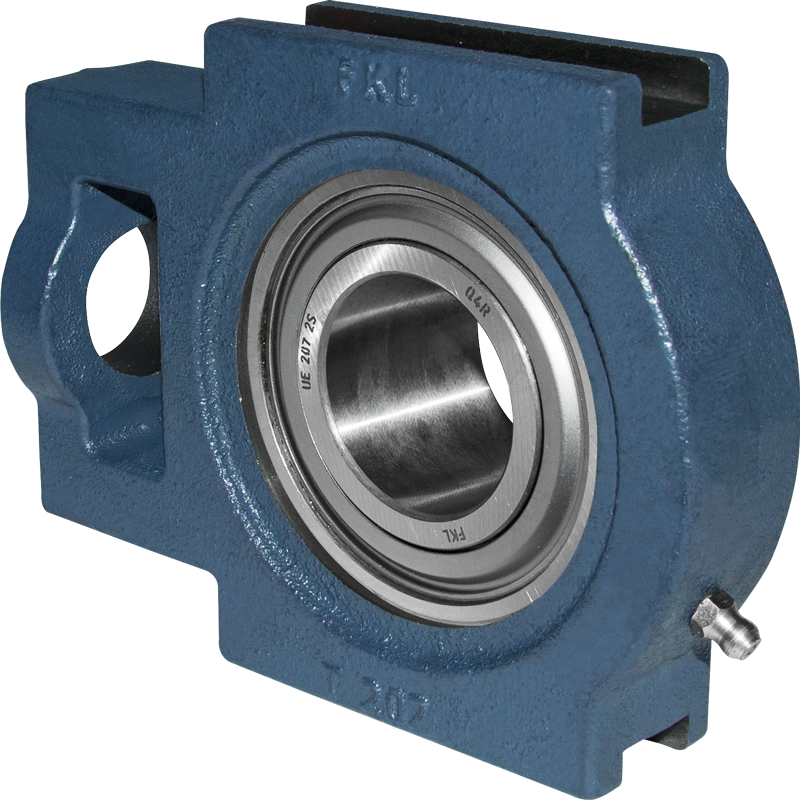

UET 207 2S

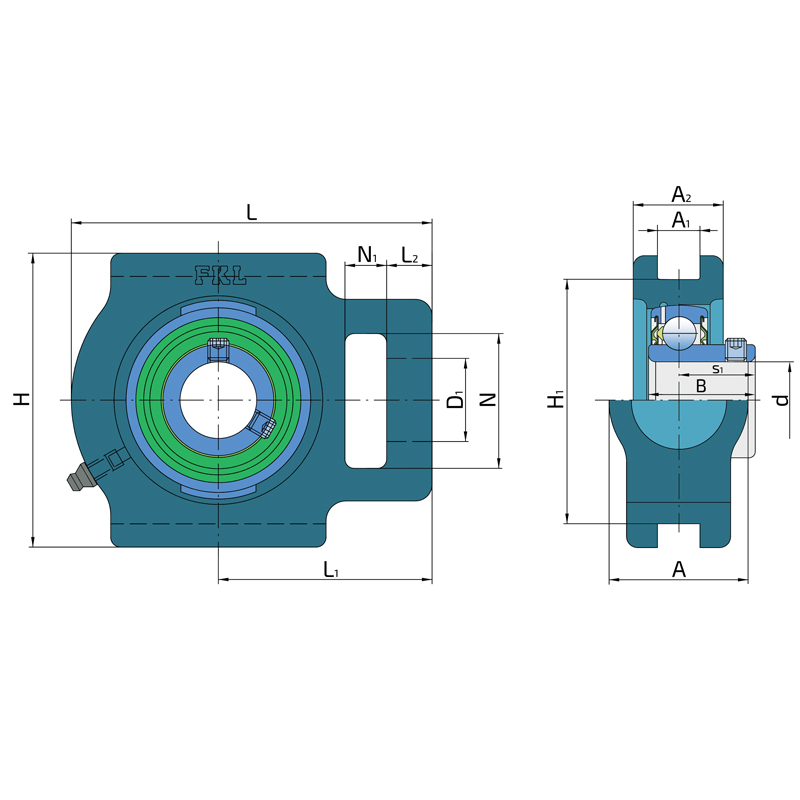

Technical specifications
| d | Bore diameter | 35 mm |
| Co | Static load rating | 15.3 kN |
| Cdyn | Dynamic load rating | 25.5 kN |
| kg | Mass | 1.5 kg |
| s1 | Distance from locking device side face to raceway centre | 23.3 mm |
| N1 | Length of attachment slot | 12 mm |
| N | Diameter of attachment slot | 38 mm |
| H1 | Distance between bottoms of location slot | 89 mm |
| H | Housing height | 103 mm |
| A2 | Housing flange thickness | 30 mm |
| A1 | Width of location slot | 13.5 mm |
| A | Overall width | 37 mm |
| L2 | Length of attachment slot | 17 mm |
| L1 | Distance from the contact surface of housing to the bearing axis | 78 mm |
| L | Overall length | 129 mm |
| D1 | Hole diameter | 22 mm |
| Pu | Fatigue load limit | 0.655 kN |

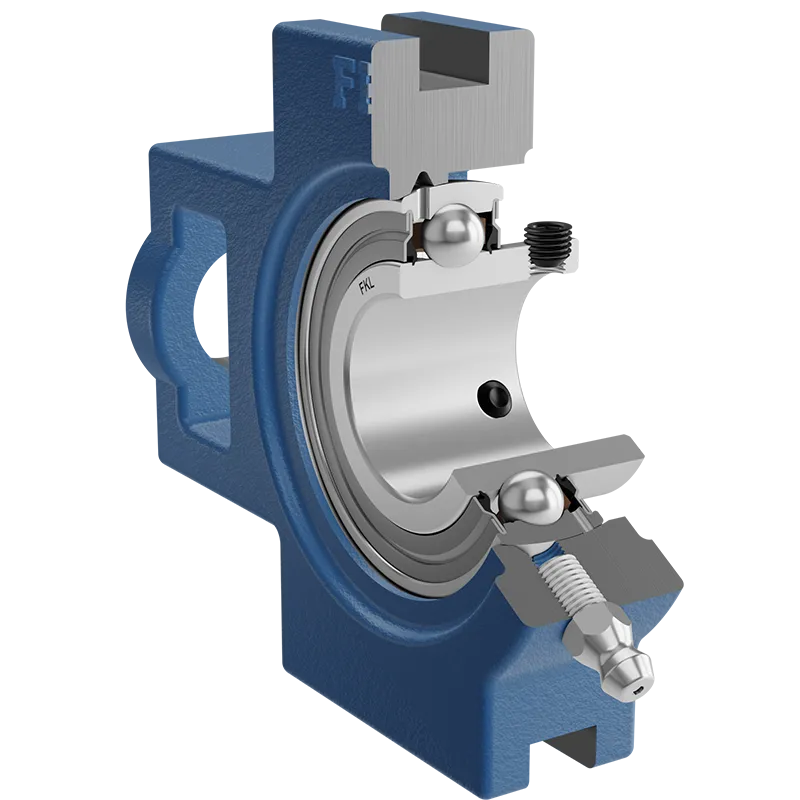

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
