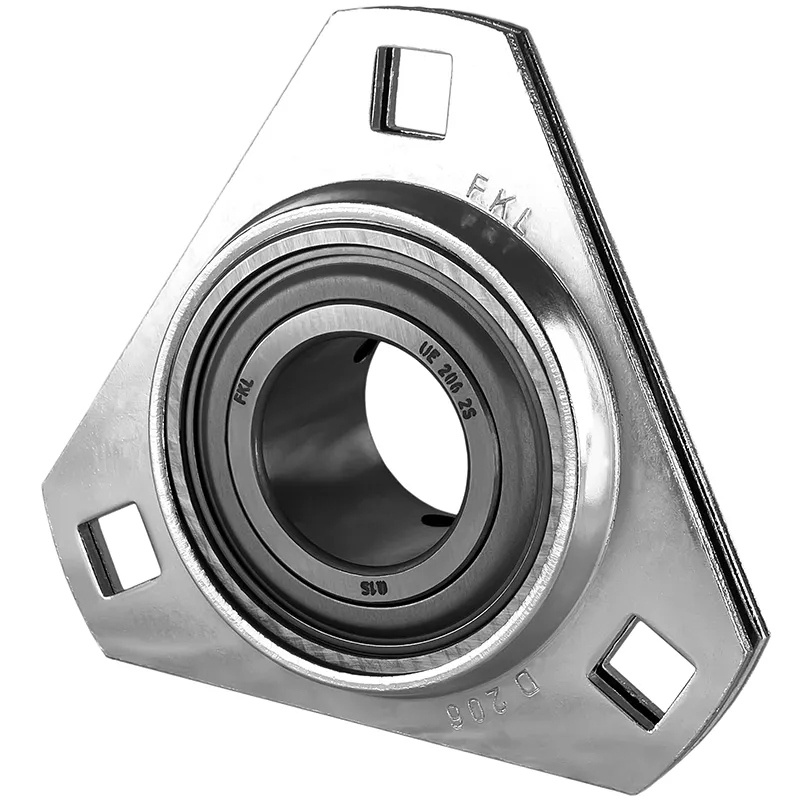

UED 206 2S

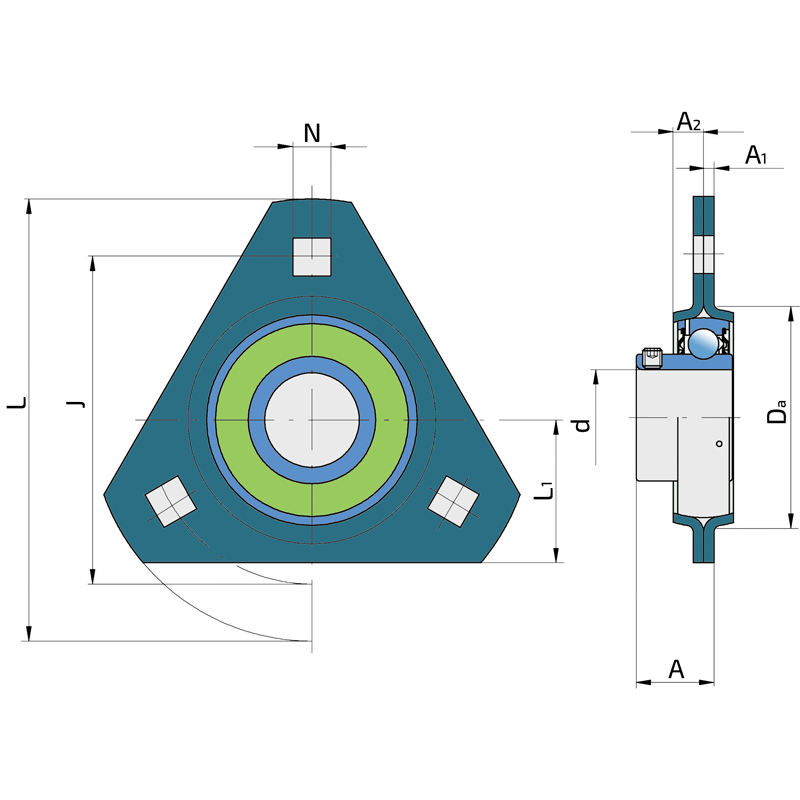

Technical specifications
| d |
Bore diameter |
30 mm |
| A |
Distance from the housing flange to the front of the inner ring of the bearing |
23.5 mm |
| A1 |
Housing flange thickness |
2.5 mm |
| A2 |
Height of the housing |
9.5 mm |
| Da |
Centering diameter |
71 mm |
| L |
Diameter of housings |
112 mm |
| L1 |
Distance from the edge to the bearing axis |
38 mm |
| J |
Distance between the holes |
90.5 mm |
| N |
Sqare hole dimension |
10.5 mm |
| Fr |
Radial load |
5 kN |
| Fa |
Axial load |
2.5 kN |
| kg |
Mass |
0.43 kg |
| Cdyn |
Dynamic load rating |
19.5 kN |
| Co |
Static load rating |
11.2 kN |
| Pu |
Fatigue load limit |
0.475 kN |

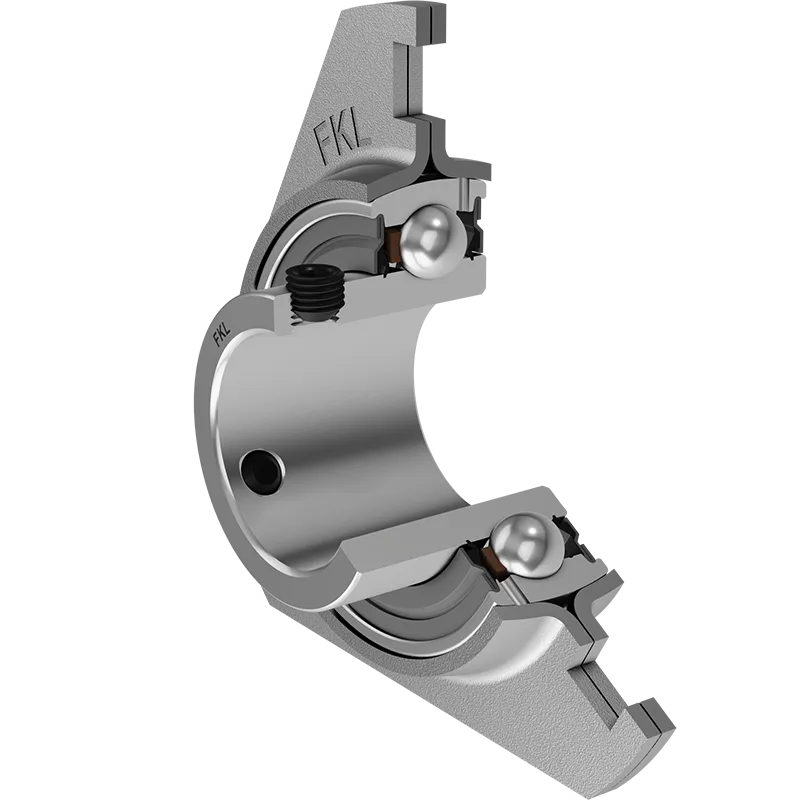

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and
the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much
better protection against the rough impurity particles. This
is very good sealing system: the sheet part protects the seal
from the soil, dust and rough particles. At the same time
makes the labyrinth with the rubber part. The rubber part
provides contact sealing which prevents penetration of finer
impurities, water, moisture, steam etc. Suitable for neutral
conditions because of the presence of the foreign materials.
It is used with the Y bearing (standard) and deep groove ball
bearings.
Cross references
| SKF |
PFD30RM |
| КЛЕВЕР АО |
UED 206 2S |
