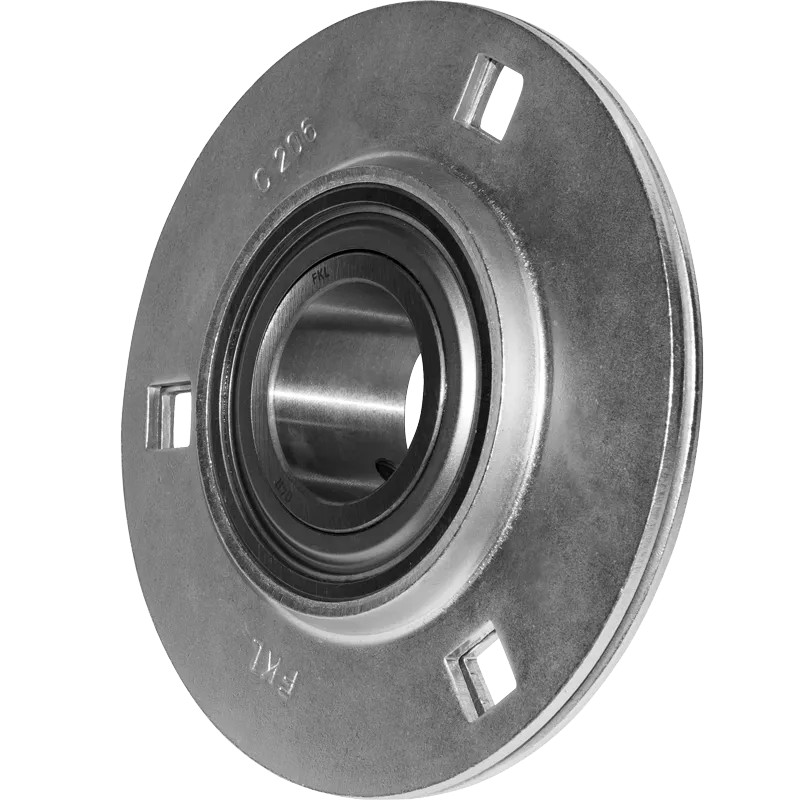

UEC 206 2S

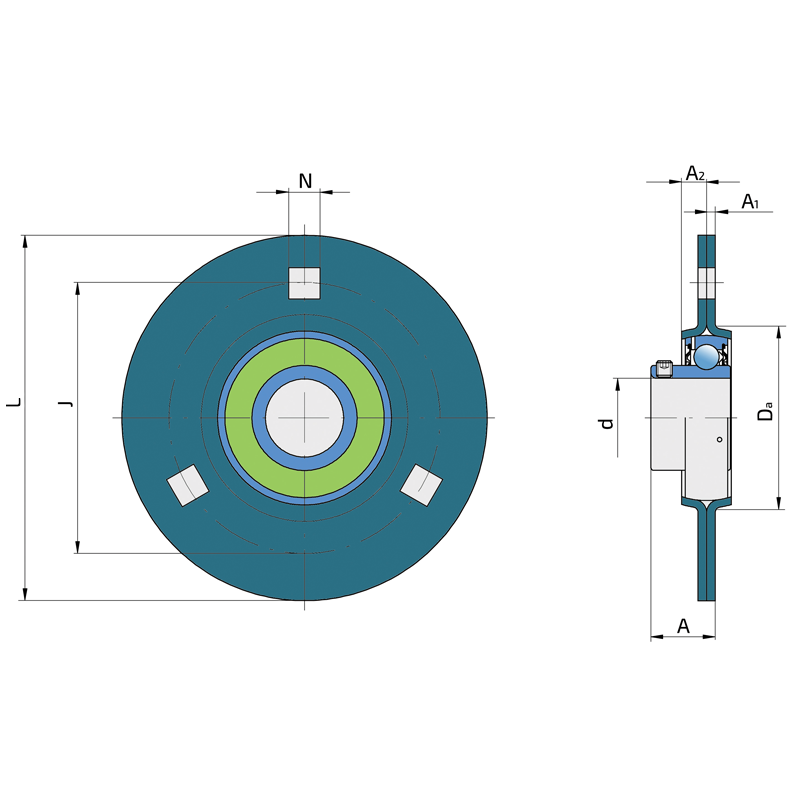

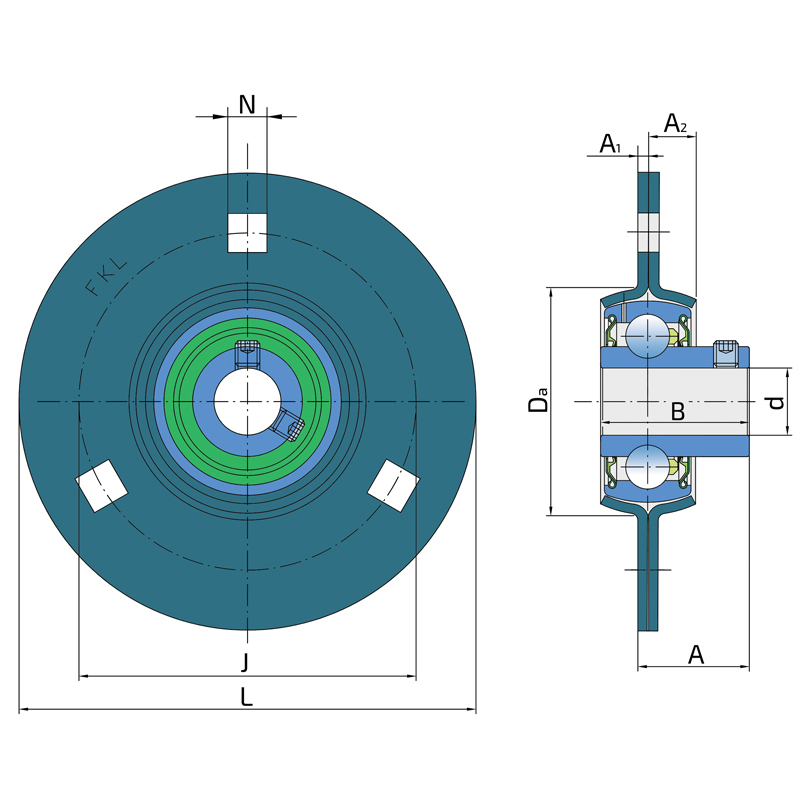

Technical specifications
| d | Bore diameter | 30 mm |
| Co | Static load rating | 11.2 kN |
| Cdyn | Dynamic load rating | 19.5 kN |
| kg | Mass | 0.52 kg |
| Fa | Axial load | 2.5 kN |
| Fr | Radial load | 5 kN |
| N | Sqare hole dimension | 10.5 mm |
| J | Pitch circle diameter | 90.5 mm |
| A2 | Height of the housing | 9.5 mm |
| A1 | Housing flange thickness | 2.5 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 23.5 mm |
| L | Diameter of housings | 112 mm |
| Da | Centering diameter | 71 mm |
| Pu | Fatigue load limit | 0.475 kN |
S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
