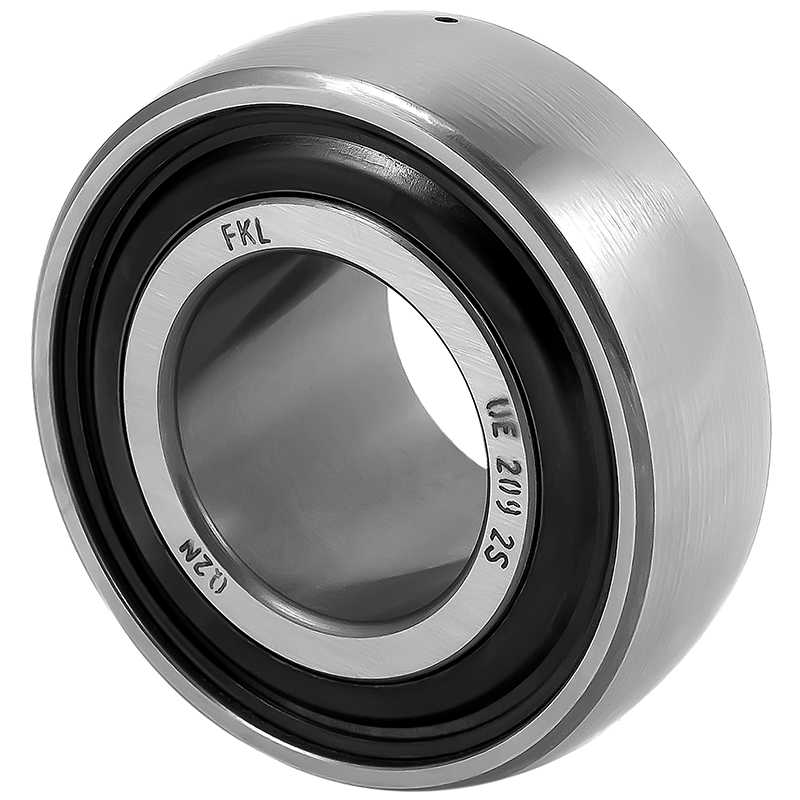

UE 209 2S

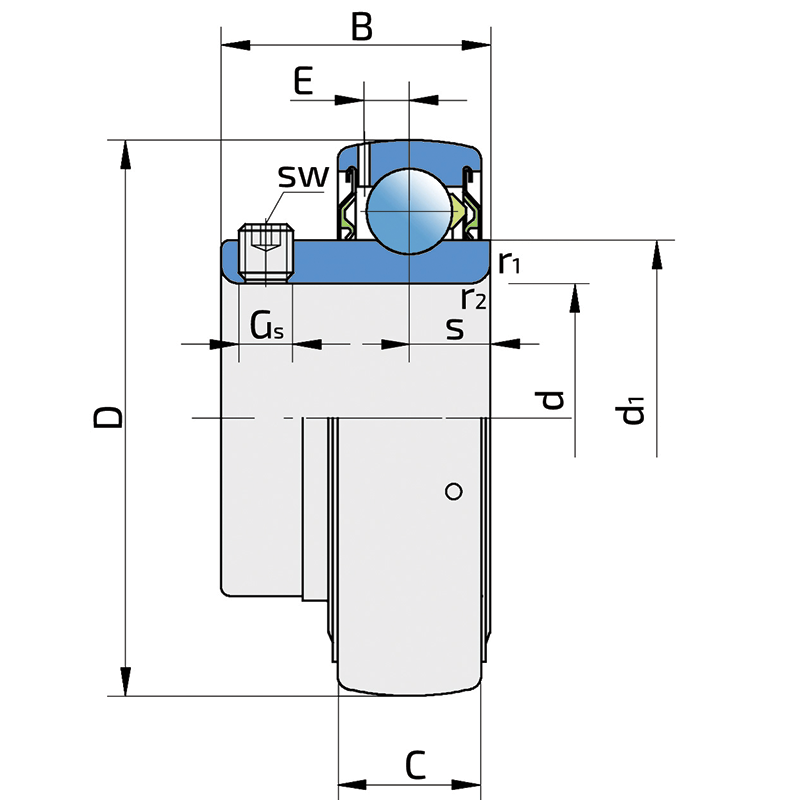

Technical specifications
| d |
Bore diameter |
45 mm |
| Pu |
Fatigue load limit |
0.915 kN |
| Co |
Static load rating |
21.6 kN |
| Cdyn |
Dynamic load rating |
33.2 kN |
| r3,4 |
Outside ring Chamfer dimension |
1.5 mm |
| r1,2 |
Inner ring Chamfer dimension |
1 mm |
| sw |
Hexagonal key size for set screw |
4 mm |
| Gs |
Set screw |
M8x1 mm |
| E |
Distance from raceway centre to the hole for lubrication |
6.1 mm |
| d1 |
Outer diameter inner ring |
56.6 mm |
| s |
Distance from inner ring side face to raceway centre |
11.2 mm |
| C |
Width outer ring |
22 mm |
| B |
Width inner ring |
37 mm |
| D |
Outside diameter |
85 mm |
| kg |
Mass |
0.48 kg |

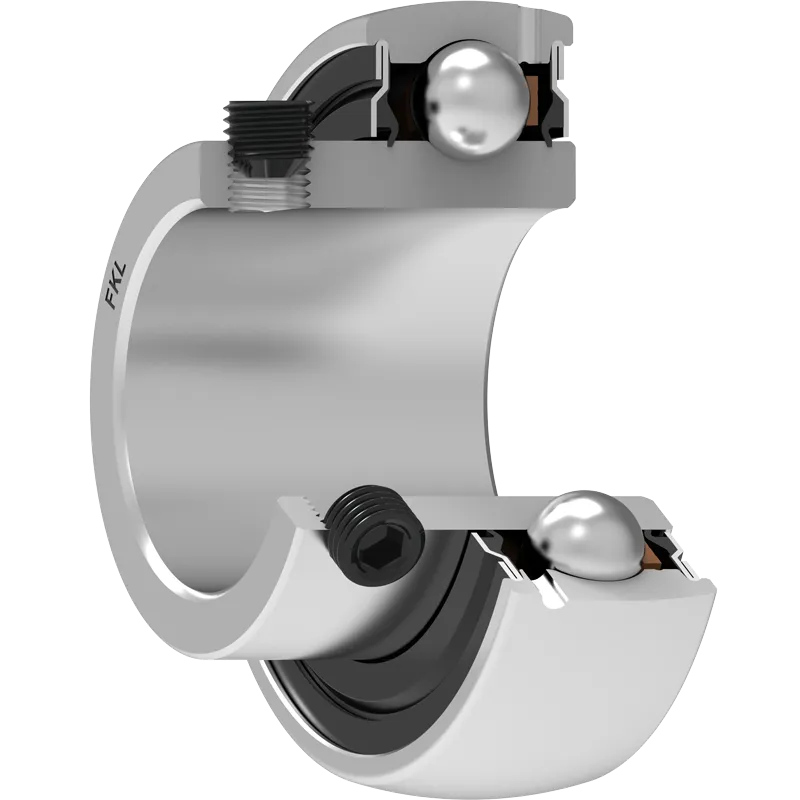

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and
the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much
better protection against the rough impurity particles. This
is very good sealing system: the sheet part protects the seal
from the soil, dust and rough particles. At the same time
makes the labyrinth with the rubber part. The rubber part
provides contact sealing which prevents penetration of finer
impurities, water, moisture, steam etc. Suitable for neutral
conditions because of the presence of the foreign materials.
It is used with the Y bearing (standard) and deep groove ball
bearings.
Cross references
| AMAZONE |
CA054 |
| SKF |
YAT209 |
| INA |
GAY45NPPB |
| NTN |
UB209 |
| NSK |
AS209 |
| SNR |
US209G2 |
| Ростсельмаш КЗ |
UE 209 2S |
