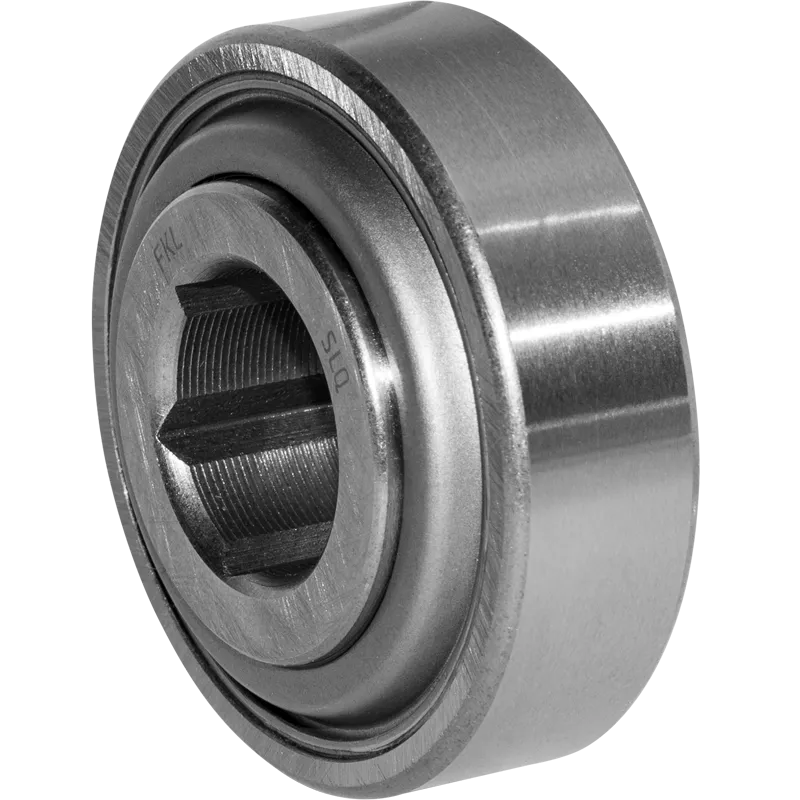

SLQ 47x17.6x20.9-2D

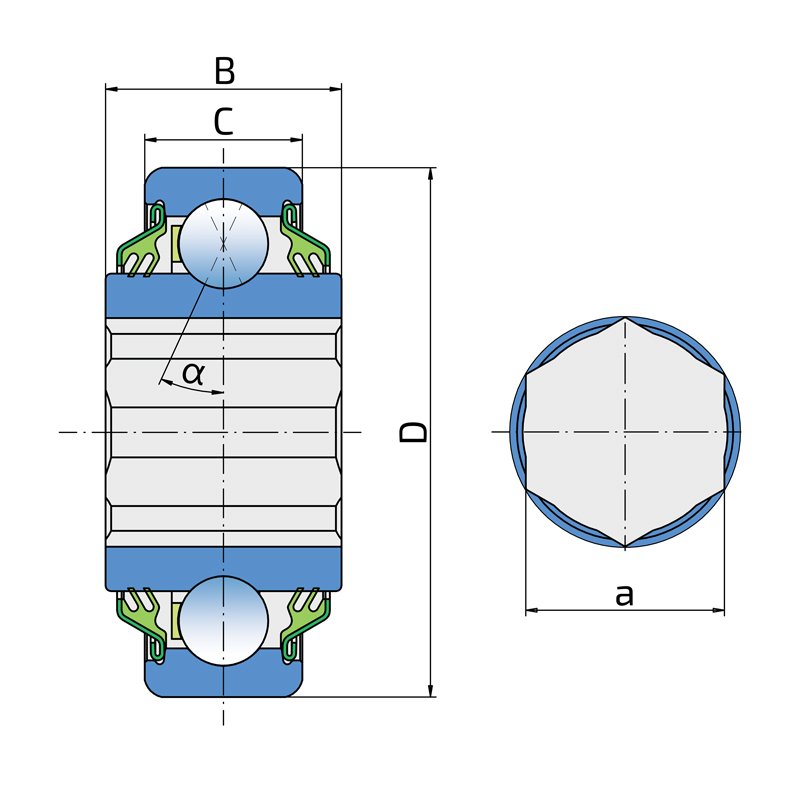

Technical specifications
| a | Size of the hexagon | 17.653 mm |
| D | Outside diameter | 47 mm |
| B | Width inner ring | 20.955 mm |
| C | Width outer ring | 14 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.13 kg |
| Cdyn | Dynamic load rating | 12.8 kN |
| Co | Static load rating | 6.2 kN |
| Pu | Fatigue load limit | 0.26 kN |

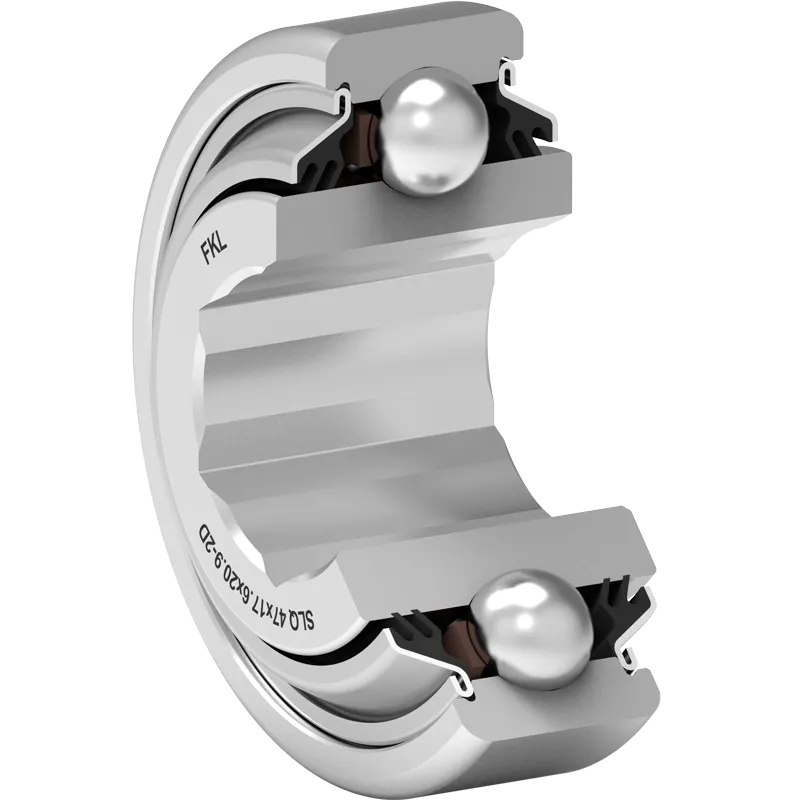

D SEAL / D SEAL (2D)
2-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| JOHN DEERE | AXE50068 |
| JOHN DEERE | AXE10322 |
| PEER | BB204-KYY2-H |
Installations
| JOHN DEERE | 625D; 630D; 630FD; 635D; 635FD; 640D; 640FD; 645 FD; 730FD; 735 FD; 740FD; 745FD; RD30F; RD40F; RD 4 |
