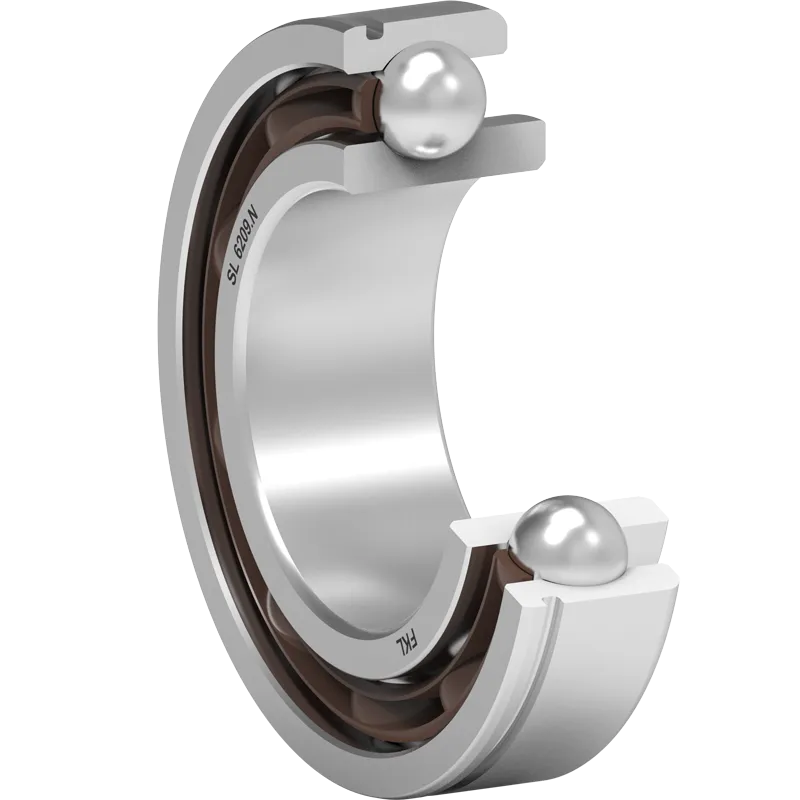

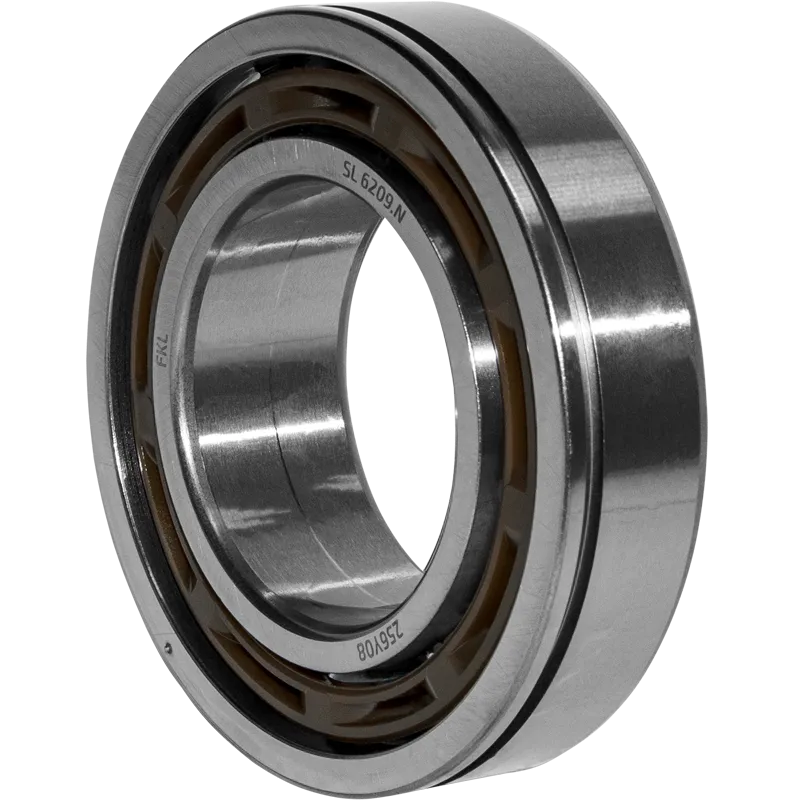

SL 6209.N

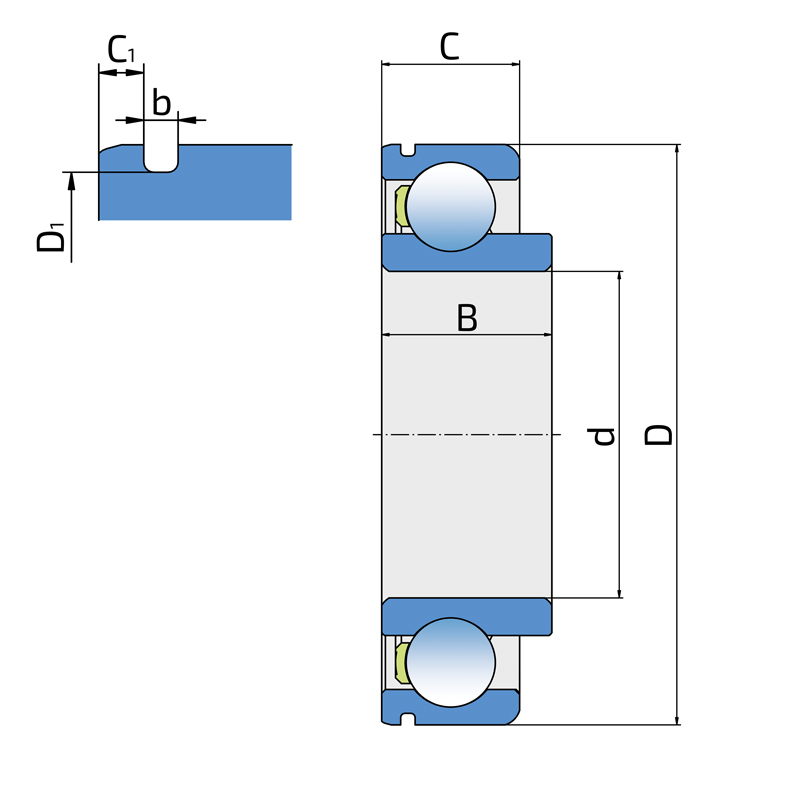

Technical specifications
| d |
Bore diameter |
45 mm |
| D |
Outside diameter |
80 mm |
| B |
Width inner ring |
23.45 mm |
| C |
Width outer ring |
19 mm |
| b |
Width of snap ring groove |
2 mm |
| C1 |
Distance from outer ring side face to snap ring groove |
2.6 mm |
| D1 |
Diameter of snap ring groove |
76.8 mm |
| kg |
Mass |
0.46 kg |
| Cdyn |
Dynamic load rating |
32.94 kN |
| Co |
Static load rating |
21.6 kN |
| Pu |
Fatigue load limit |
0.907 kN |
Cross references
| SNR |
AB44864S01 |
| SNR |
AB41275 |
| KUHN |
81104580 |
Installations
| KUHN |
FC2860/3160/3560 TLD |
Máte-li jakékoliv dotazy ohledně konkrétních výrobků FKL, kontaktujte prosím oficiálního distributora z Vašeho regionu.
