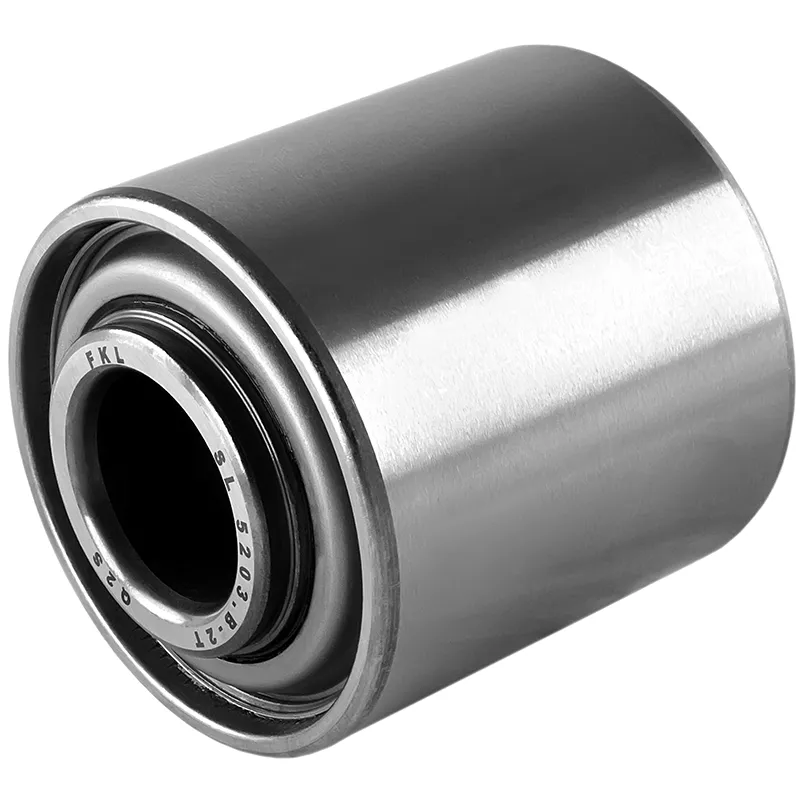

SL 5203.B-2T

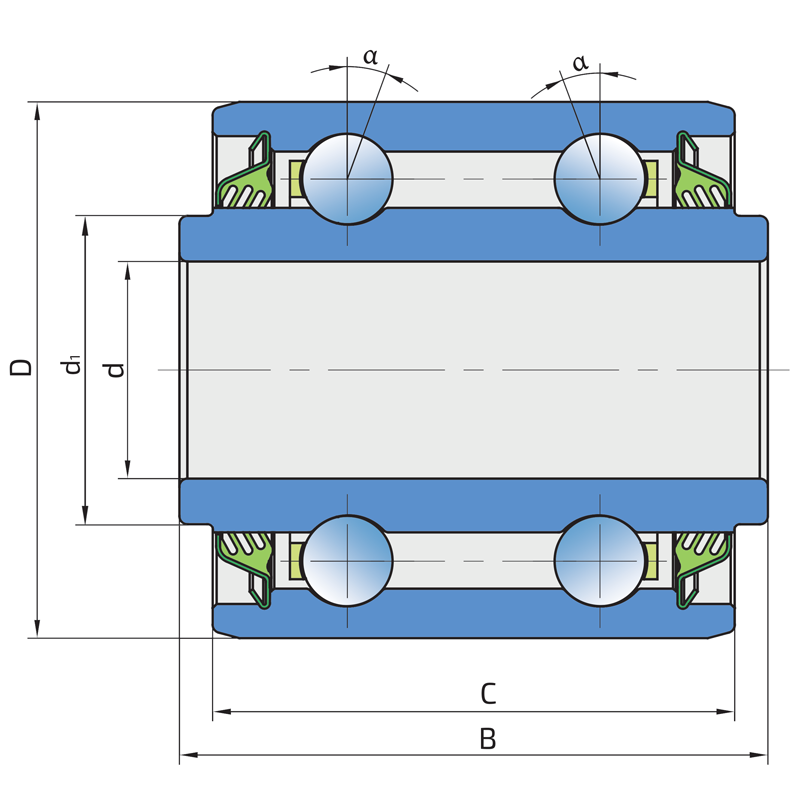

Technical specifications
| d |
Bore diameter |
16.256 mm |
| d1 |
Inner ring outside diameter |
23.5 mm |
| D |
Outside diameter |
40 mm |
| B |
Width inner ring |
44.12 mm |
| C |
Width outer ring |
39.12 mm |
| α |
Contact angle |
30 ° |
| kg |
Mass |
0.218 kg |
| Cdyn |
Dynamic load rating |
14.2 kN |
| Co |
Static load rating |
8.8 kN |
| Pu |
Fatigue load limit |
0.37 kN |

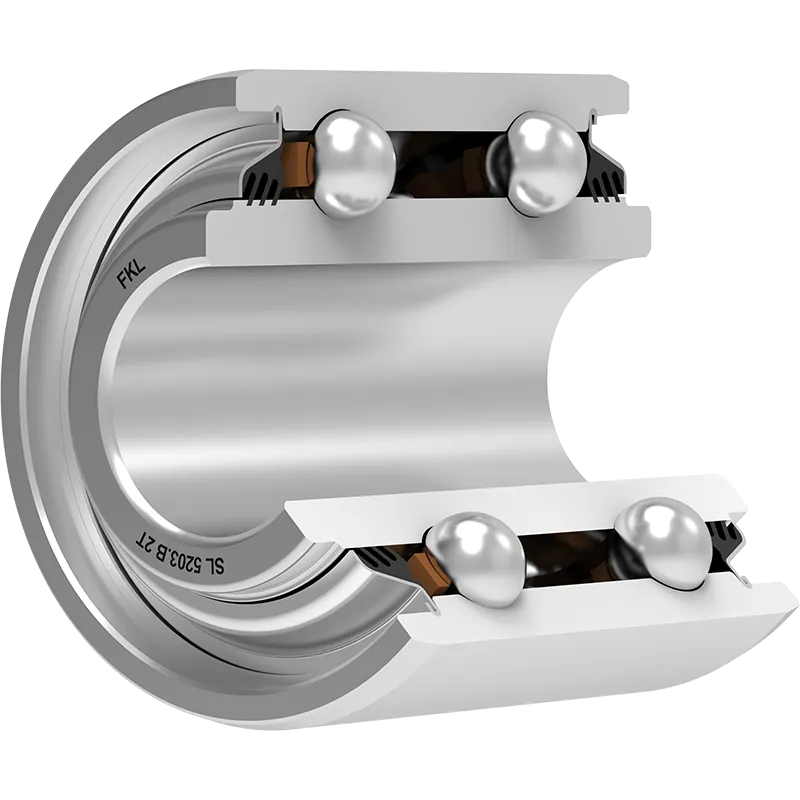

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| GASPARDO |
F04100150R |
| KRAUSE |
40-156 |
| KINZE |
GA6615 |
| KINZE |
GA6171 |
| GREAT PLAINS |
822-170C |
| CASE |
324461A1 |
| GPZ |
FA6001444 |
| MORRIS |
2200-95 |
| AMAZONE |
Y00513900 |
| SUNFLOWER |
SN7218 |
| MONOSEM |
7140A |
| CASE |
10161048 |
| JOHN DEERE |
AN212132 |
| KUHN |
81101640 |
| AMAZONE |
CA130 |
| PEER |
5203KPP2 |
| BCA |
5203VVAN |
| KOYO |
DAC164044-2RS |
| AMAZONE |
CA150 |
| CASE |
306007A1 |
| VADERSTAD |
465911 |
| MONOSEM |
900125 |
| HORSCH |
310926 |
| KVERNELAND |
AC676096 |
| TIMKEN |
5203 KYY2 |
| OTICO |
SL 5203.B-2T |
| AGUIRRE |
SL 5203.B-2T |
| VIRKAR |
SL 5203.B-2T |
| LARGO |
SL 5203.B-2T |
| Грязинский культиваторный завод ПАО |
SL 5203.B-2T |
| CNH |
47577193 |
| HORSCH |
240216 |
| KOYO |
DAC1640442RSLCS16 |
| KINZE |
GA5641 |
| KOYO |
DAC 164044-2RS |
| FAFNIR |
5203KYY2 |
| KABAT |
5203KYY2 |
Installations
| KINZE |
SERIES 3000 |
| VADERSTAD |
SEED COULTER TPL 12-24 ROW UNIT |
| MONOSEM |
MECA |
| MONOSEM |
NC |
| MONOSEM |
NG |
| MONOSEM |
NG PLUS 2 |
| MONOSEM |
NG PLUS 4 |
| MONOSEM |
NX |
| GASPARDO |
Manta |
| GASPARDO |
Romina |
| KUHN |
BTF 3000 |
| KUHN |
BTF 3500 |
| KUHN |
BTF 4000 |
| KUHN |
BDSR 9030 |
| KUHN |
Moduliner HR |
| KUHN |
Megant 400 |
| KUHN |
Megant 450 |
| KUHN |
Megant 480 |
| KUHN |
Megant 500 |
| KUHN |
Espro 3000 |
| KUHN |
Maxima |
| KUHN |
Sitera 3000 |
| KUHN |
Sitera 3500 |
| KUHN |
Sitera 4000 |
| KUHN |
Premia 9000 RC |
| KUHN |
Combiliner NC |
| KUHN |
Venta LC 3000 |
| KUHN |
Venta LC3500 |
| KUHN |
Venta LC 4000 |
| KUHN |
NCR4500 |
| KUHN |
NCR500 |
| KINZE |
Series 2000 |
| KINZE |
Series 3005 |
| KINZE |
Series 4000 |
| KINZE |
Series 4005 |
| JOHN DEERE |
7200-7300 |
| JOHN DEERE |
1700 |
| JOHN DEERE |
DB planters |
| JOHN DEERE |
DR planters |
| CASE |
1200 series |
| CASE |
2000 series |
| CASE |
SDX30 |
| CASE |
SDX40 |
