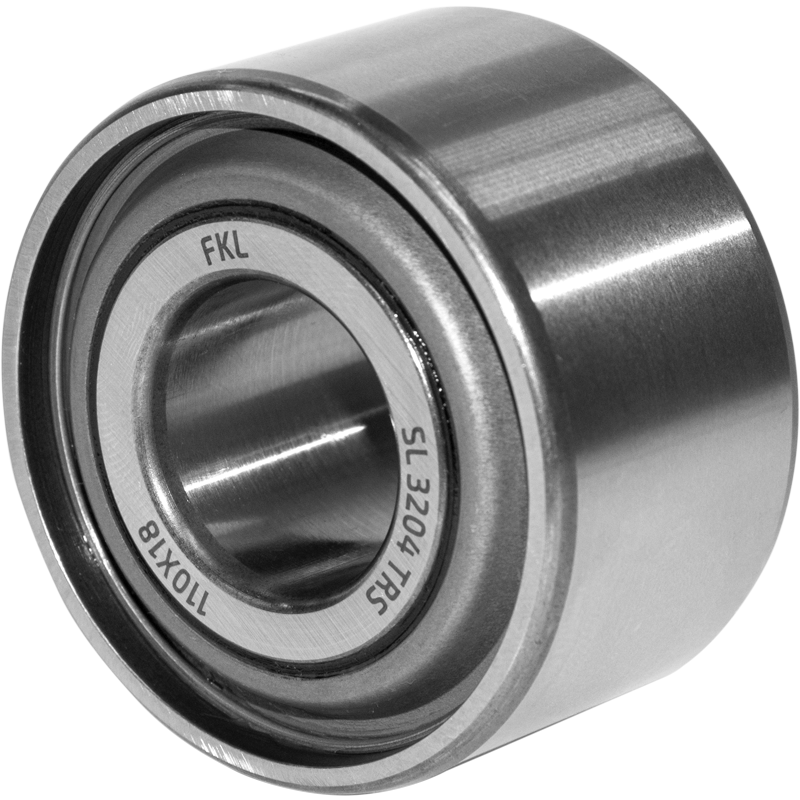

SL 3204 TRS

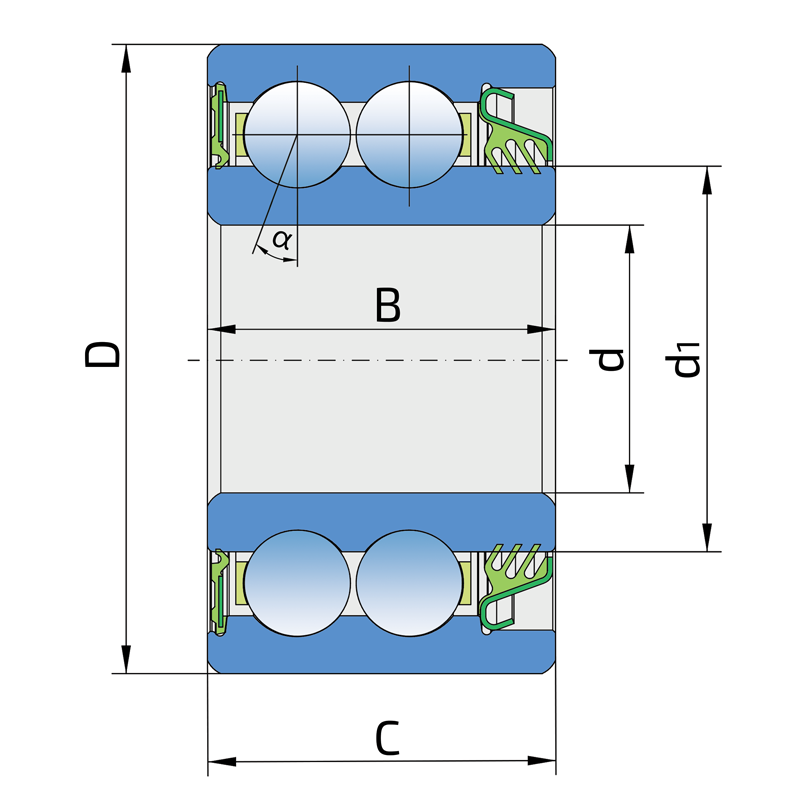

Technical specifications
| d | Bore diameter | 20 mm |
| d1 | Inner ring outside diameter | 28.8 mm |
| D | Outside diameter | 47 mm |
| C | Width outer ring | 26 mm |
| B | Width inner ring | 26 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.196 kg |
| Cdyn | Dynamic load rating | 18.8 kN |
| Co | Static load rating | 12.6 kN |
| Pu | Fatigue load limit | 0.529 kN |

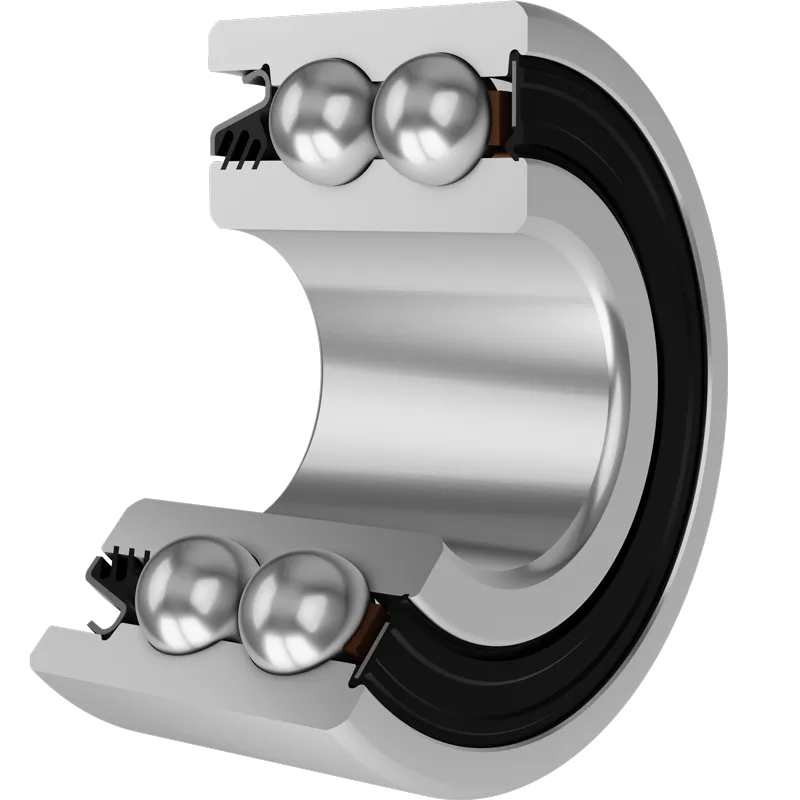

RS SEAL / T SEAL
RS seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
Cross references
| NSK | 3204BRSRWDRB26TNG |
| SKF | BB2-3500-A |
| SKF | BB2-3500 |
| RHP | 3204 BRSRWDRB26TNH |
| RBF | PN 60052 |
| NSK | 3204 BRSRWDRB26TNH |
