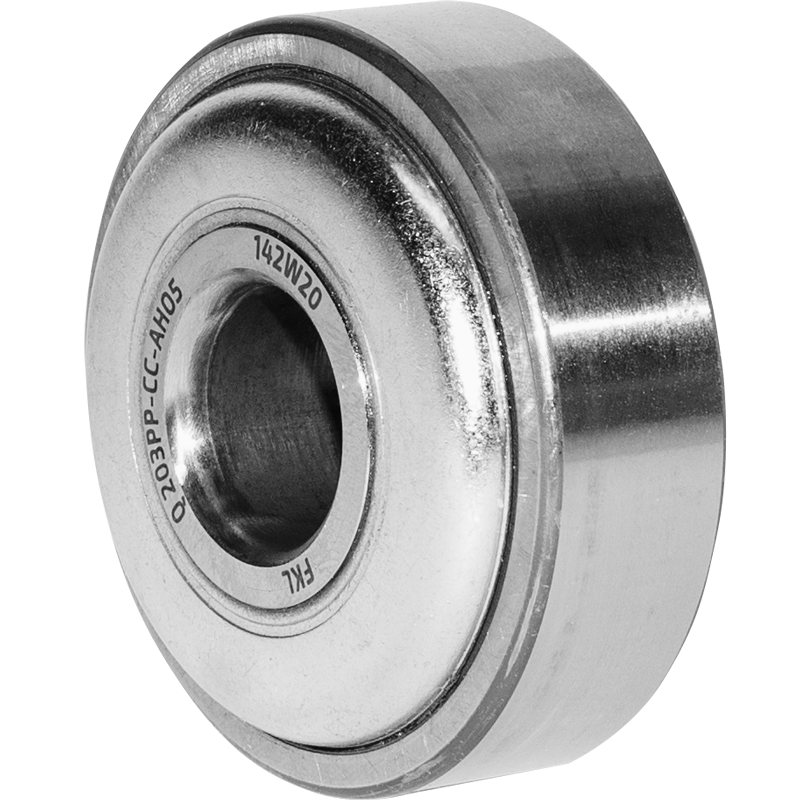

Q203PP-CC.AH05

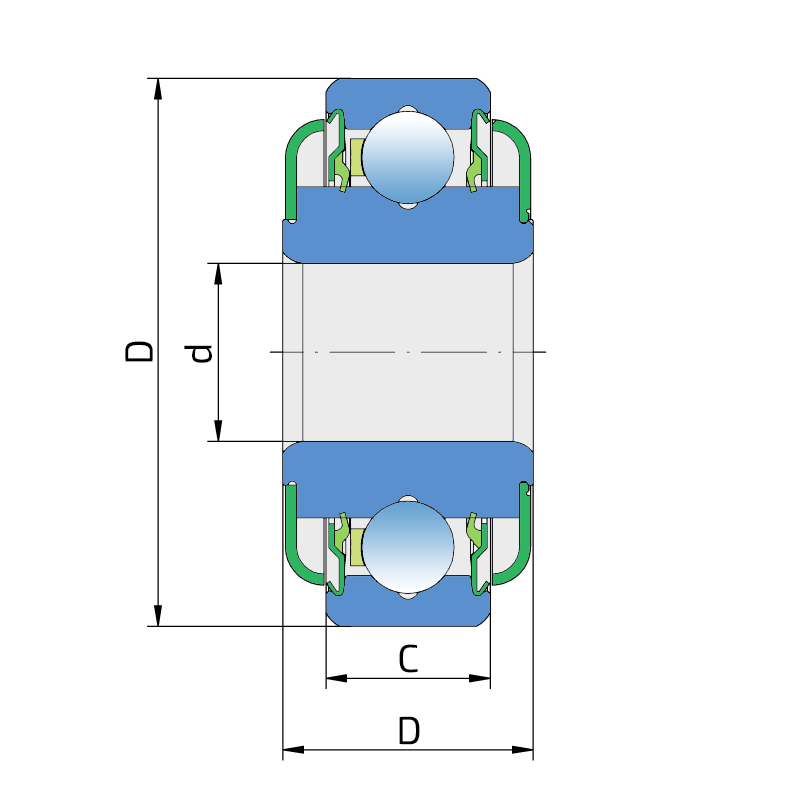

Technical specifications
| d |
Bore diameter |
13 mm |
| D |
Outside diameter |
40 mm |
| B |
Width inner ring |
18.3 mm |
| C |
Width outer ring |
12 mm |
| kg |
Mass |
0.092 kg |
| Cdyn |
Dynamic load rating |
15 kN |
| Co |
Static load rating |
9.2 kN |
| Pu |
Fatigue load limit |
0.386 kN |

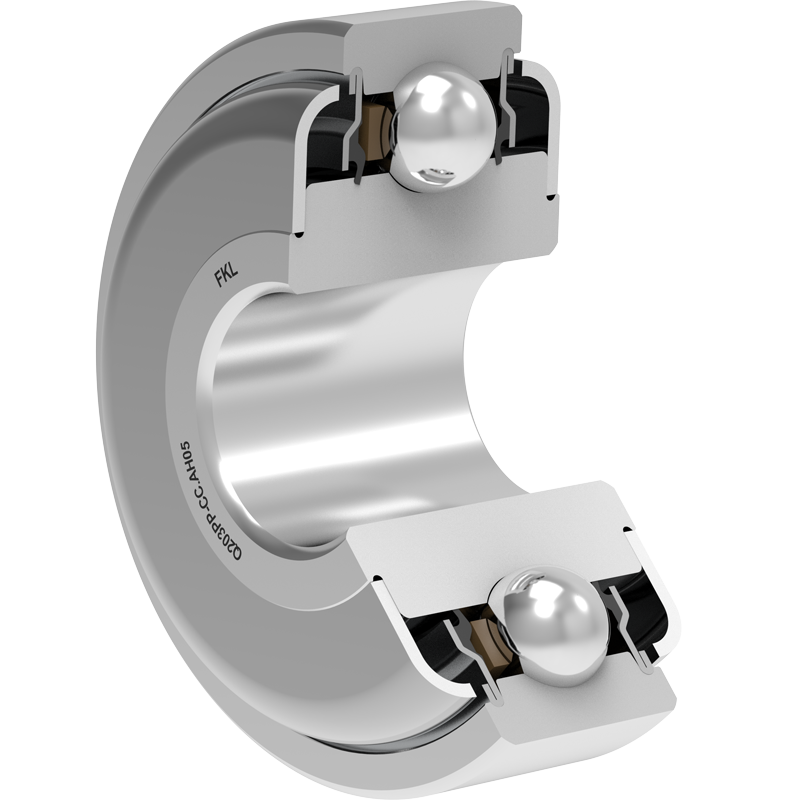

PROTECTIVE RING + S SEAL / S SEAL + PROTECTIVE RING
Dual sealing. Protective ring placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S seal but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters.
