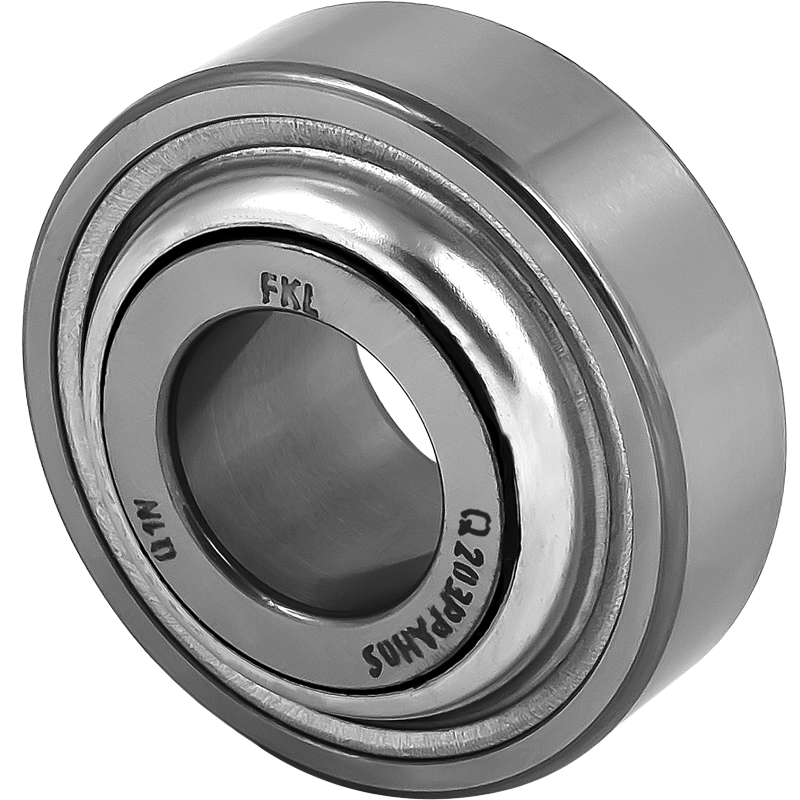

Q 203PP.AH05

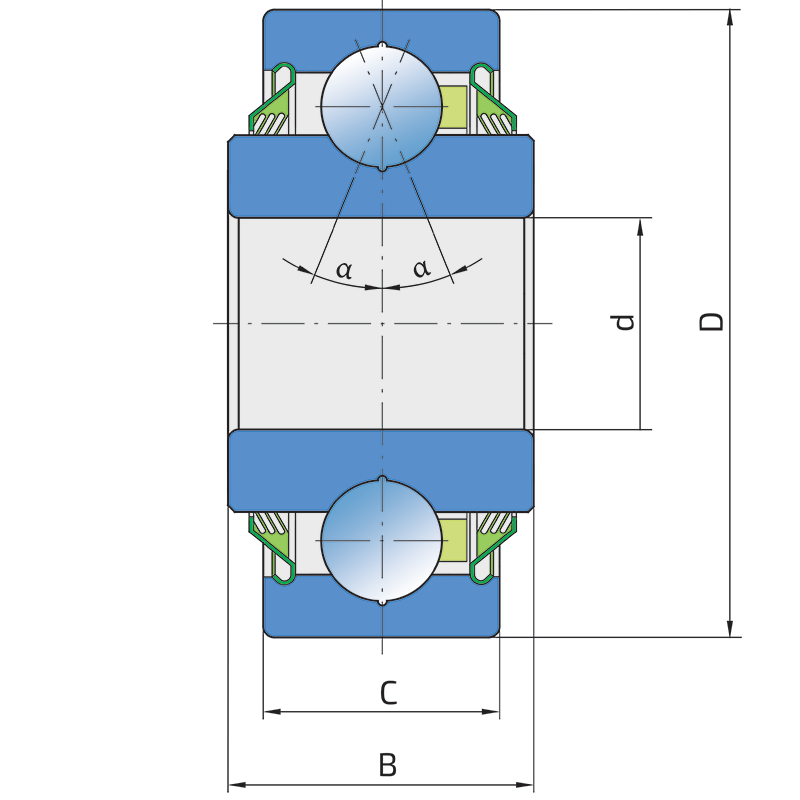

Technical specifications
| d |
Bore diameter |
13.081 mm |
| D |
Outside diameter |
40 mm |
| B |
Width inner ring |
18.29 mm |
| C |
D-shape hole cut out dimension |
12 mm |
| α |
Contact angle |
25 ° |
| kg |
Mass |
0.091 kg |
| Cdyn |
Dynamic load rating |
15.6 kN |
| Co |
Static load rating |
10 kN |
| Pu |
Fatigue load limit |
0.42 kN |

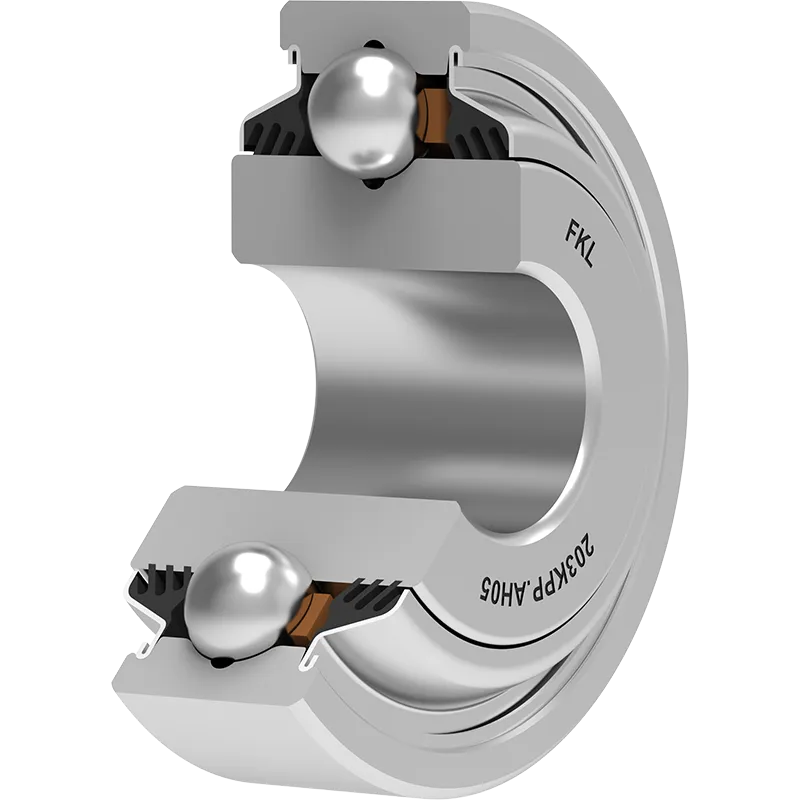

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| AMAZONE |
CA095 |
| LEMKEN |
3199369 |
| PEER |
BB203KRR5 |
| TIMKEN |
BB203KRR5 |
| INA |
Q203KRR-CC.AH01 |
