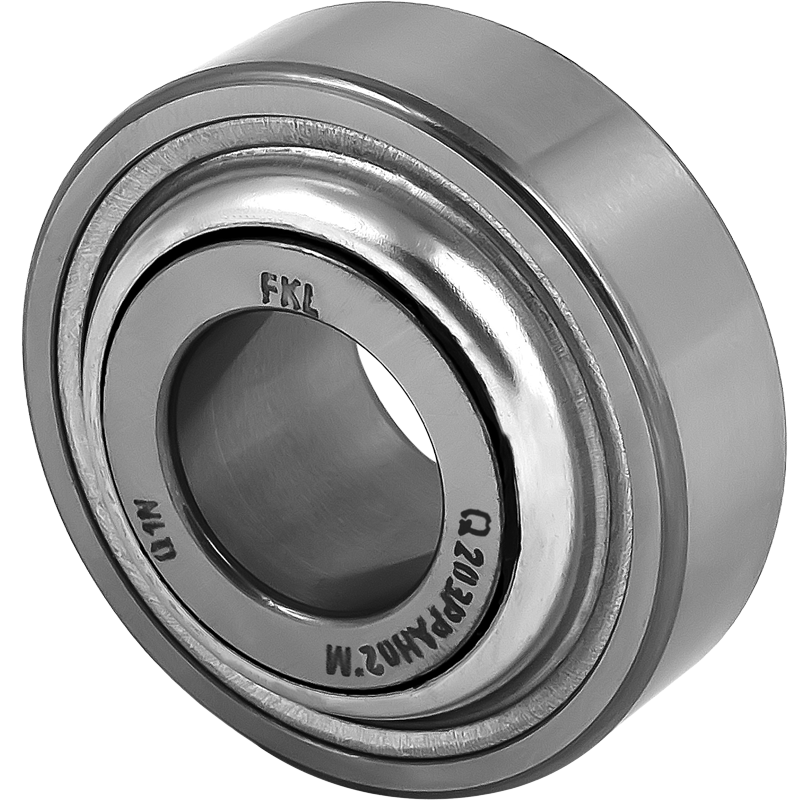

Q 203PP.AH02*M

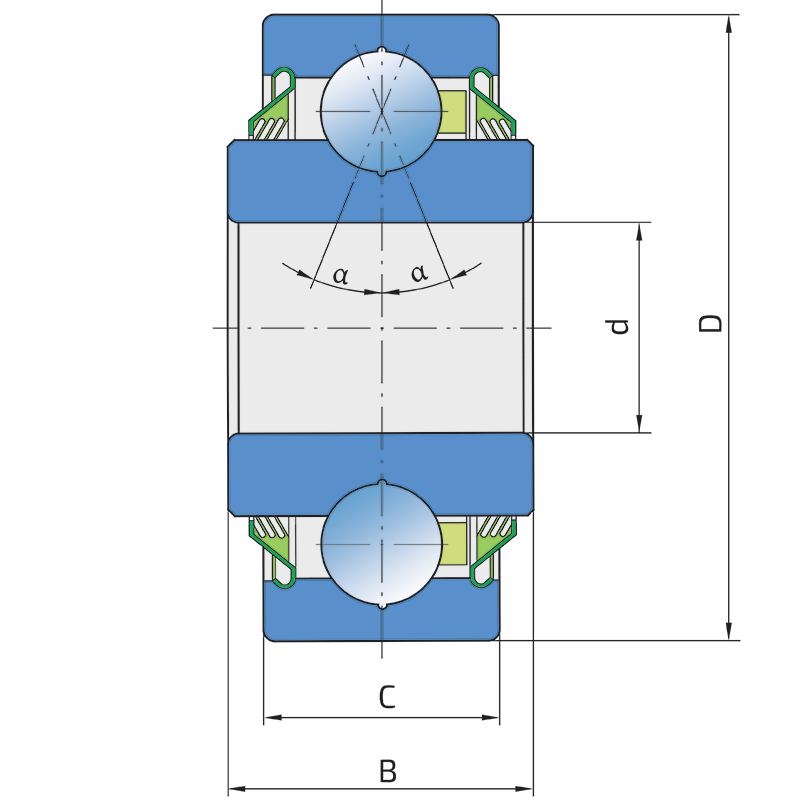

Technical specifications
| d | Bore diameter | 16.2 mm |
| D | Outside diameter | 40 mm |
| B | Width inner ring | 18.29 mm |
| C | Width outer ring | 12 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.08 kg |
| Cdyn | Dynamic load rating | 15.6 kN |
| Co | Static load rating | 10 kN |
| Pu | Fatigue load limit | 0.42 kN |

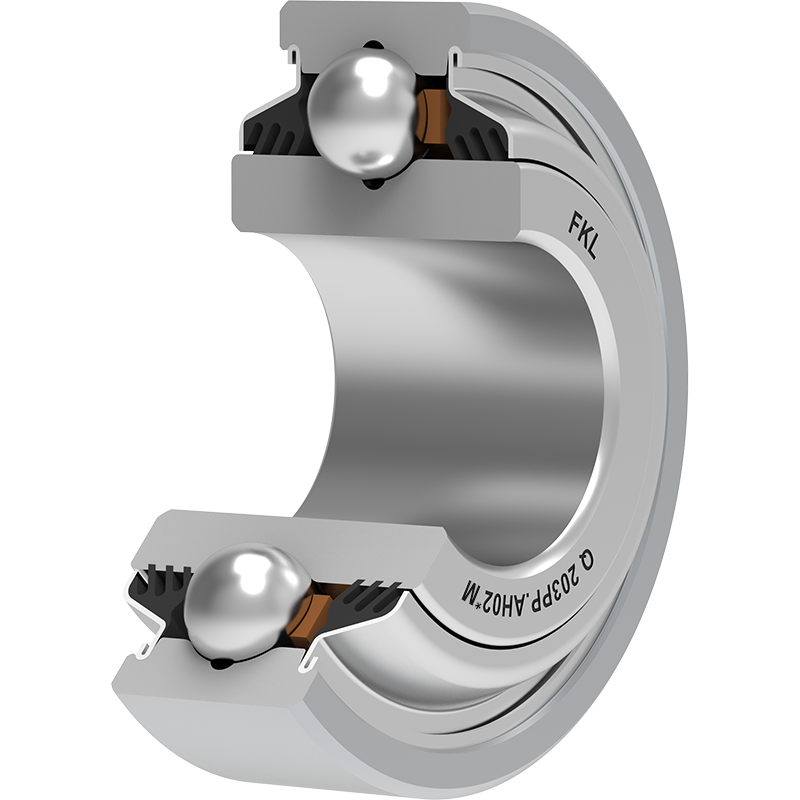

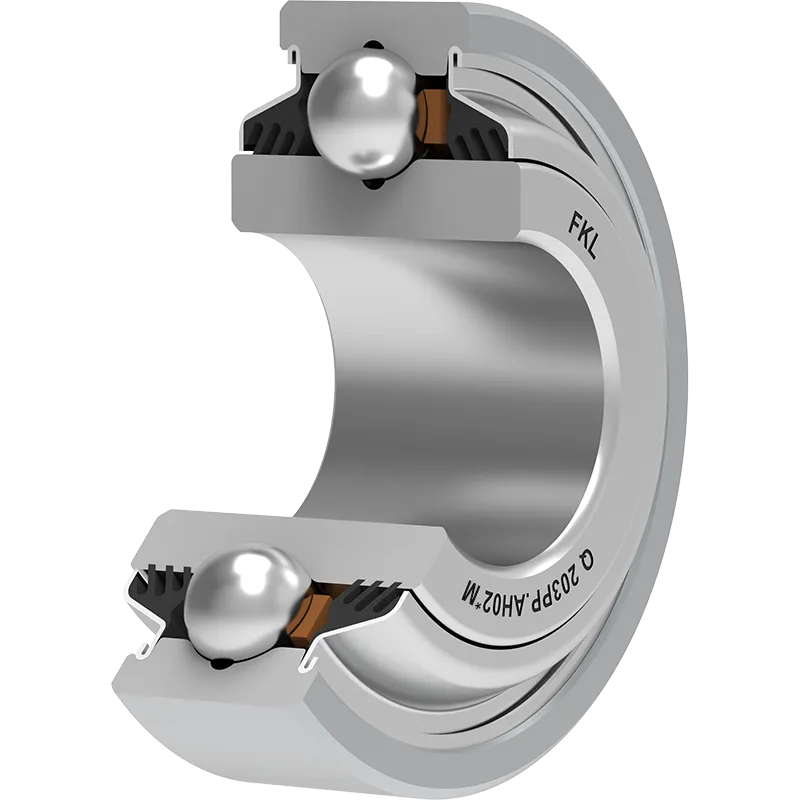

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| Мордовагромаш ОАО | Q 203PP.AH02*M |
Installations
| МОРДОВАГРОМАШ | СЗУС |
| МОРДОВАГРОМАШ | СЗУ |
