Q 203PP.AH02

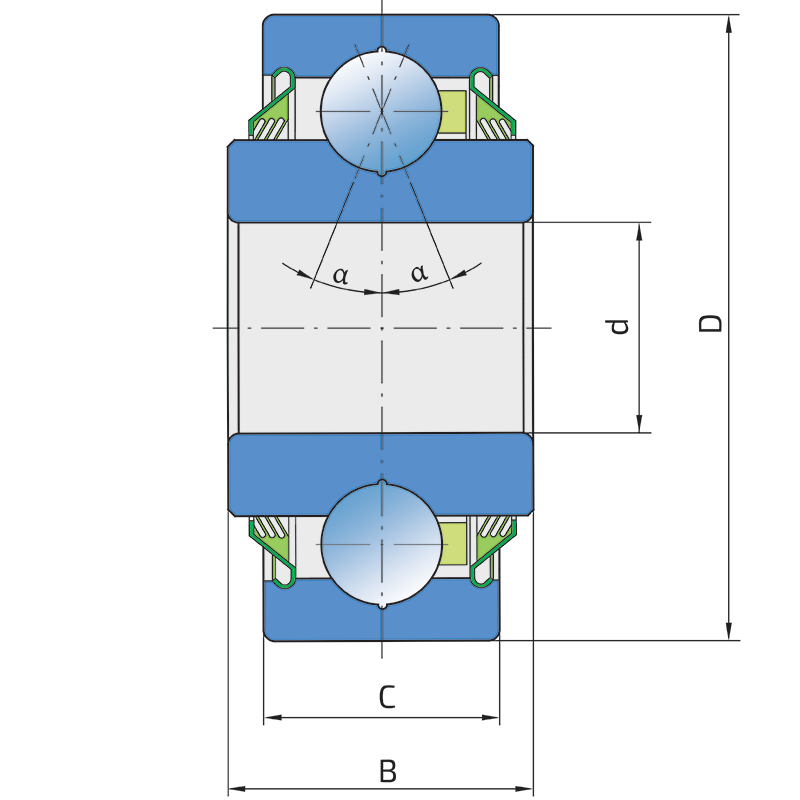

Technical specifications
| d | Bore diameter | 16.256 mm |
| D | Outside diameter | 40 mm |
| B | Width inner ring | 18.29 mm |
| C | D-shape hole cut out dimension | 12 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.08 kg |
| Cdyn | Dynamic load rating | 15.6 kN |
| Co | Static load rating | 10 kN |
| Pu | Fatigue load limit | 0.42 kN |

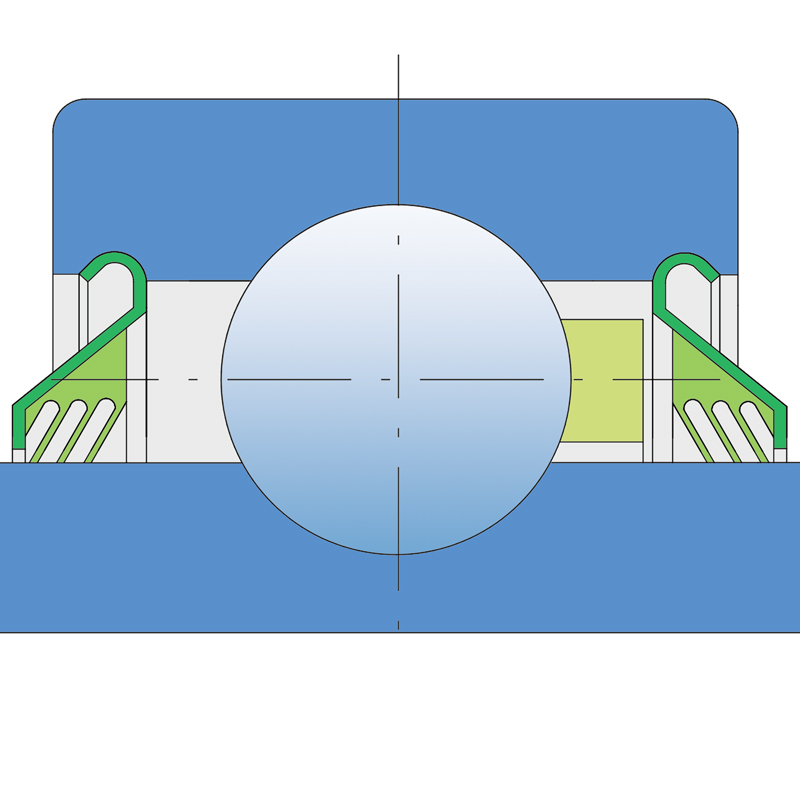

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| OTICO | Q 203PP.AH02 |
| JOHN DEERE | AN281357 |
| JOHN DEERE | AH63076 |
| PEER | BB203KRR2 |
| FAFNIR | BB203KRR2 |
| MASSEY FERGUSON | 832651M1 |
| JOHN DEERE | AN142670 |
| JOHN DEERE | AN141120 |
| JOHN DEERE | AA281357 |
| PEER | BB203KRR5 |
| LOCKWOOD CORPORATION | L-00202-00105 |
| FAFNIR | BB203KRR2 A2139A |
