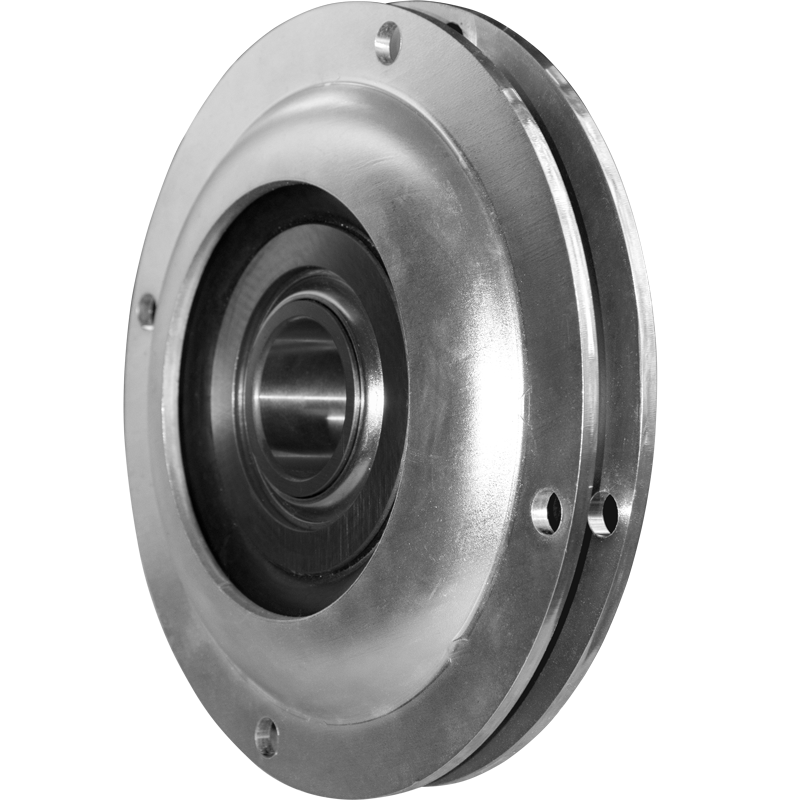

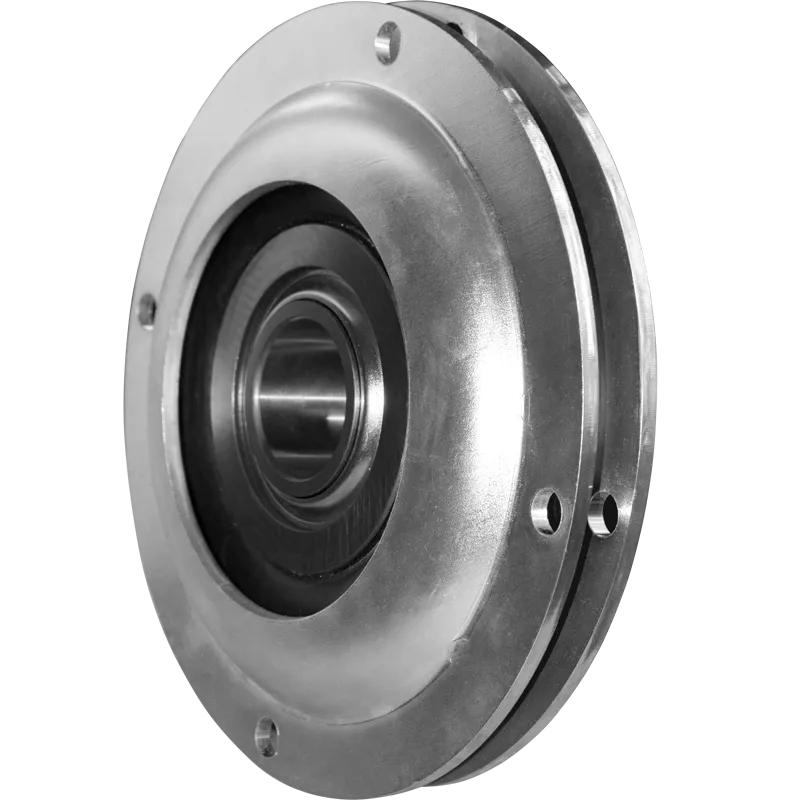

PRB-45-00

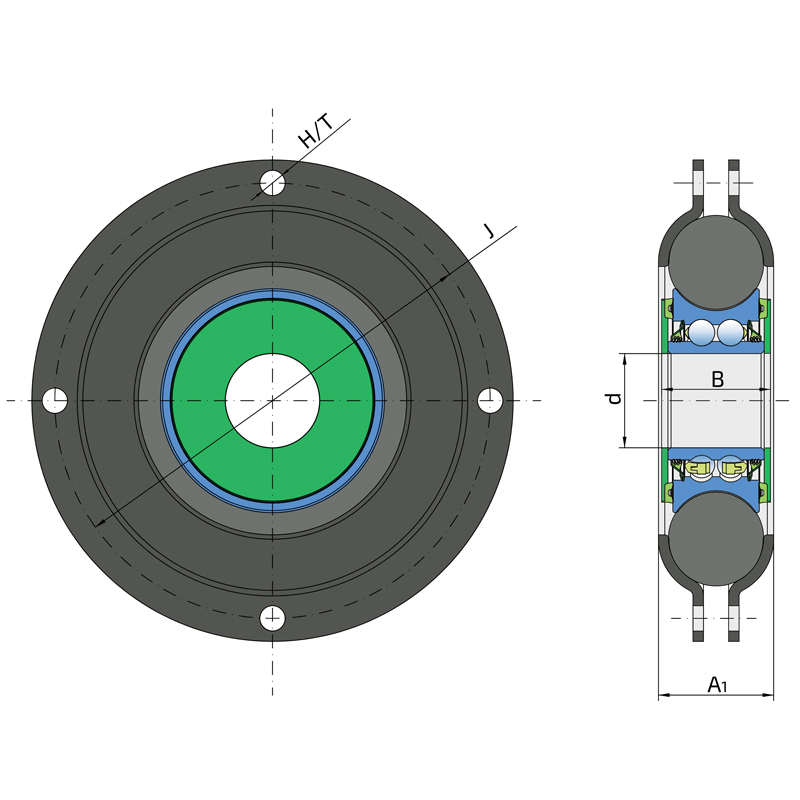

Technical specifications
| d | Bore diameter | 45 mm |
| B | Width inner ring | 52 mm |
| A | Overall width | 55 mm |
| J | Pitch circle diameter | 208 mm |
| H/T | Hole/Thread | 4x12.1 mm |
| kg | Mass | 4.663 kg |
| Cdyn | Dynamic load rating | 51 kN |
| Co | Static load rating | 39 kN |
| Pu | Fatigue load limit | 1.638 kN |

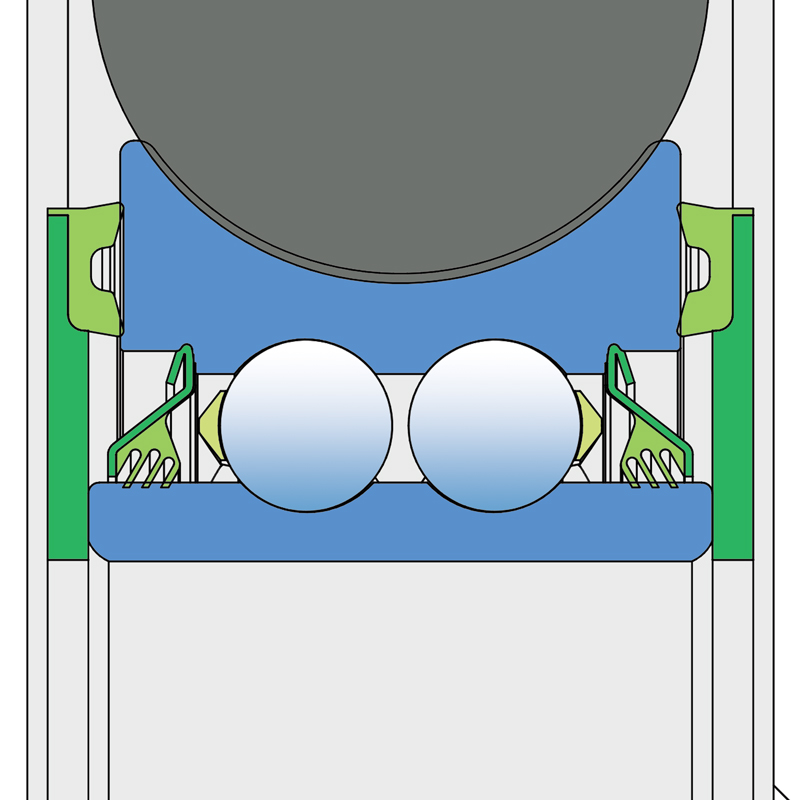

FRONTAL DOUBLE LIP SEAL + T SEAL / T SEAL + FRONTAL DOUBLE LIP SEAL
Triple lip seal and frontal double lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| EXPOM | PRB-45-00 |
| MANDAM | PRB-45-00 |
