PRB-45

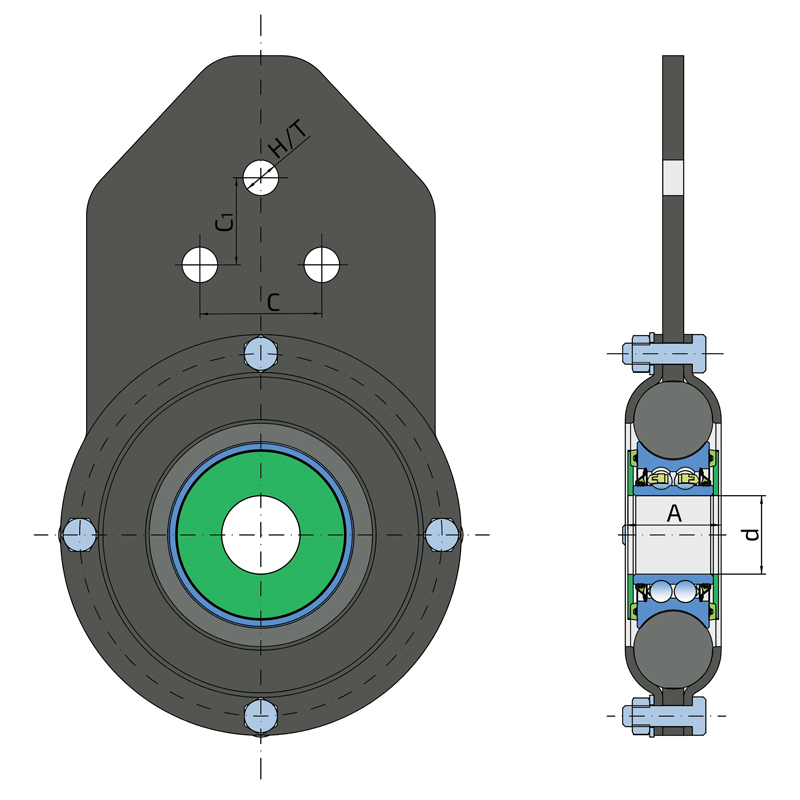

Technical specifications
| d |
Bore diameter |
45 mm |
| A |
Overall width |
55 mm |
| C |
Distance between holes |
70 mm |
| C1 |
Distance between holes |
50 mm |
| H/T |
Hole/Thread |
3x20.5 mm |
| kg |
Mass |
9.199 kg |
| Cdyn |
Dynamic load rating |
51 kN |
| Co |
Static load rating |
39 kN |
| Pu |
Fatigue load limit |
1.638 kN |

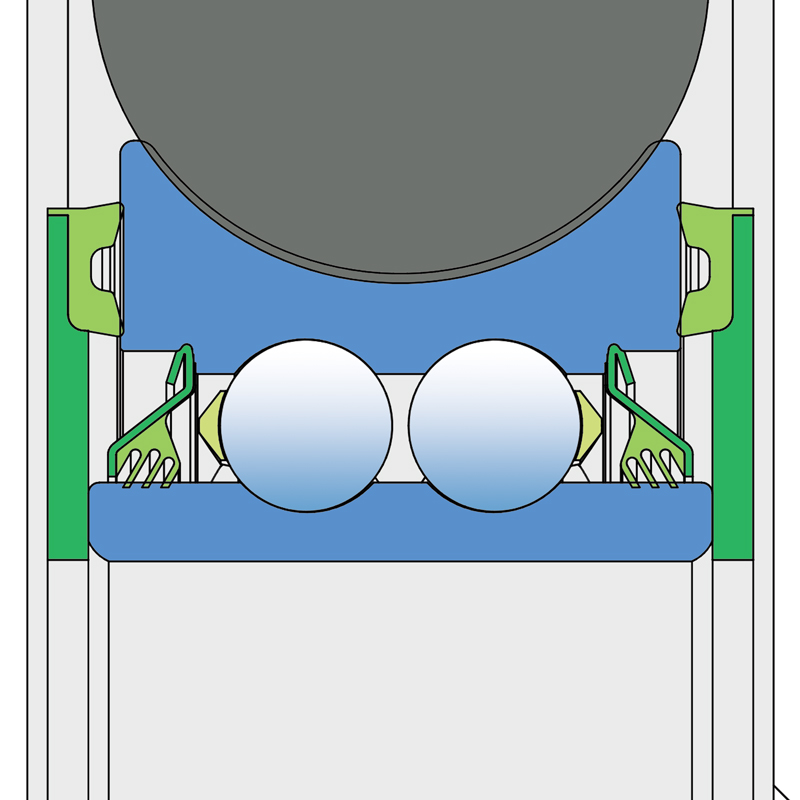

FRONTAL DOUBLE LIP SEAL + T SEAL / T SEAL + FRONTAL DOUBLE LIP SEAL
Triple lip seal and frontal double lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| AWEMAK |
PRB-45*UK |
| Pervomayskdiezelmash |
PRB-45 |
| ДИАС ООО |
PRB-45 |
| Завод им. Медведева ООО |
PRB-45 |
| КОМПАНИЯ САРМАТ ООО |
PRB-45 |
| ПРОМАГРОТЕХНОЛОГИИ ООО (SOLAR FIELDS) |
PRB-45 |
| Радогост - Маш ООО |
PRB-45 |
