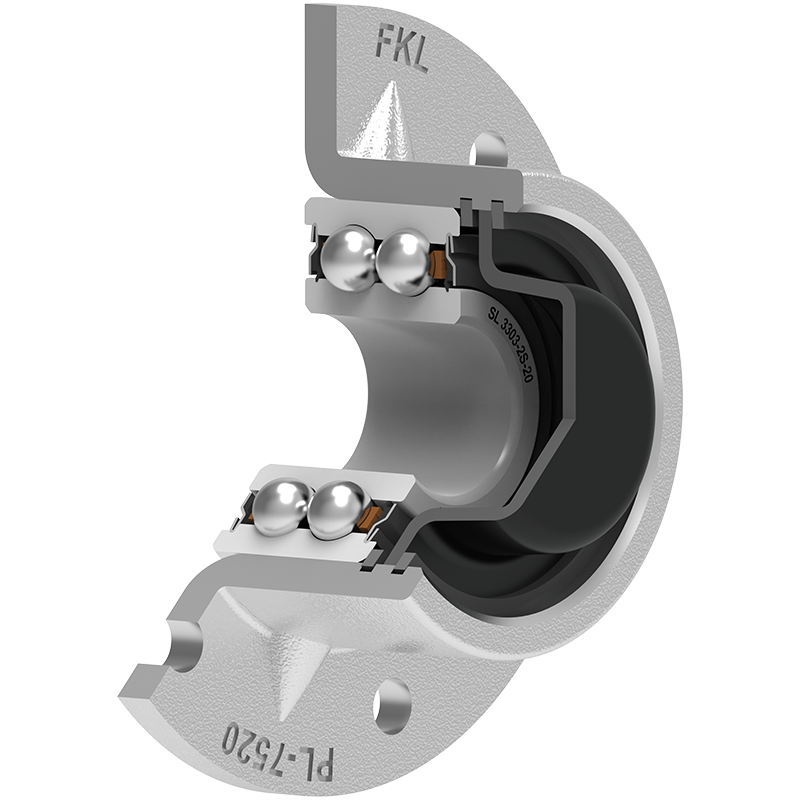

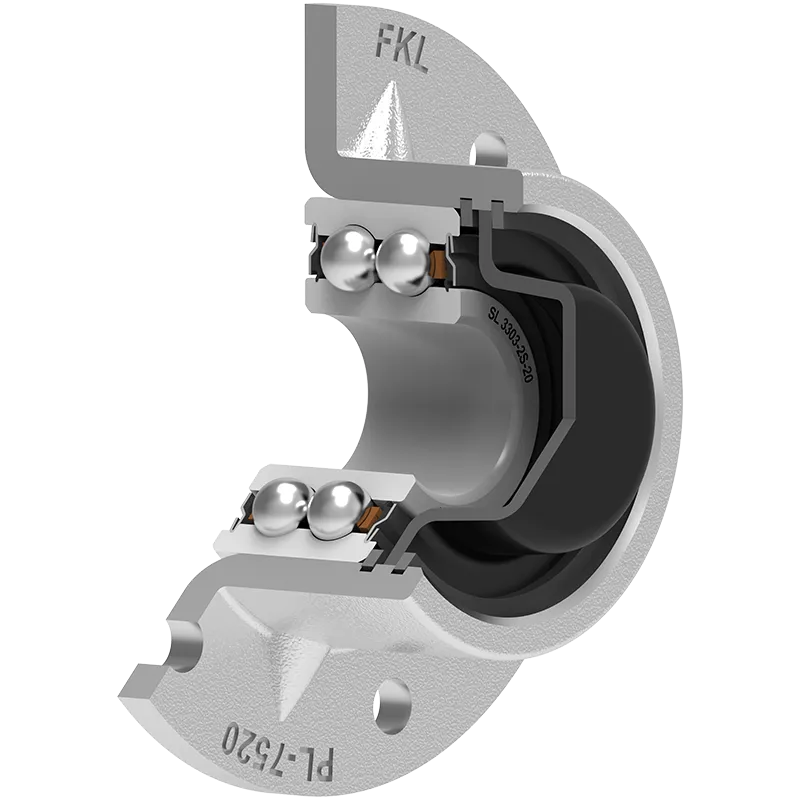

PL-7520-SM

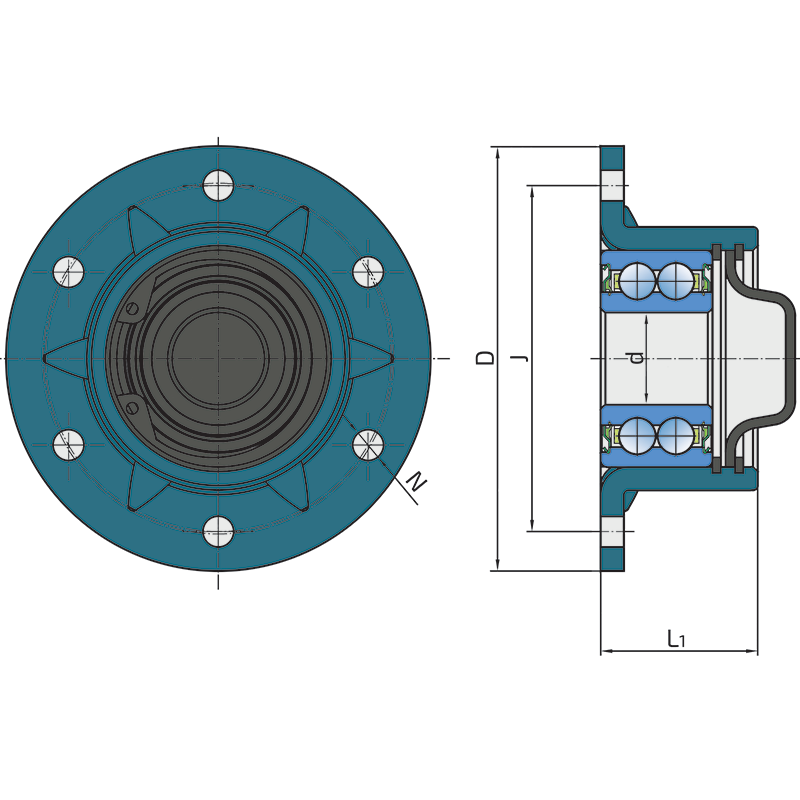

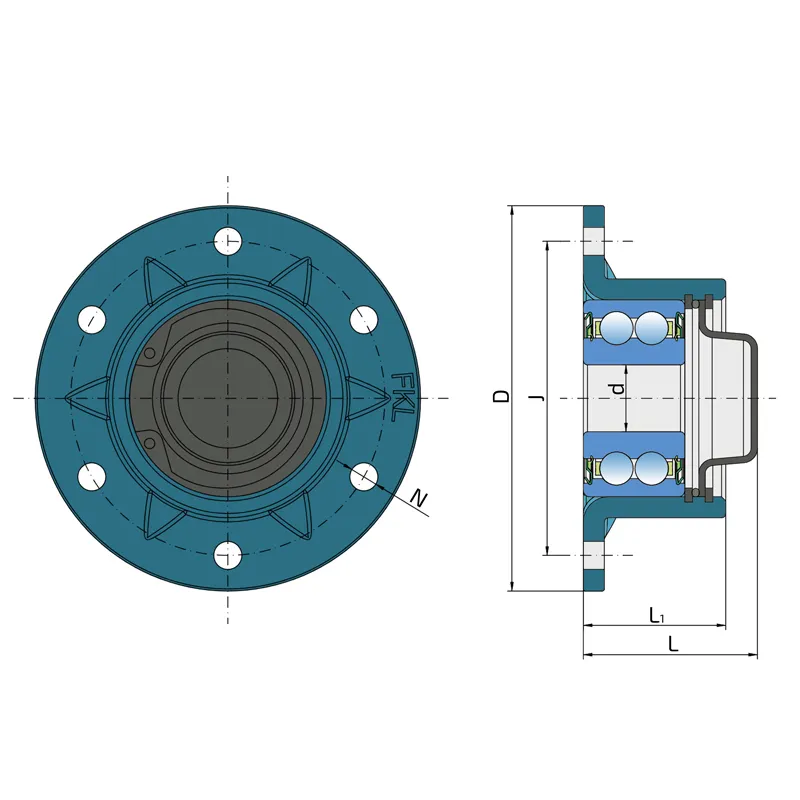

Technical specifications
| d | Bore diameter | 20 mm |
| D | Outside diameter | 92 mm |
| J | Pitch circle diameter | 75 mm |
| L1 | Total flange length | 34 mm |
| N | Hole diameter | 6.7H12 mm |
| kg | Mass | 0.52 kg |
| Cdyn | Dynamic load rating | 19.6 kN |
| Co | Static load rating | 12.5 kN |
| Pu | Fatigue load limit | 0.525 kN |

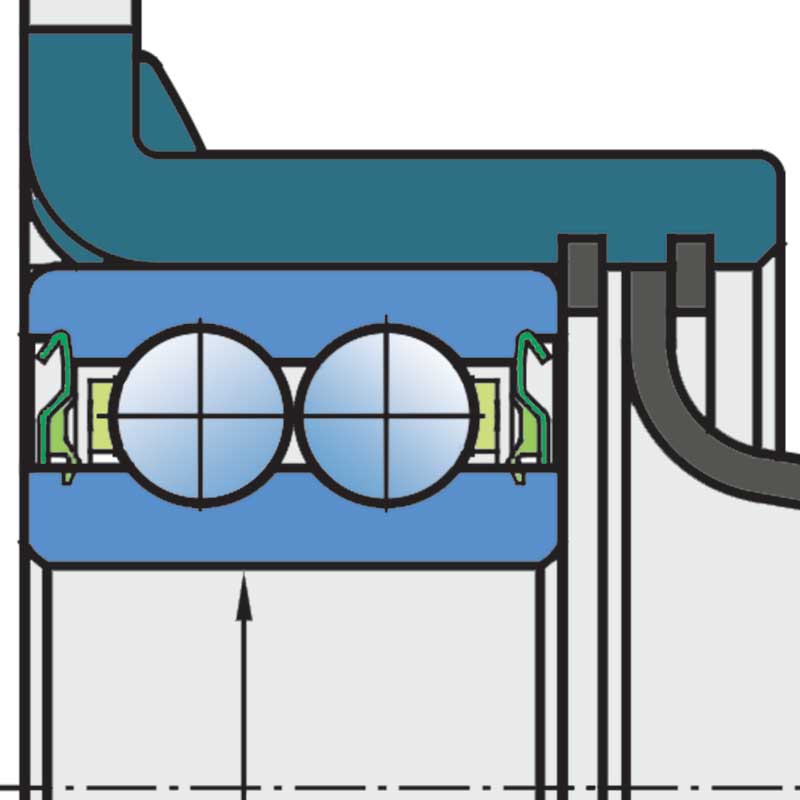

S SEAL / S SEAL+PLASTIC CAP
S seal on the base side and S seal with Plastic cap on the front side which is exposed to the environment.

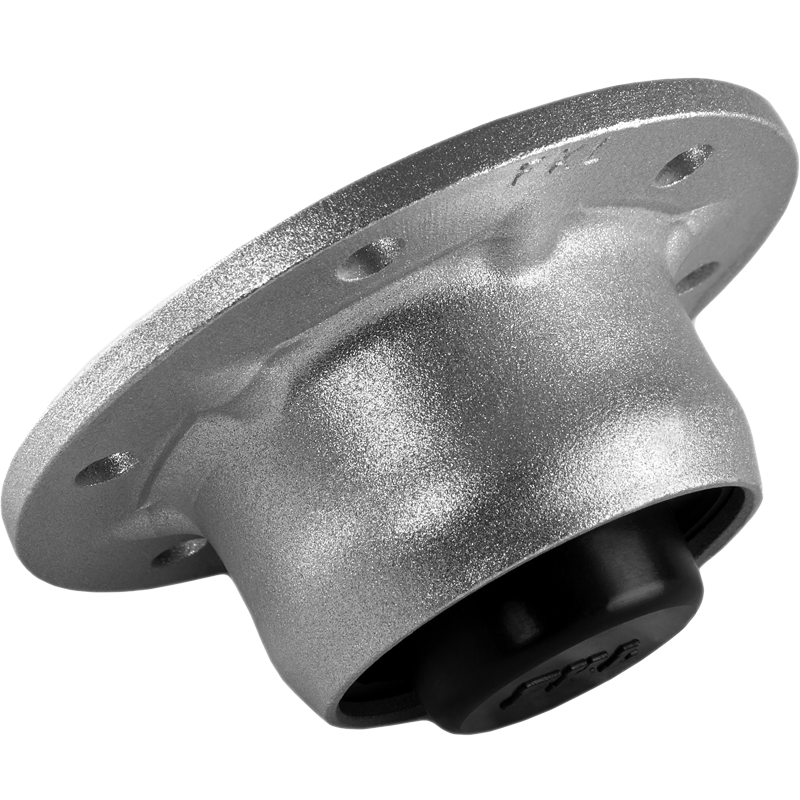

Plastic cap protects the nut and reduces the penetration of contaminants.
Cross references
| УМНАЯ СЕЛЬХОЗТЕХНИКА (АГРИГРЕЙТ) ООО | PL-7520-SM |
Installations
| АГРИГРЕЙТ | Рабл |
