PL-7516-SM

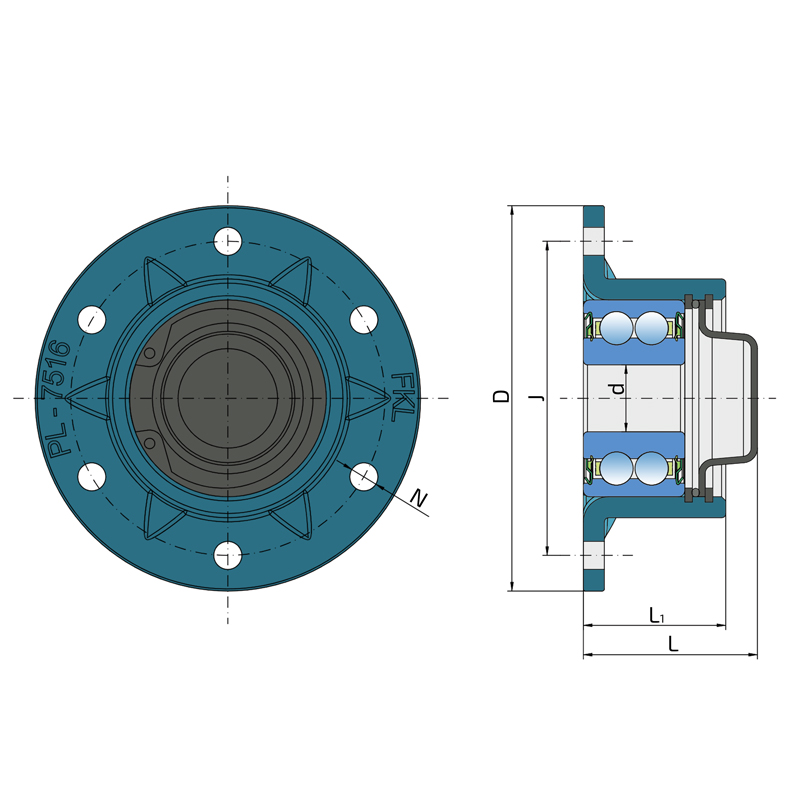

Technical specifications
| d | Bore diameter | 16 mm |
| D | Outside diameter | 92 mm |
| J | Pitch circle diameter | 75 mm |
| L1 | Total flange length | 34 mm |
| L | Total length | 41.55 mm |
| N | Hole diameter | 6.7 mm |
| kg | Mass | 0.54 kg |
| Cdyn | Dynamic load rating | 16.5 kN |
| Co | Static load rating | 11 kN |
| Pu | Fatigue load limit | 0.462 kN |

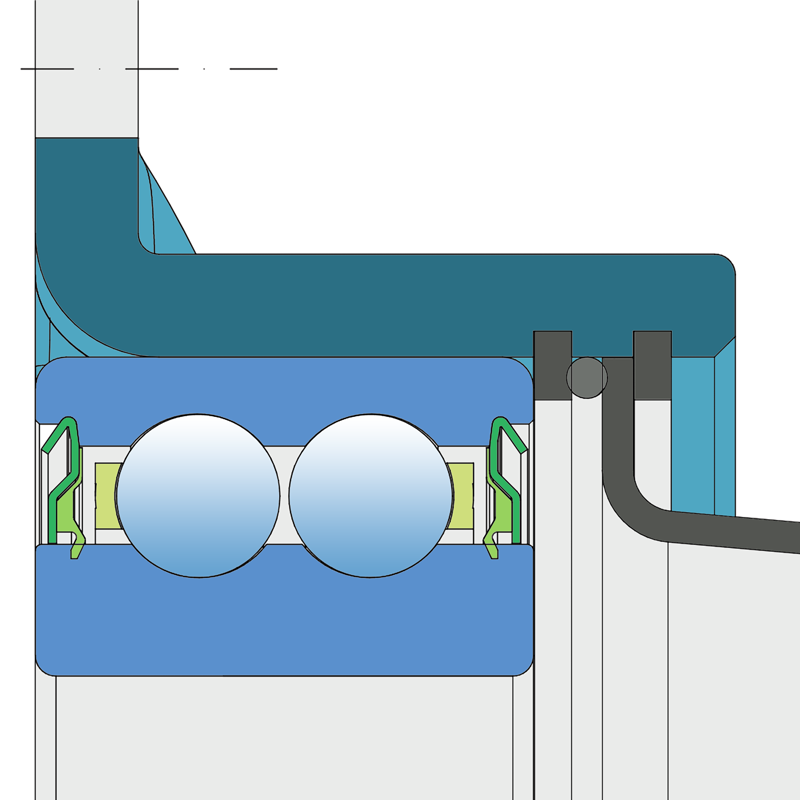

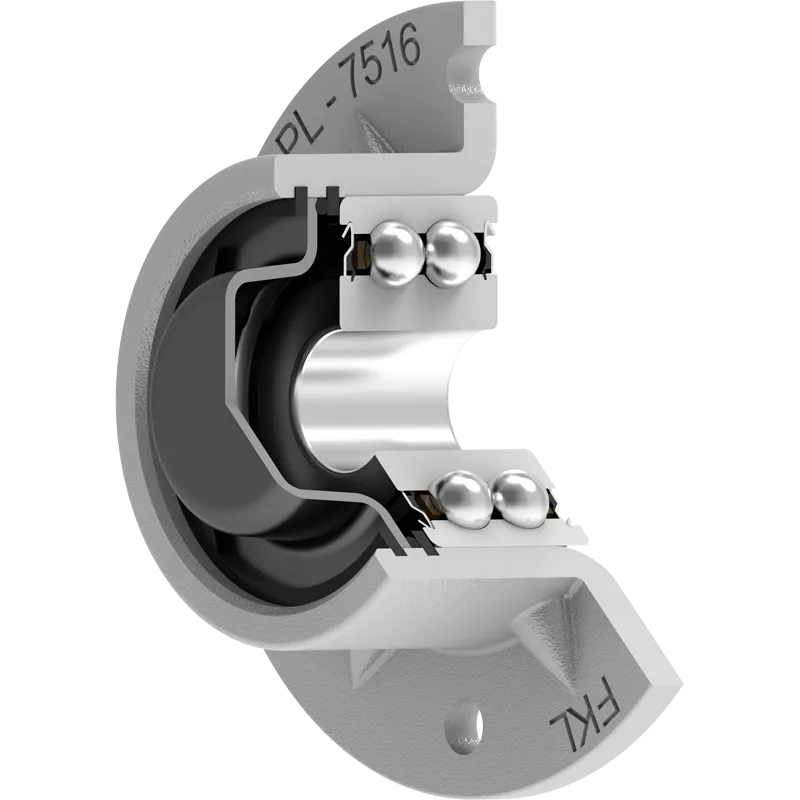

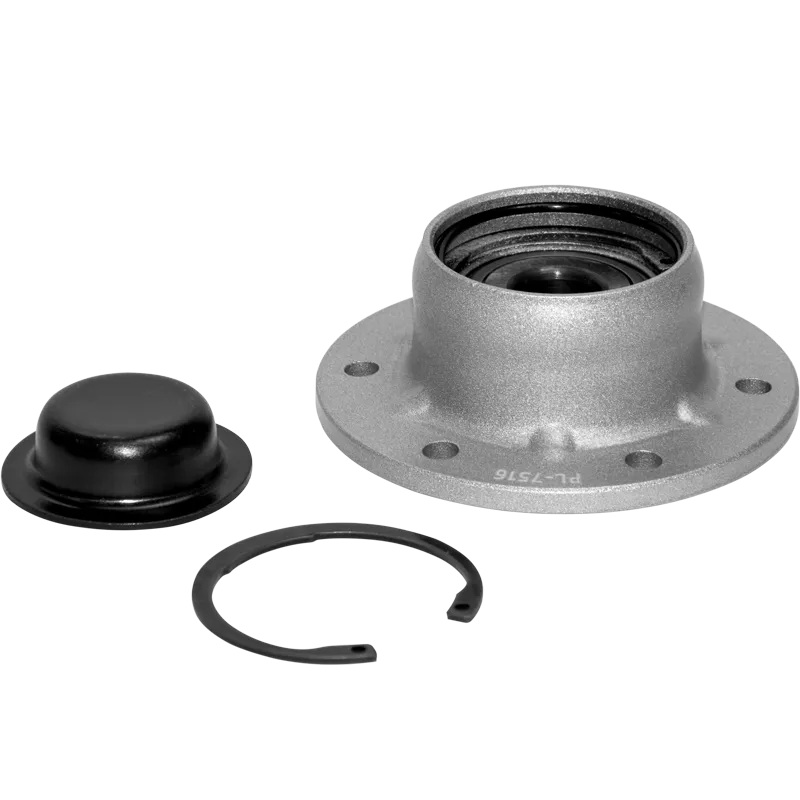

S SEAL / S SEAL + O-RING + METAL CAP
S seal on the base side and S seal, O-ring and Metal cap on the front side which is exposed to the environment.
Metal cap protects the nut and reduces the penetration of contaminants.
