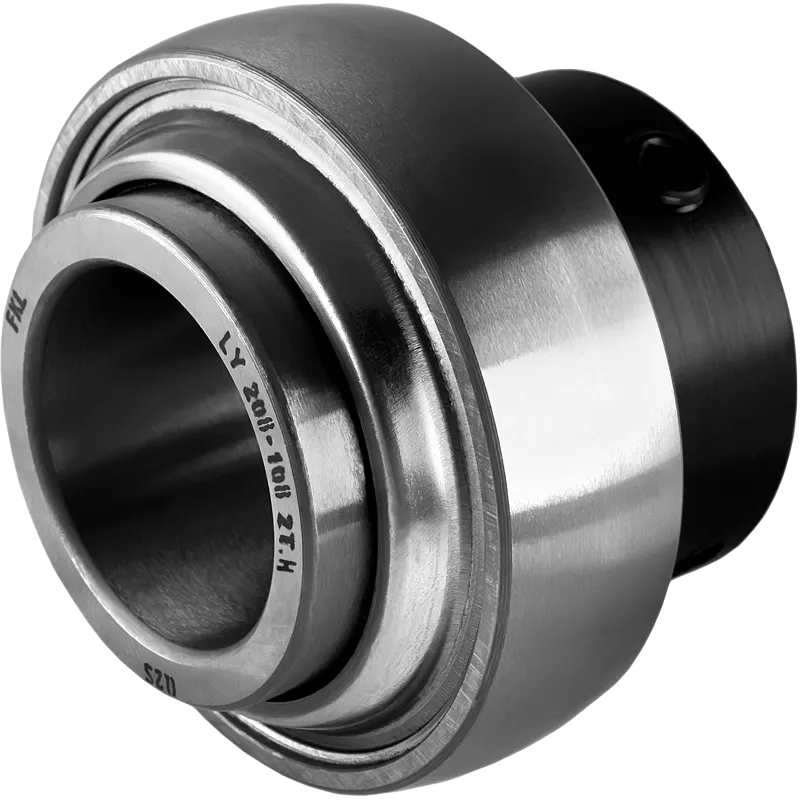

LY 208-108 2T.H

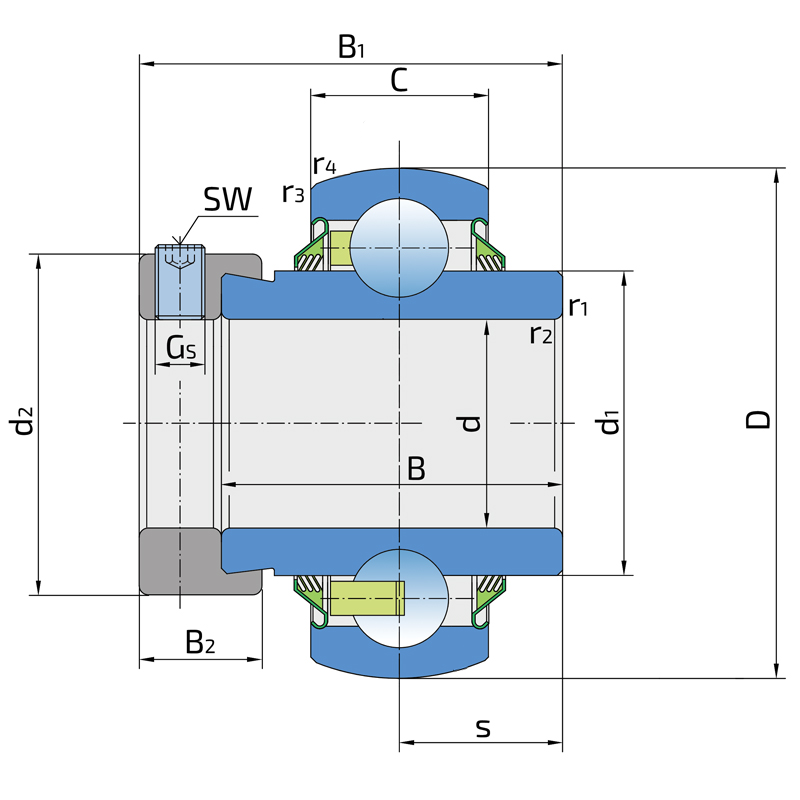

Technical specifications
| d |
Bore diameter |
38.1 mm |
| D |
Outside diameter |
80 mm |
| B |
Width inner ring |
42.8 mm |
| C |
Width outer ring |
21 mm |
| s |
Distance from inner ring side face to raceway centre |
21.4 mm |
| d1 |
Outer diameter inner ring |
51.8 mm |
| Gs |
Set screw |
3/8-24 UNF inch |
| sw |
Hexagonal key size for set screw |
4.763 mm |
| sw |
Hexagonal key size for set screw |
3/16 inch |
| r1,2 |
Inner ring Chamfer dimension |
1 mm |
| r3,4 |
Outside ring Chamfer dimension |
1.2 mm |
| B1 |
Width inner ring with locking collar |
56.3 mm |
| d2 |
Locking collar outside diameter |
58.1 mm |
| B2 |
Width locking collar |
18.3 mm |
| kg |
Mass |
0.8 kg |
| Cdyn |
Dynamic load rating |
23.6 kN |
| Co |
Static load rating |
19.8 kN |
| Pu |
Fatigue load limit |
0.832 kN |

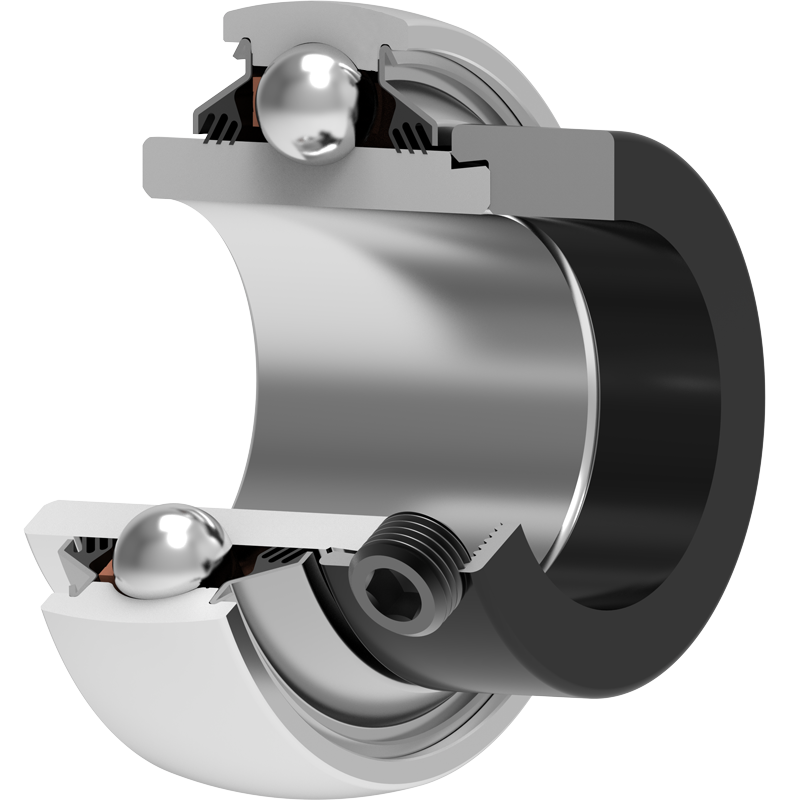

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
