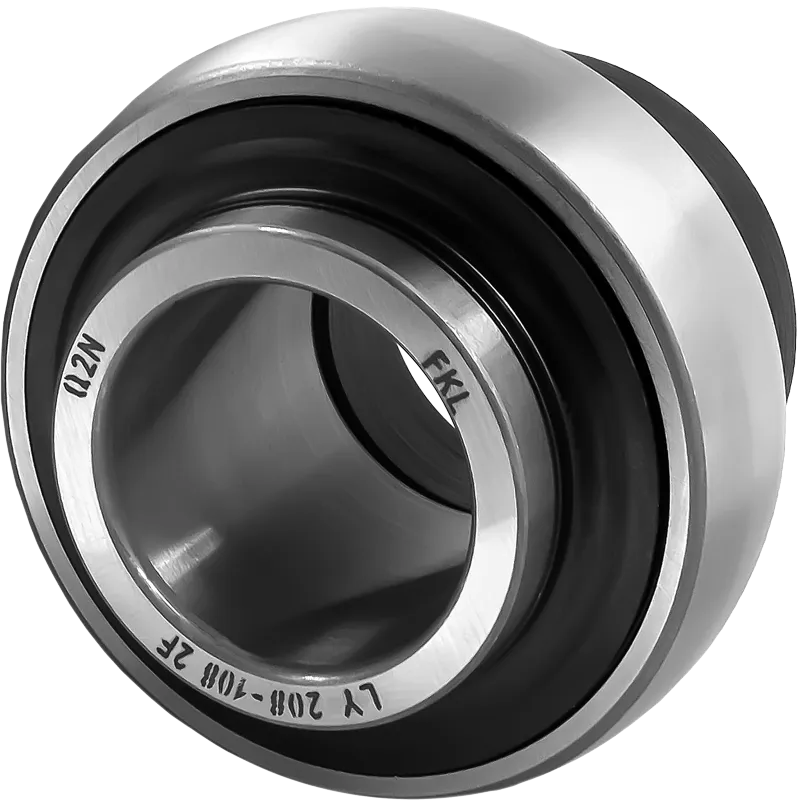

LY 208-108 2F

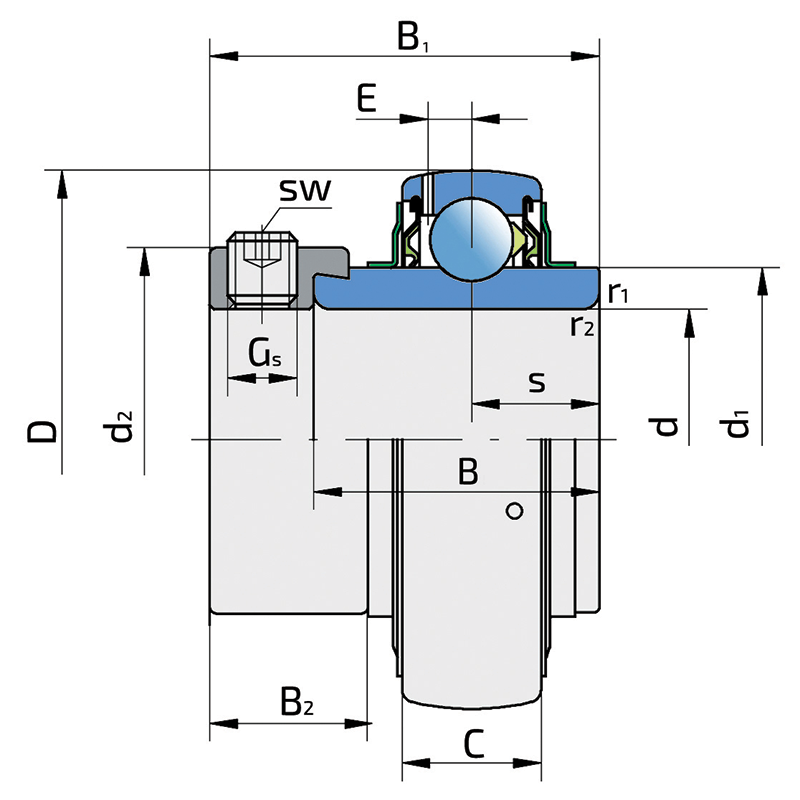

Technical specifications
| d |
Bore diameter |
38.1 mm |
| D |
Outside diameter |
80 mm |
| B |
Width inner ring |
42.8 mm |
| C |
Width outer ring |
21 mm |
| s |
Distance from inner ring side face to raceway centre |
21.4 mm |
| d1 |
Outer diameter inner ring |
51.8 mm |
| E |
Distance from raceway centre to the hole for lubrication |
6.15 mm |
| Gs |
Set screw |
3/8-24 UNF inch |
| sw |
Hexagonal key size for set screw |
4.763 mm |
| sw |
Hexagonal key size for set screw |
3/16 inch |
| r1,2 |
Inner ring Chamfer dimension |
1 mm |
| r3,4 |
Outside ring Chamfer dimension |
1.2 mm |
| B1 |
Width inner ring with locking collar |
56.3 mm |
| d2 |
Locking collar outside diameter |
58.1 mm |
| B2 |
Width locking collar |
18.3 mm |
| kg |
Mass |
0.8 kg |
| Cdyn |
Dynamic load rating |
23.6 kN |
| Co |
Static load rating |
19.8 kN |
| Pu |
Fatigue load limit |
0.832 kN |

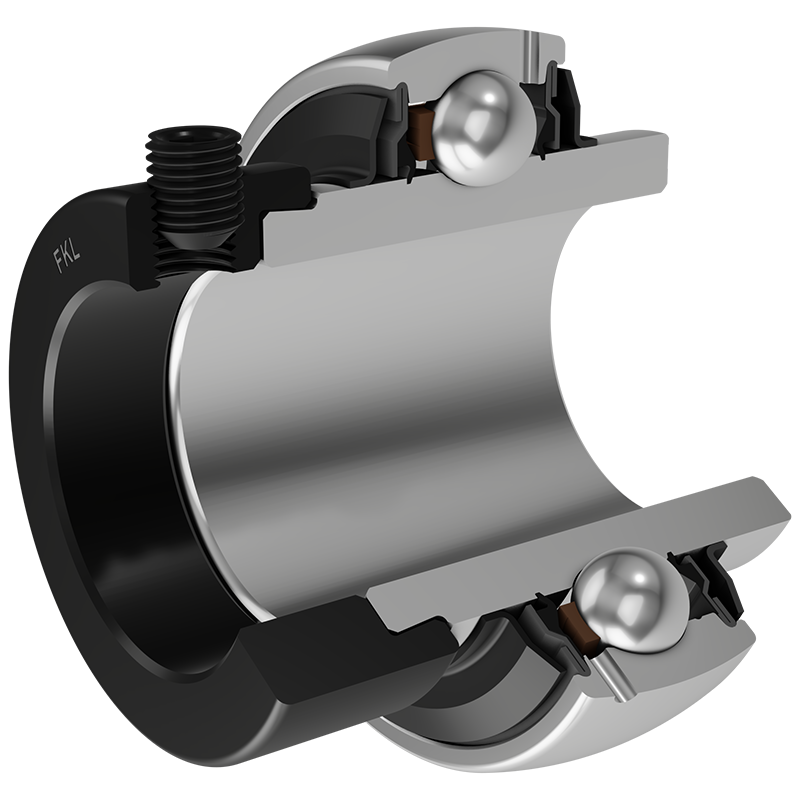

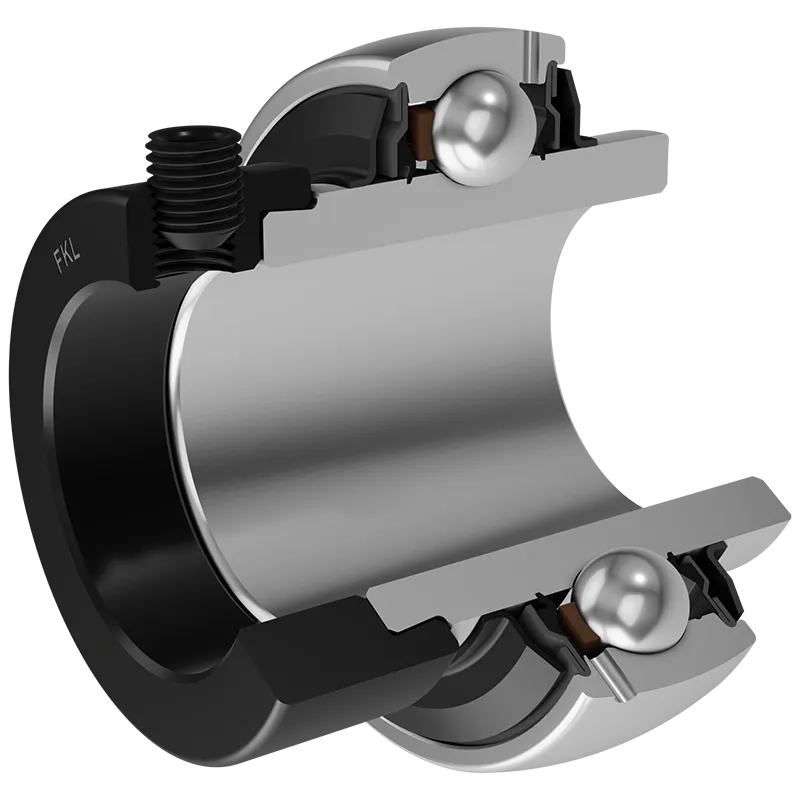

F SEAL / F SEAL (2F)
Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type,
with the labyrinth between the sheet part and the rubber lip
that conducts the contact sealing. The friction and speeds
are the same as with S but has much better protection
against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and
rough particles. At the same time makes the labyrinth with
the rubber part. The rubber part provides the contact sealing
that prevents the penetration of the finer impurities, water,
moisture, steam etc. Suitable for heavier conditions due to
better protection against foreign matters. It is used with the
Y bearings (standard).
Cross references
| JOHN DEERE |
JD10006 |
| JOHN DEERE |
AE12299E |
| JOHN DEERE |
JD9434 |
| JOHN DEERE |
AE48913 |
| CASE |
664597R91 |
| CASE |
454113R91 |
| SKF |
YEL208-1082F |
| INA |
G1108KRRB-AS2/V |
| FAFNIR |
G1108KRRB |
| CASE |
455111R91 |
| SNR |
EX208-24G2 |
| PTI |
HC 208X1-1/2 |
Installations
| JOHN DEERE |
415D |
| JOHN DEERE |
420D |
| JOHN DEERE |
425D |
| JOHN DEERE |
430D |
| JOHN DEERE |
748 |
| JOHN DEERE |
6620 |
| JOHN DEERE |
7260 |
| JOHN DEERE |
7455 |
| JOHN DEERE |
7460 |
| JOHN DEERE |
7720 |
| JOHN DEERE |
7721 |
| JOHN DEERE |
8820 |
| JOHN DEERE |
9400 |
| JOHN DEERE |
9410 |
| JOHN DEERE |
9450 |
| JOHN DEERE |
9500 |
| JOHN DEERE |
9501 |
| JOHN DEERE |
9510 |
| JOHN DEERE |
9540 |
| JOHN DEERE |
9550 |
| JOHN DEERE |
9560 |
| JOHN DEERE |
9580 |
| JOHN DEERE |
9600 |
| JOHN DEERE |
9610 |
| JOHN DEERE |
9640 |
| JOHN DEERE |
9650 |
| JOHN DEERE |
9660 |
| JOHN DEERE |
9670 |
| JOHN DEERE |
9680 |
| JOHN DEERE |
9780 |
| JOHN DEERE |
9935 |
| JOHN DEERE |
9970 |
| JOHN DEERE |
C670 |
| JOHN DEERE |
CTS |
| JOHN DEERE |
CTS II |
| JOHN DEERE |
T5 400 |
| JOHN DEERE |
T5 500 |
| JOHN DEERE |
T5 600 |
| JOHN DEERE |
T5 700 |
| JOHN DEERE |
T6 500 |
| JOHN DEERE |
T6 600 |
| JOHN DEERE |
T6 700 |
| JOHN DEERE |
T6 800 |
| JOHN DEERE |
T550 |
| JOHN DEERE |
T560 |
| JOHN DEERE |
T660 |
| JOHN DEERE |
T670 |
| JOHN DEERE |
W540 |
| JOHN DEERE |
W550 |
| JOHN DEERE |
W650 |
| JOHN DEERE |
W660 |
