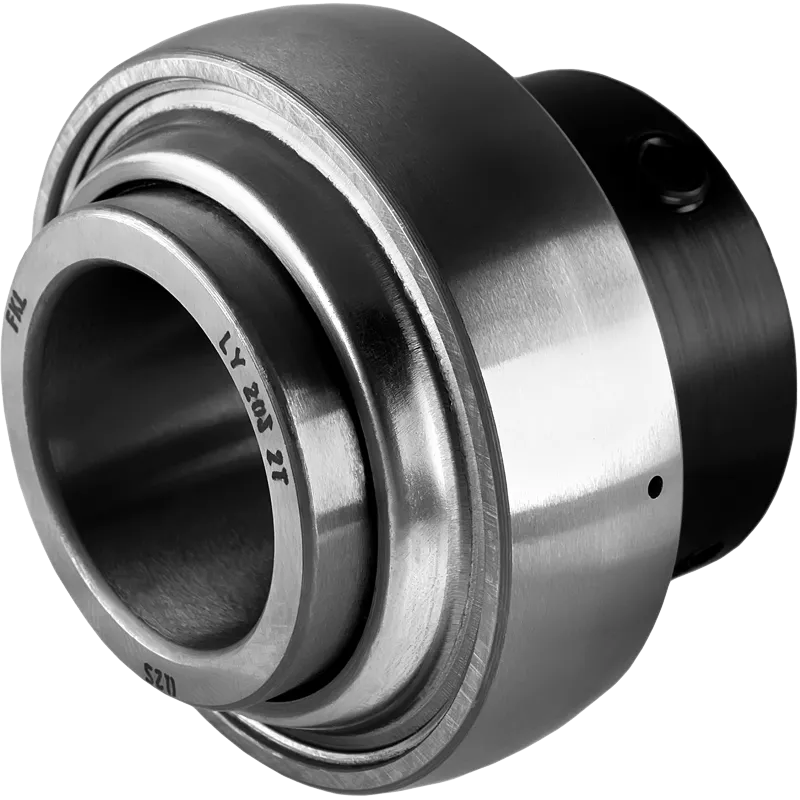

LY 205 2T

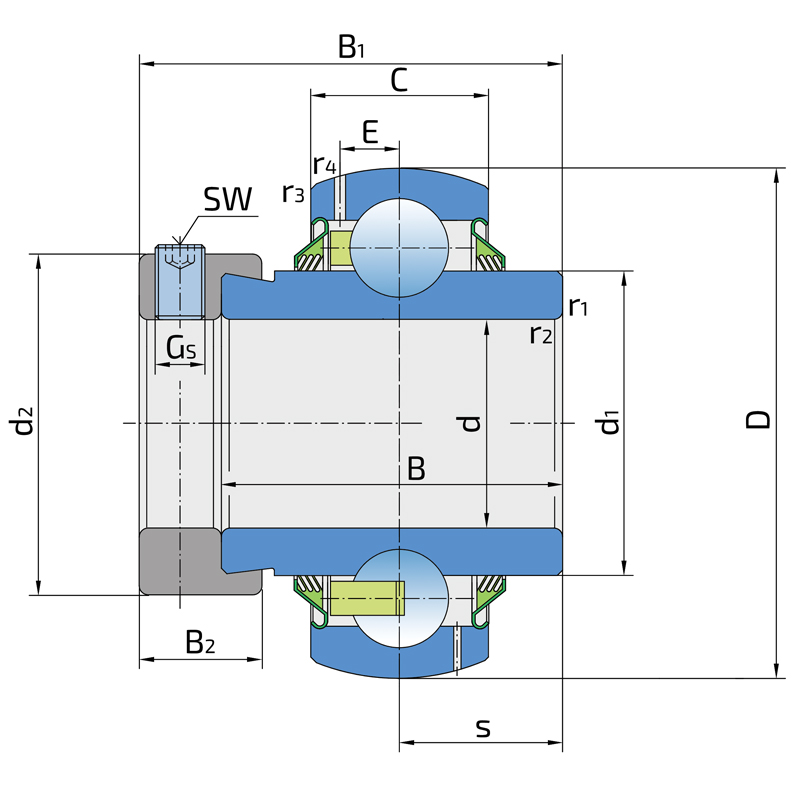

Technical specifications
| d | Bore diameter | 25 mm |
| D | Outside diameter | 52 mm |
| B | Width inner ring | 44.4 mm |
| C | Width outer ring | 15 mm |
| s | Distance from inner ring side face to raceway centre | 17.5 mm |
| d1 | Outer diameter inner ring | 33.6 mm |
| E | Distance from raceway centre to the hole for lubrication | 4.3 mm |
| Gs | Set screw | M6x0.75 mm |
| sw | Hexagonal key size for set screw | 3 mm |
| r1,2 | Inner ring Chamfer dimension | 0.6 mm |
| r3,4 | Outside ring Chamfer dimension | 0.6 mm |
| B1 | Width inner ring with locking collar | 34.8 mm |
| d2 | Locking collar outside diameter | 37.4 mm |
| B2 | Width locking collar | 13.5 mm |
| Cdyn | Dynamic load rating | 14 kN |
| Co | Static load rating | 7.8 kN |
| Pu | Fatigue load limit | 0.34 kN |
| kg | Mass | 0.23 kg |

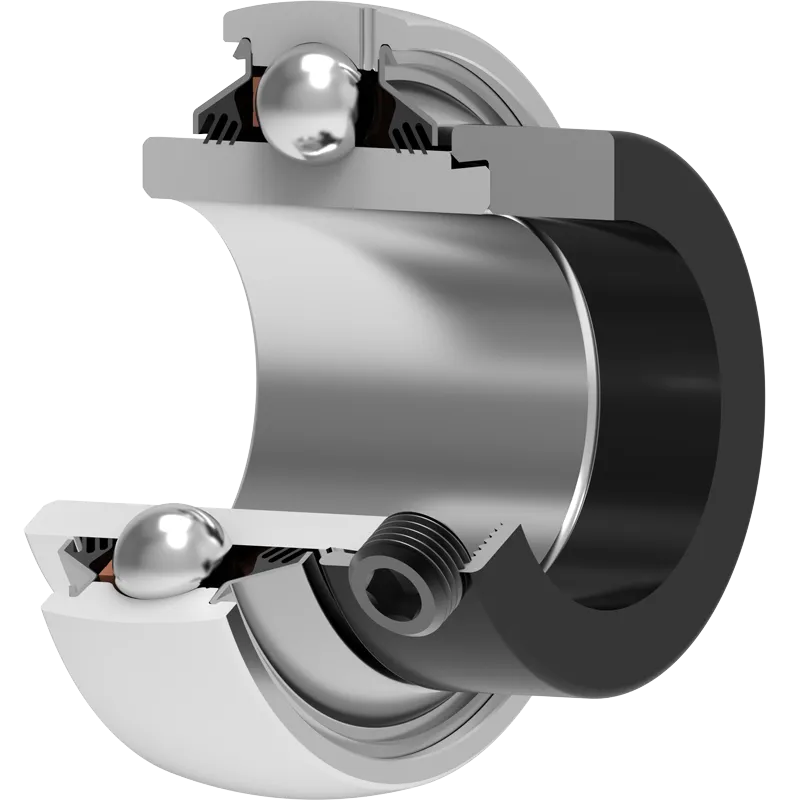

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
