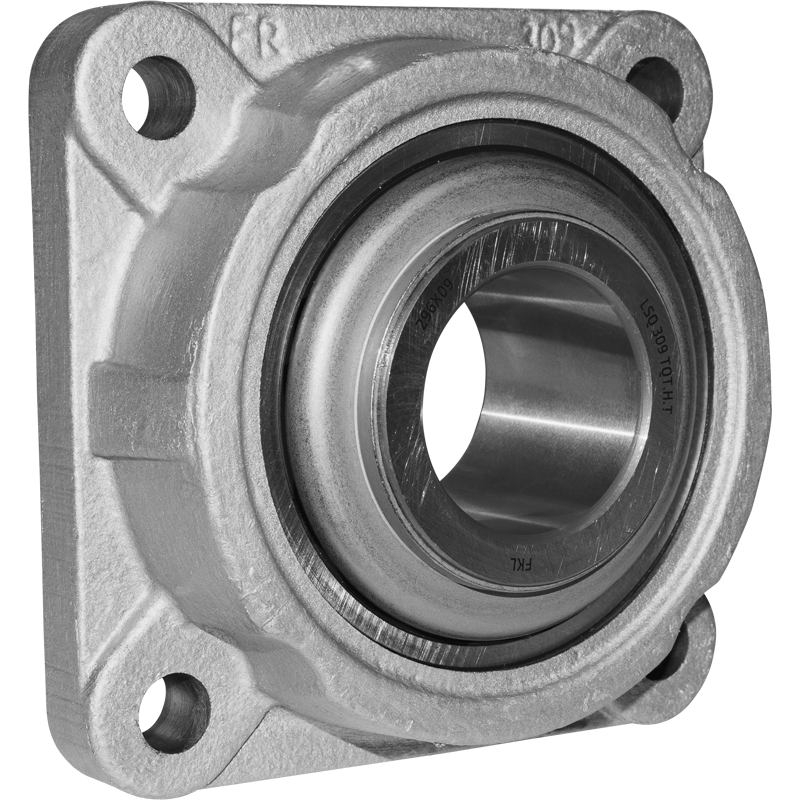

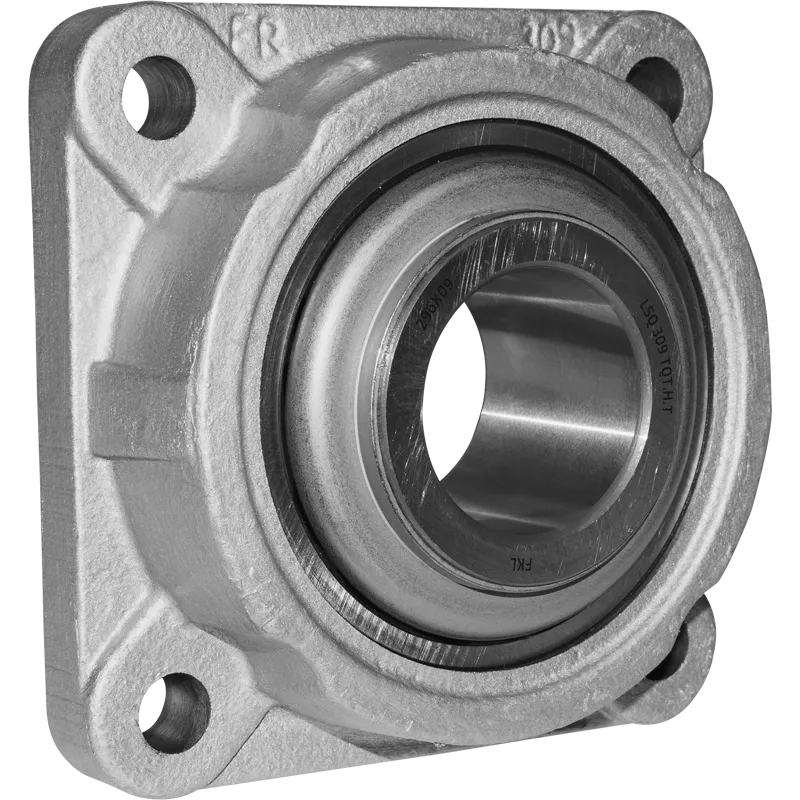

LSQFR 309 TQT.H.T
Technical specifications
| d |
Bore diameter |
45 mm |
| L |
Total length |
137 mm |
| J |
Distance between the holes |
105 mm |
| H/T |
Hole/Thread |
14 mm |
| A |
Overall width |
53 mm |
| A1 |
Total housing width |
44 mm |
| A2 |
Housing flange thickness |
18 mm |
| B |
Width inner ring |
50.45 mm |
| kg |
Mass |
3.061 kg |
| Cdyn |
Dynamic load rating |
80.8 kN |
| Co |
Static load rating |
59.6 kN |
| Pu |
Fatigue load limit |
2.503 kN |

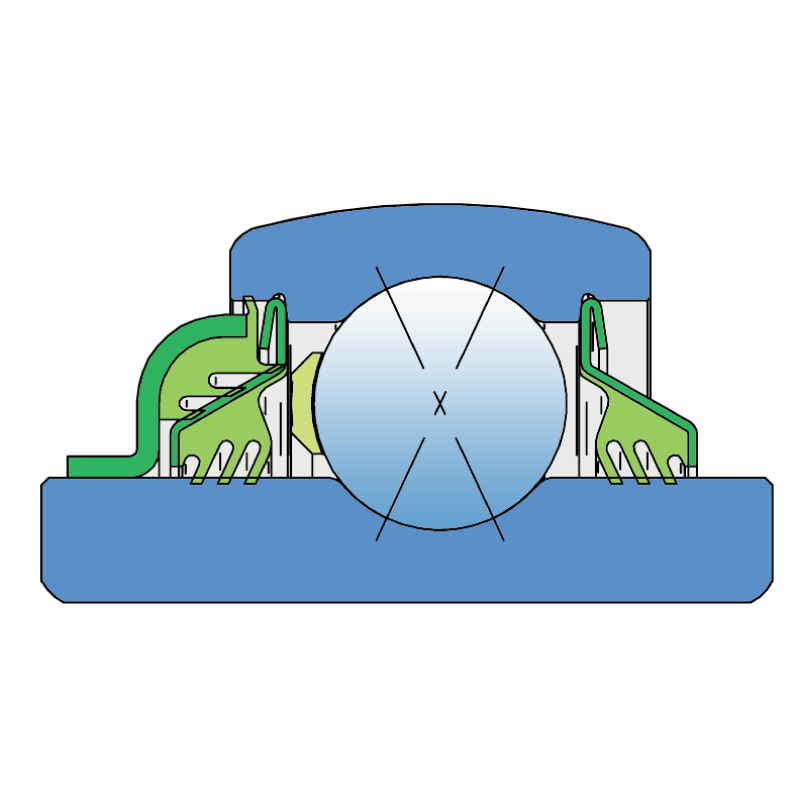

TQ SEAL / T SEAL
3-lip seal on the base side and 7-lip seal on the front side which is exposed to contaminants.
The innovative 7-lip seal ensures a perfect fit on the inner ring, delivering exceptional sealing performance and durability even under extreme conditions. The TQT seal effectively prevent the ingress of water, snow, mud, and dust, providing robust protection of the bearing and extending its lifetime.
Cross references
| LAUMETRIS |
LSQFR 309 TQT.H.T |
| Pervomayskdiezelmash |
LSQFR 309 TQT.H.T |
| Agromach - Krasnyansky |
LSQFR 309 TQT.H.T |
| FARMET |
m18888 |
| FARMET |
18888ND |
| FARMET |
m10257 |
| FARMET |
m15557 |
| FARMET |
m14581 |
| FARMET |
m13082 |
| FARMET |
m15626 |
| FARMET |
15626ND |
| FARMET |
13082ND |
| FARMET |
M13082ND |
| FARMET |
4000412 |
| HFB |
CJI309GGG+19000509 |
