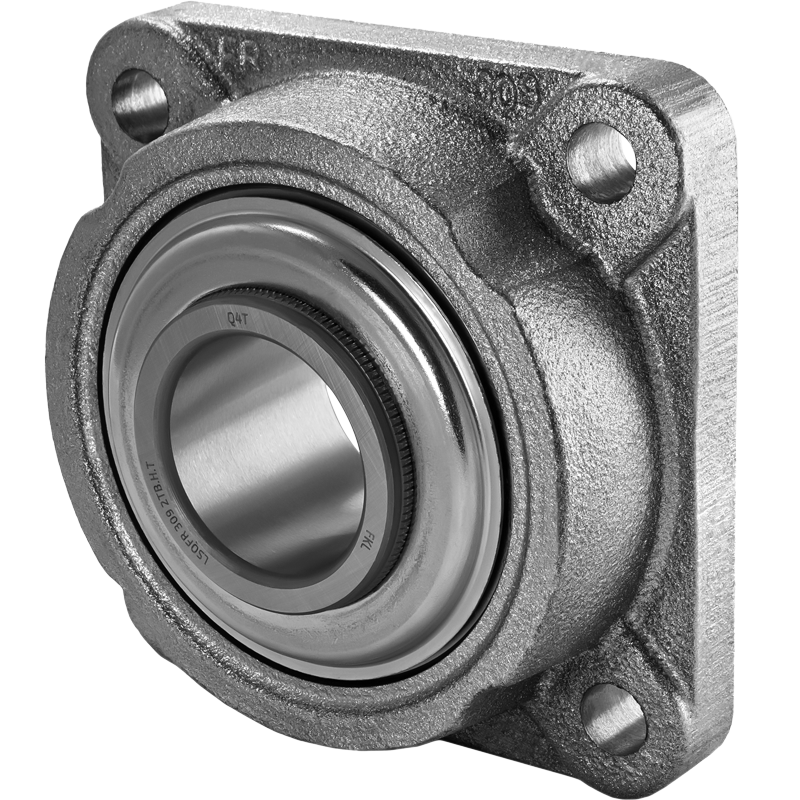

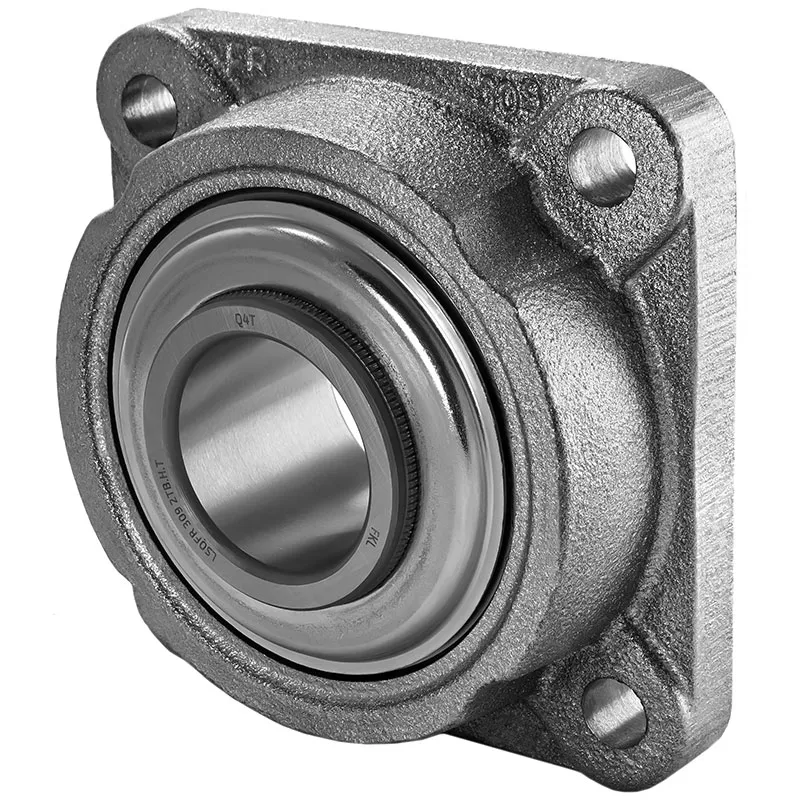

LSQFR 309 2TB.H.T

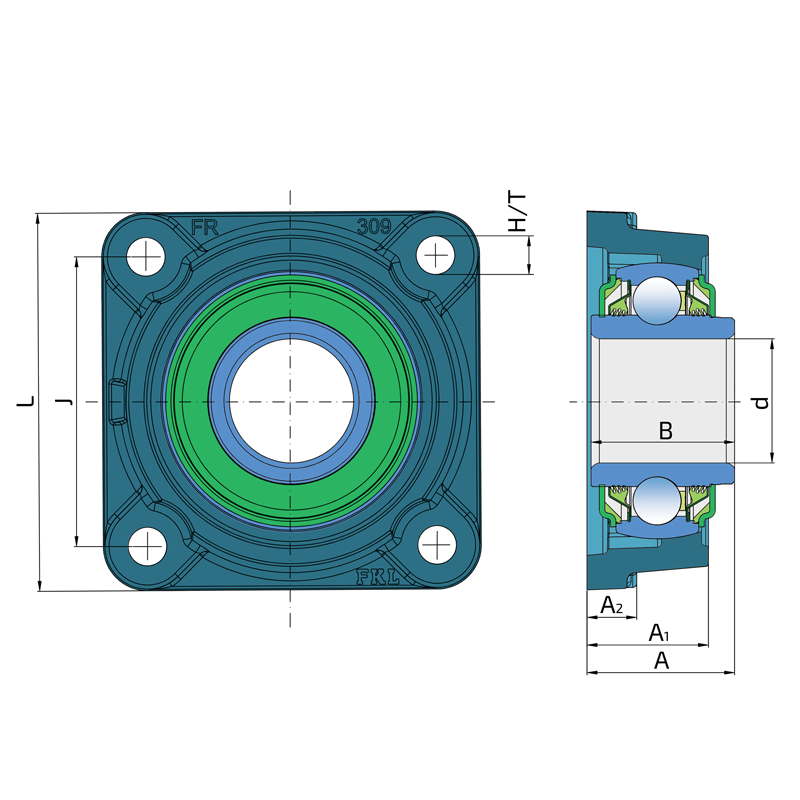

Technical specifications
| d | Bore diameter | 45 mm |
| L | Total length | 137 mm |
| J | Distance between the holes | 105 mm |
| H/T | Hole/Thread | 14 mm |
| A | Overall width | 54 mm |
| A1 | Total housing width | 44 mm |
| A2 | Housing flange thickness | 22 mm |
| B | Width inner ring | 51.1 mm |
| kg | Mass | 3.4 kg |
| Co | Static load rating | 59.6 kN |
| Cdyn | Dynamic load rating | 80.8 kN |
| Pu | Fatigue load limit | 2.503 kN |

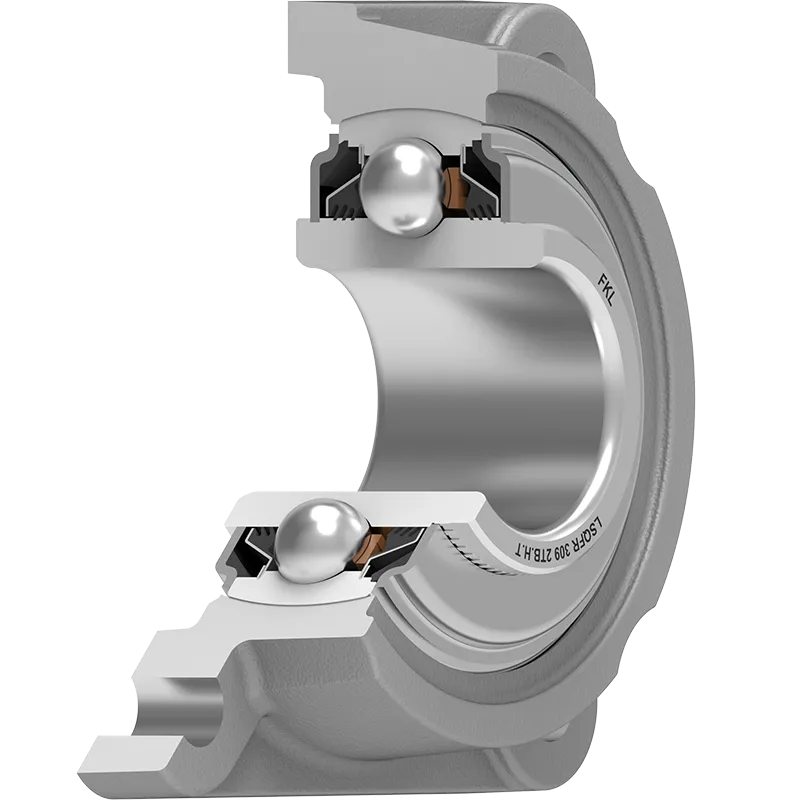

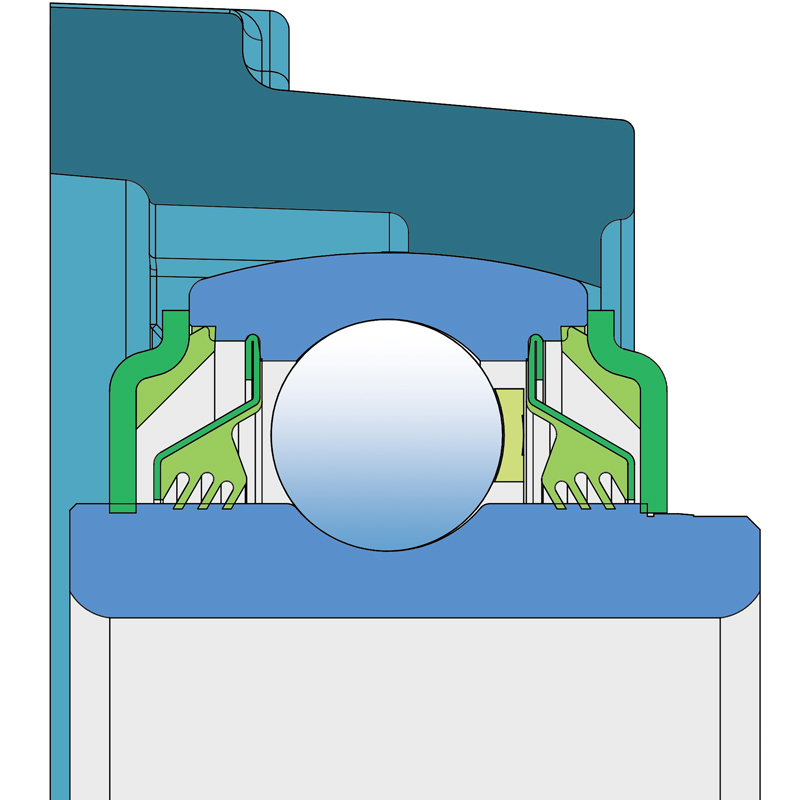

RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER
Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.
The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.
Cross references
| LAUMETRIS | LSQFR 309 2TB.H.T |
| Pervomayskdiezelmash | LSQFR 309 2TB.H.T |
| Agromach - Krasnyansky | LSQFR 309 2TB.H |
| FARMET | m18888 |
| FARMET | 18888ND |
| FARMET | m10257 |
| FARMET | m15557 |
| FARMET | m14581 |
| FARMET | m13082 |
| FARMET | m15626 |
| FARMET | 15626ND |
| FARMET | 13082ND |
| FARMET | M13082ND |
| FARMET | 4000412 |
| HFB | CJI309GGG+19000509 |
| БДМ-АГРОЦЕНТР ООО | LSQFR 309 2TB.H.T |
Installations
| FARMET | Softer |
