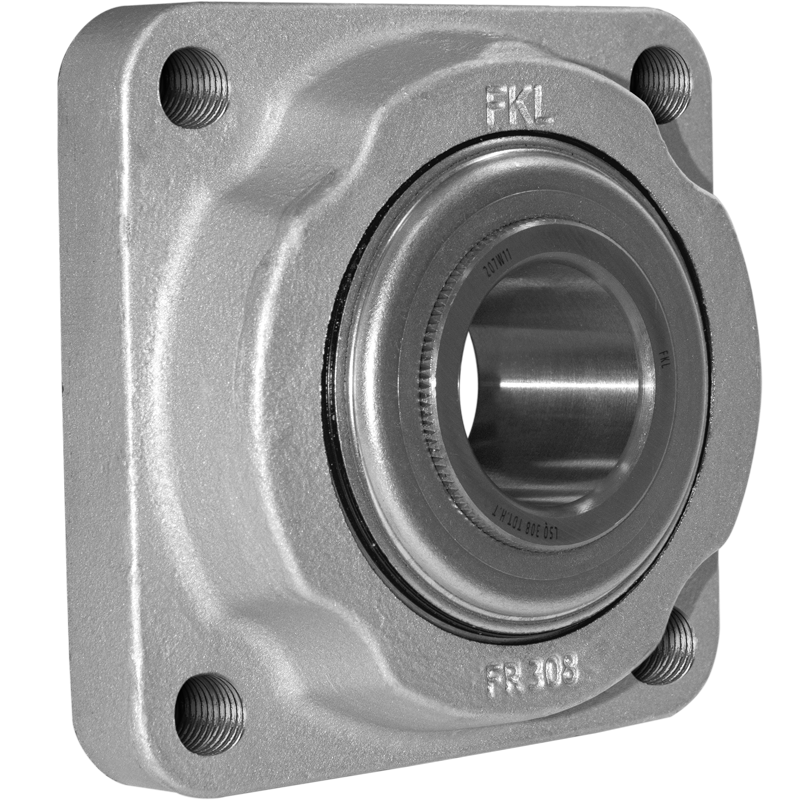

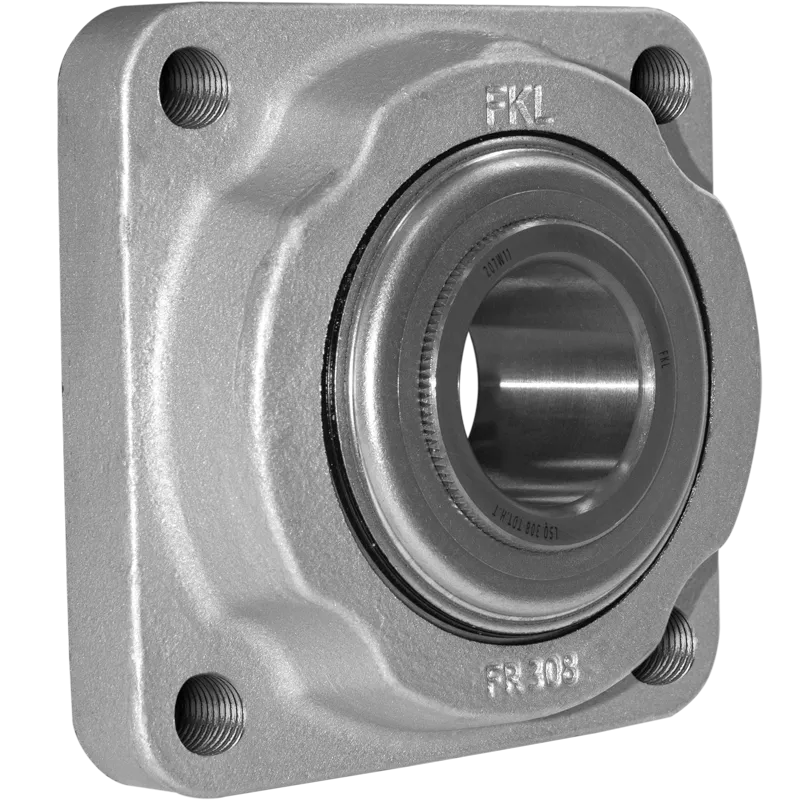

LSQFR 308 TDT.H.T

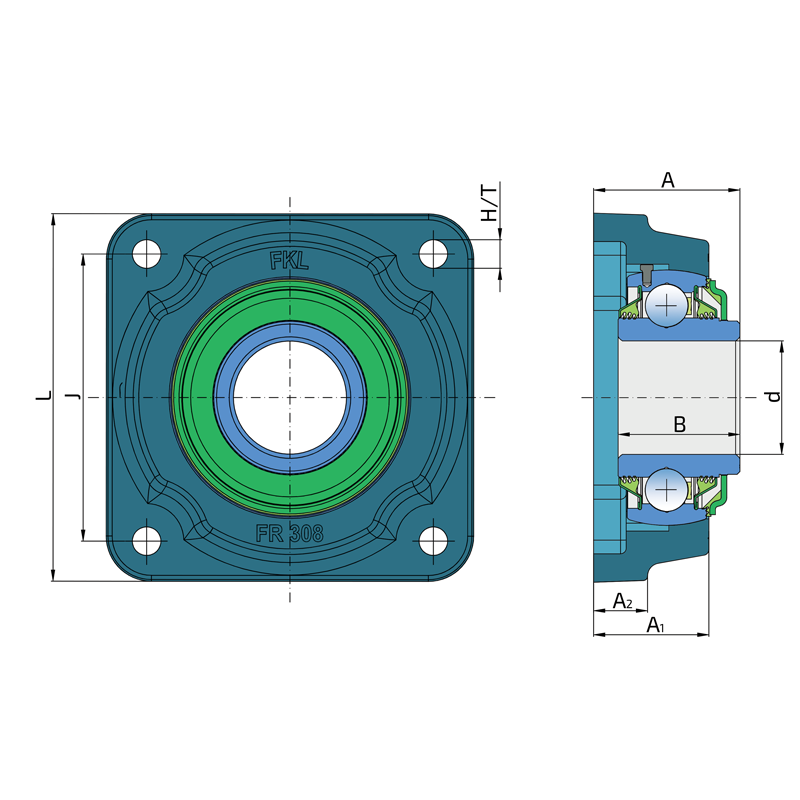

Technical specifications
| d | Bore diameter | 40 mm |
| L | Total length | 130 mm |
| J | Distance between the holes | 101.5 mm |
| H/T | Hole/Thread | M12 mm |
| A | Overall width | 51.4 mm |
| A1 | Total housing width | 40.6 mm |
| A2 | Housing flange thickness | 19 mm |
| B | Width inner ring | 42.9 mm |
| kg | Mass | 2.5 kg |
| Cdyn | Dynamic load rating | 62.3 kN |
| Co | Static load rating | 45.2 kN |
| Pu | Fatigue load limit | 1.898 kN |

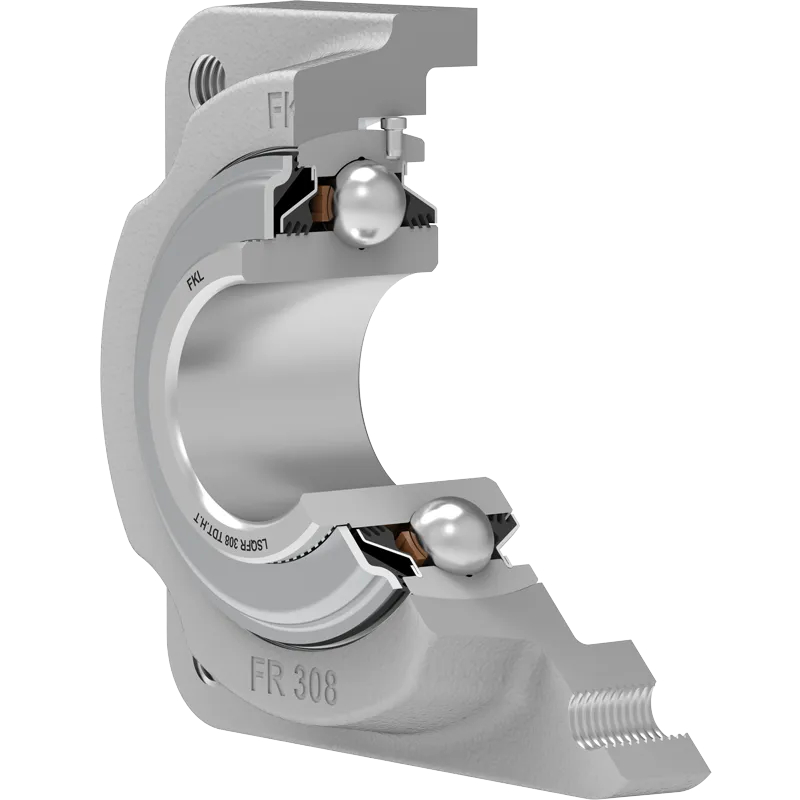

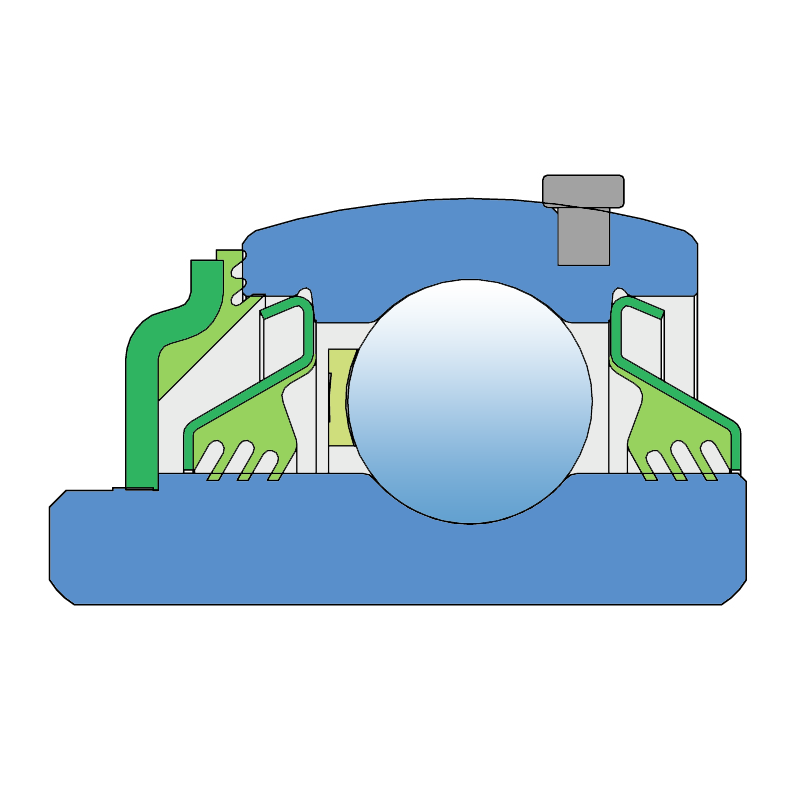

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| ЗМС-ТЕХНОЛОДЖИ ООО | LSQFR 308 TDT.H.T |
| ИННОАГРОТЕХ ООО CNH (OEM) | LSQFR 308 TDT.H.T |
| Канмаш АГРО ООО | LSQFR 308 TDT.H.T |
| ОАО Витебский мотороремонтный завод | LSQFR 308 TDT.H.T |
Installations
| КАНМАШ | КПО |
| ZMS | Любава |
| UNITED INDUSTRIAL | Ecolotiger |
| ВМРЗ | КПД-6 |
| ВМРЗ | АДС-6 |
