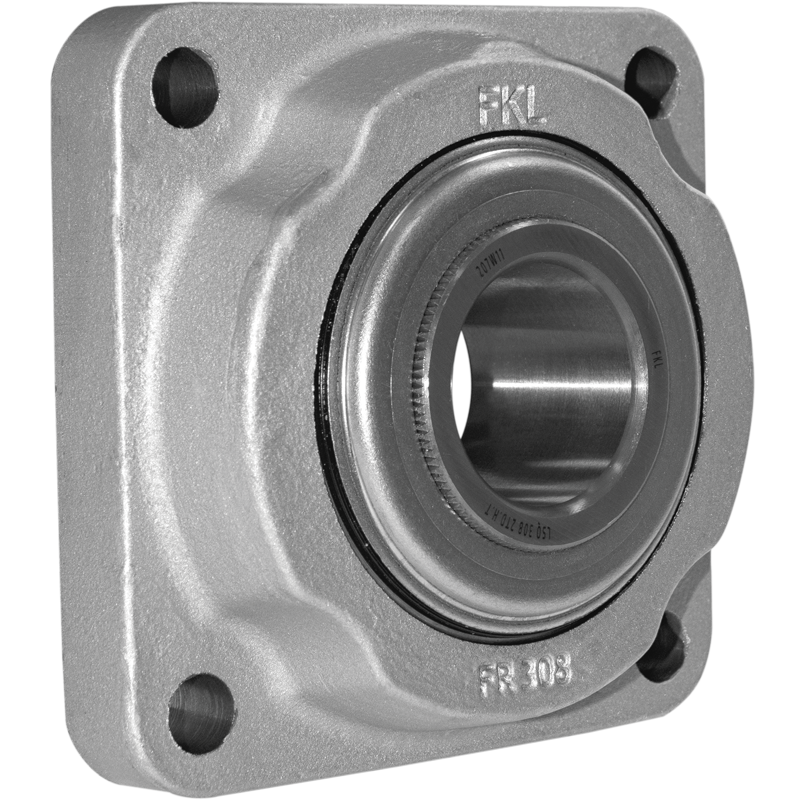

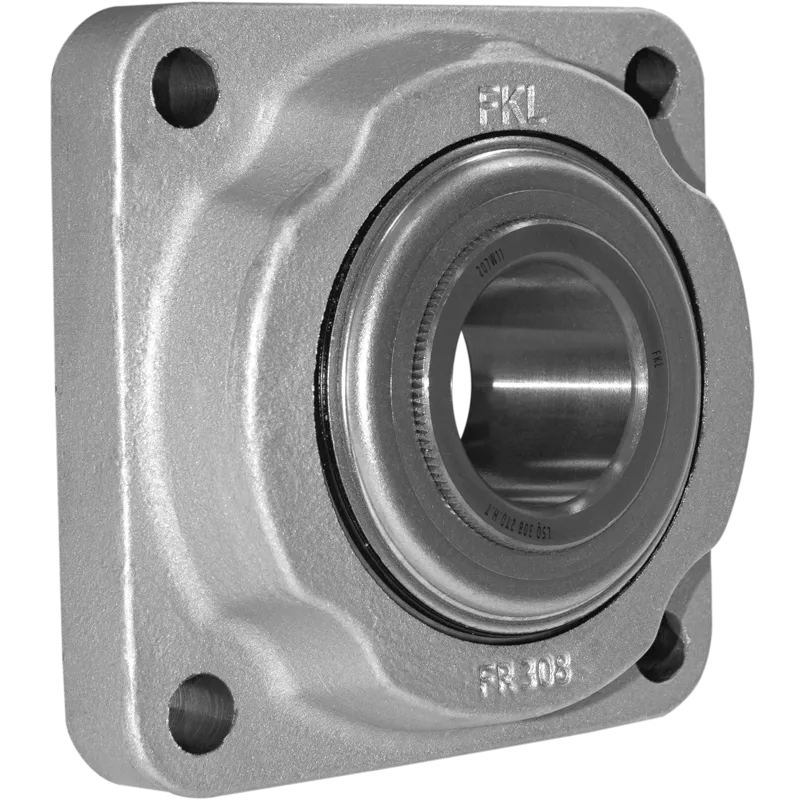

LSQFR 308 2TD.H.T

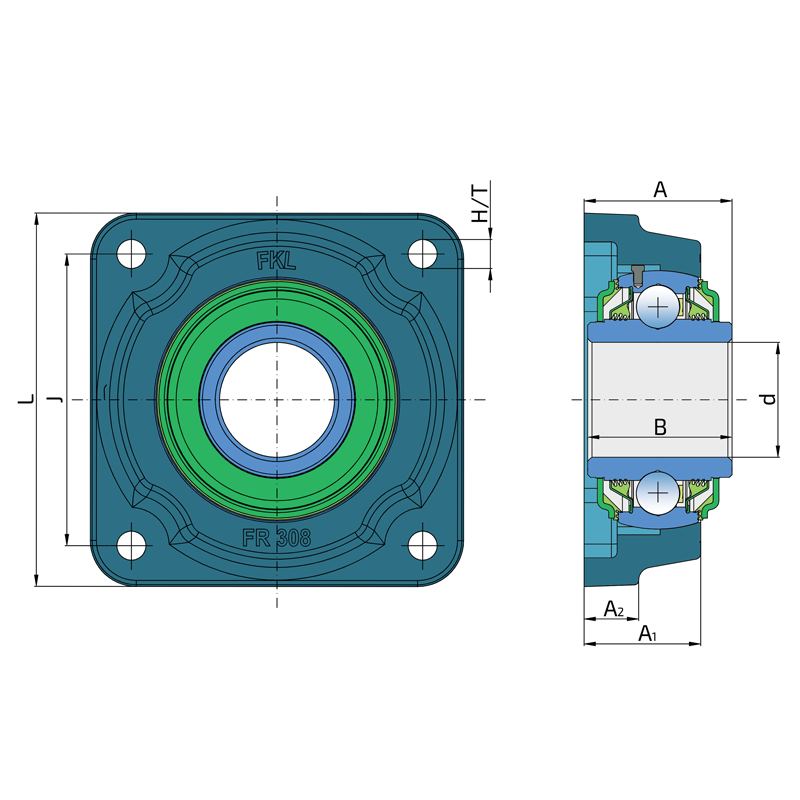

Technical specifications
| d | Bore diameter | 40 mm |
| L | Total length | 130 mm |
| J | Distance between the holes | 101.5 mm |
| H/T | Hole/Thread | 4x13 mm |
| A | Overall width | 48.4 mm |
| A1 | Total housing width | 40.6 mm |
| A2 | Housing flange thickness | 19 mm |
| B | Width inner ring | 45.8 mm |
| kg | Mass | 2.51 kg |
| Cdyn | Dynamic load rating | 41 kN |
| Co | Static load rating | 24 kN |
| Pu | Fatigue load limit | 1.01 kN |

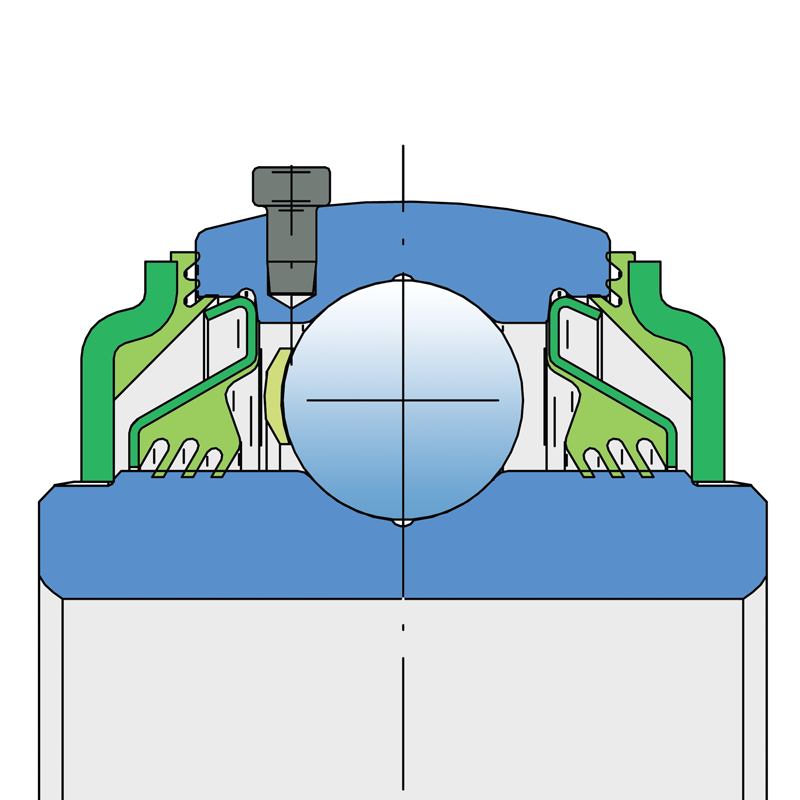

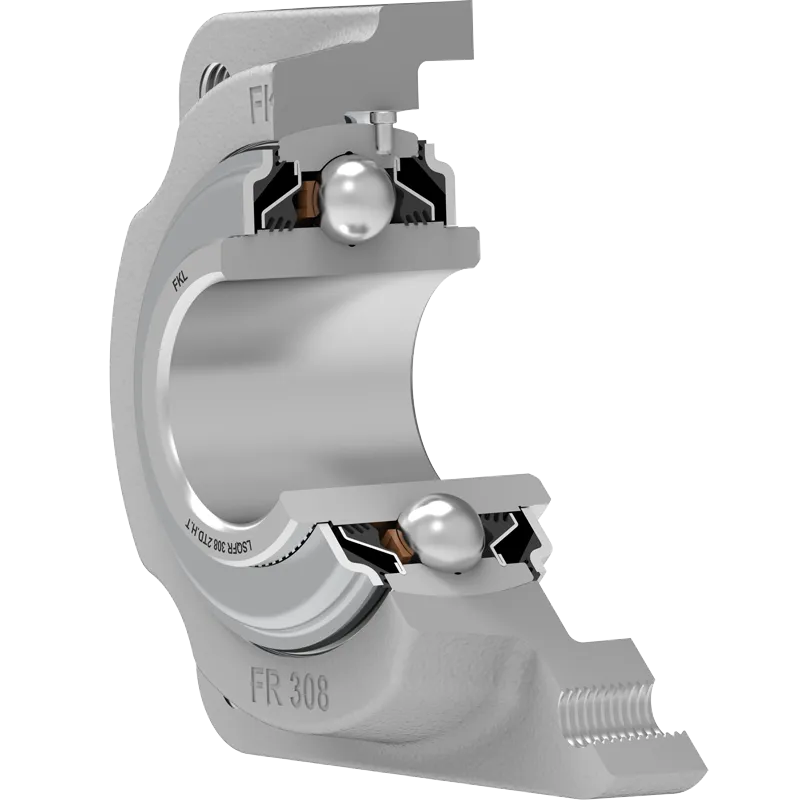

RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER
Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.
The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.
Cross references
| HORSCH | 00240028 |
| INA | TCJ40 |
| SNR | UCFE308A02X3 |
| SNR | UCFE308A05AGR |
Installations
| HORSCH | TIGER |
| HORSCH | JOKER |
| HORSCH | TERRANO |
| HORSCH | CRUISER |
| HORSCH | PRONTO |
| HORSCH | AIRSEEDER |
| HORSCH | MAESTRO |
