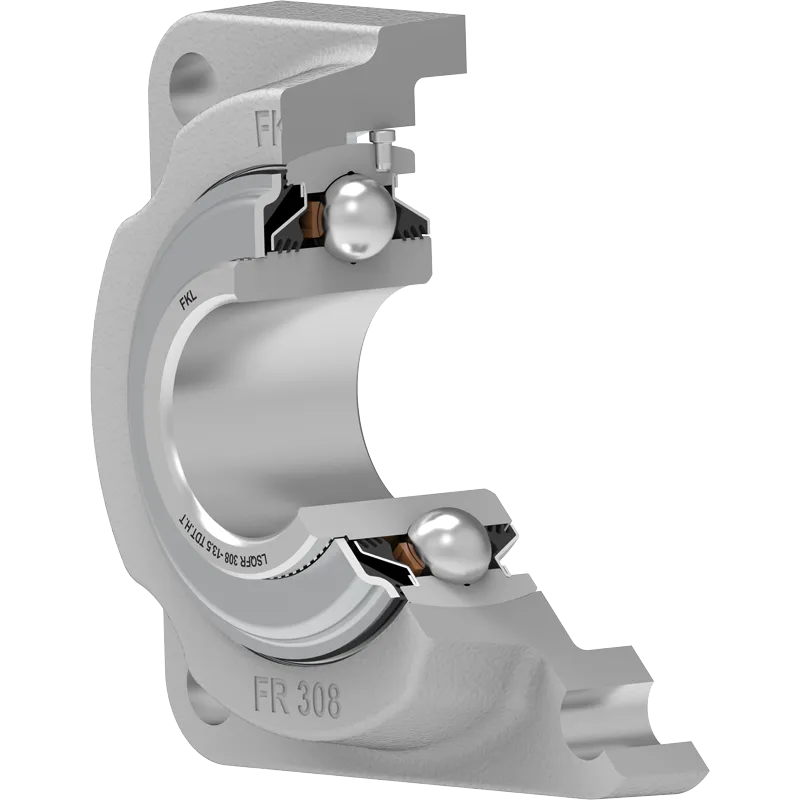

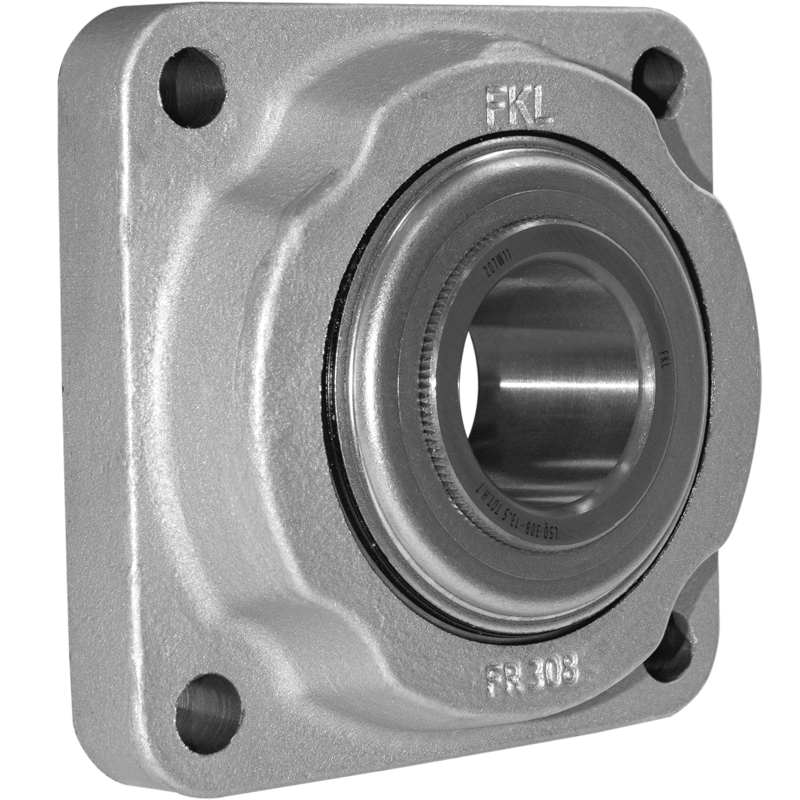

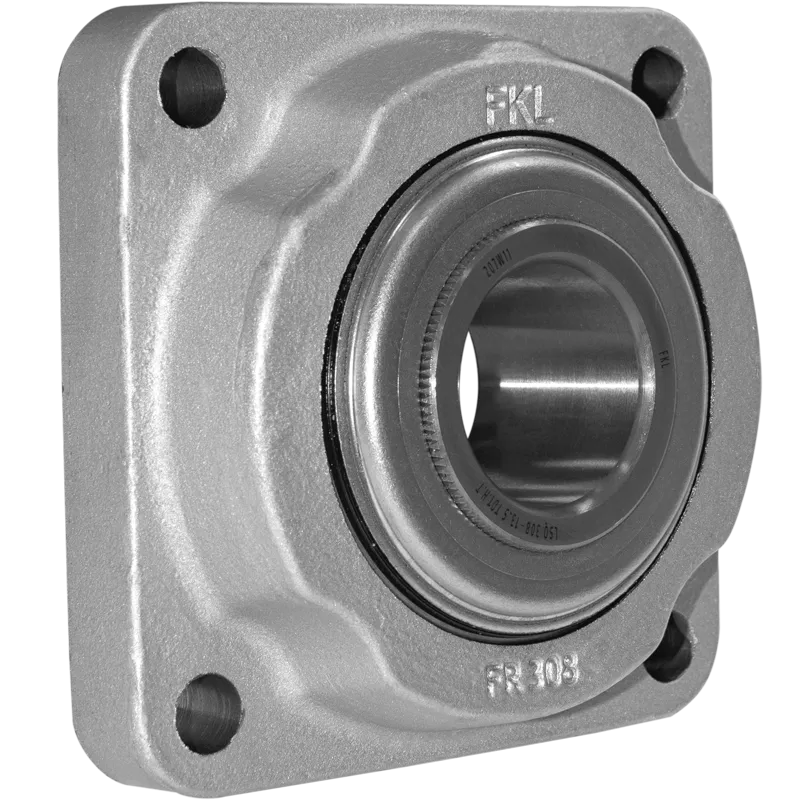

LSQFR 308-13.5 TDT.H.T

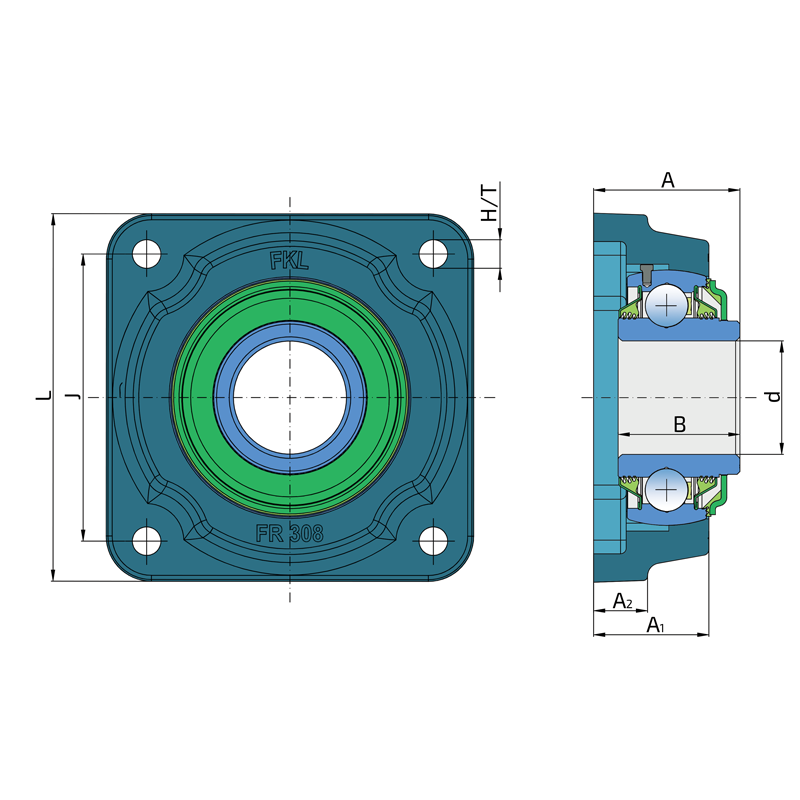

Technical specifications
| d | Bore diameter | 40 mm |
| L | Total length | 130 mm |
| J | Distance between the holes | 101.5 mm |
| H/T | Hole/Thread | 13.5 mm |
| A | Overall width | 51.4 mm |
| A1 | Total housing width | 40.6 mm |
| A2 | Housing flange thickness | 19 mm |
| B | Width inner ring | 42.9 mm |
| kg | Mass | 2.5 kg |
| Cdyn | Dynamic load rating | 62.3 kN |
| Co | Static load rating | 45.2 kN |
| Pu | Fatigue load limit | 1.898 kN |

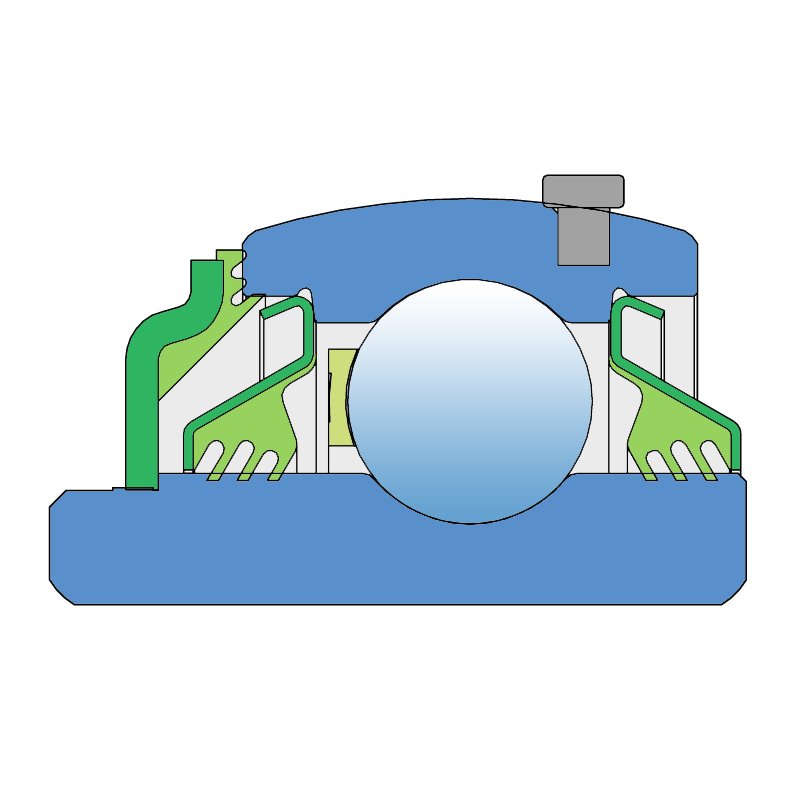

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| АЗСМ АО (Машзавод) | LSQFR 308-13.5 TDT.H.T |
| ВОЛГААГРОМАШ ООО | LSQFR 308-13.5 TDT.H.T |
| Agromash-Kalina | LSQFR 308-13.5 TDT.H.T |
| СООО Элезер холдинг Амкодор | LSQFR 308-13.5 TDT.H.T |
Installations
| HORSCH | Tiger |
| HORSCH | Terrano |
| HORSCH | Sprinter |
| HORSCH | Pronto |
| HORSCH | Maistro |
| HORSCH | Maestro |
| HORSCH | Joker |
| HORSCH | Finer |
| HORSCH | Cura |
| HORSCH | Cultro |
| HORSCH | Cruiser |
| VELES | БДП |
| ВОЛГААГРОМАШ | Антарес КМП-14 |
| ВОЛГААГРОМАШ | ГРН |
