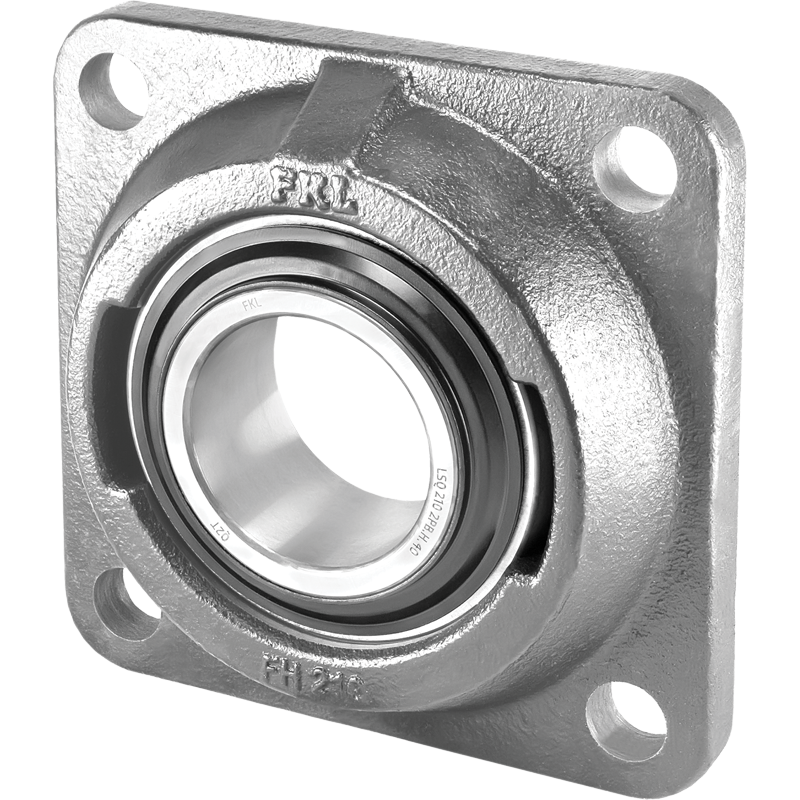

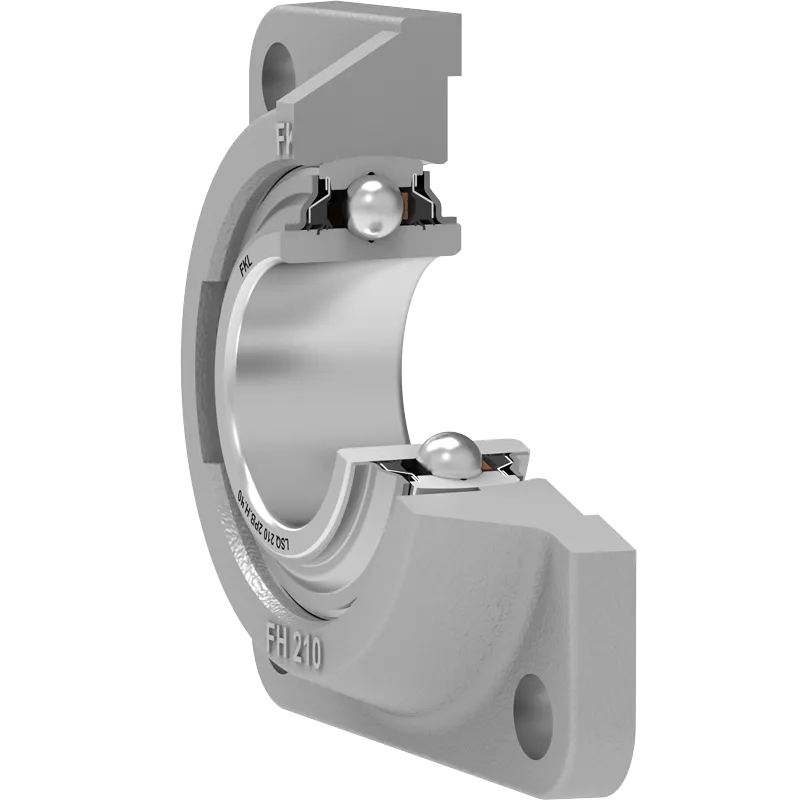

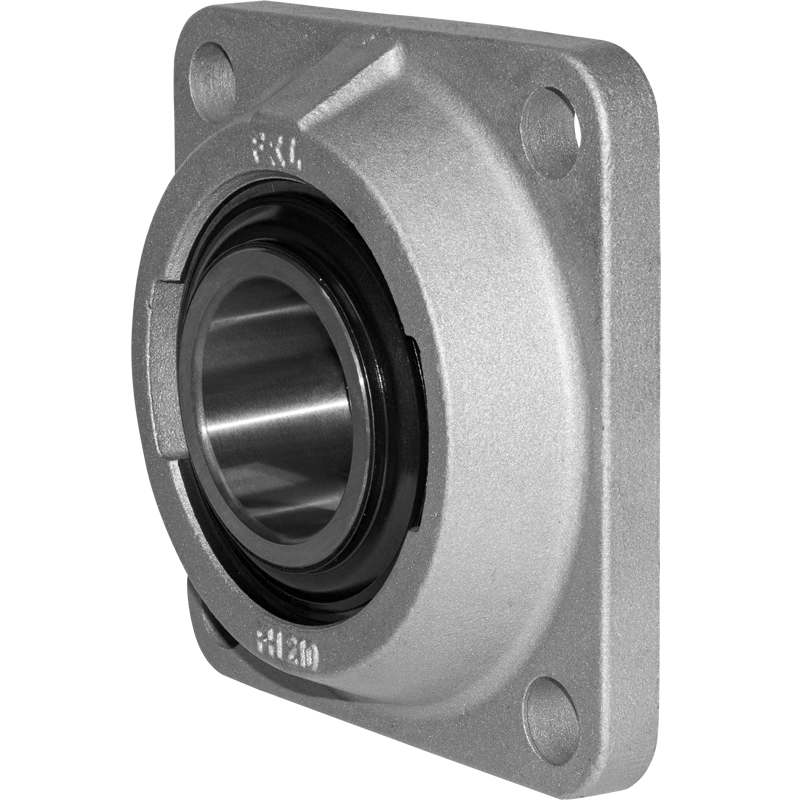

LSQFH 210 2PB.H.40

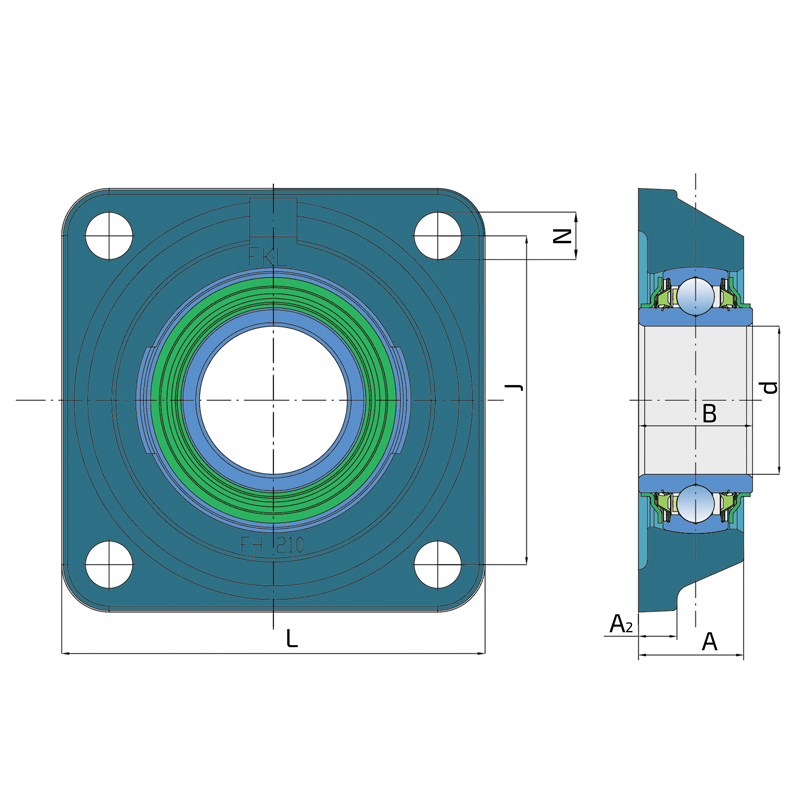

Technical specifications
| J |
Distance between the holes |
111 mm |
| L |
Total length |
143 mm |
| d |
Bore diameter |
40 mm |
| B |
Width inner ring |
38.4 mm |
| N |
Hole diameter |
17 mm |
| A |
Overall width |
38.5 mm |
| A2 |
Housing flange thickness |
13 mm |
| kg |
Mass |
2.47 kg |
| Cdyn |
Dynamic load rating |
56 kN |
| Co |
Static load rating |
45 kN |
| Pu |
Fatigue load limit |
1.89 kN |

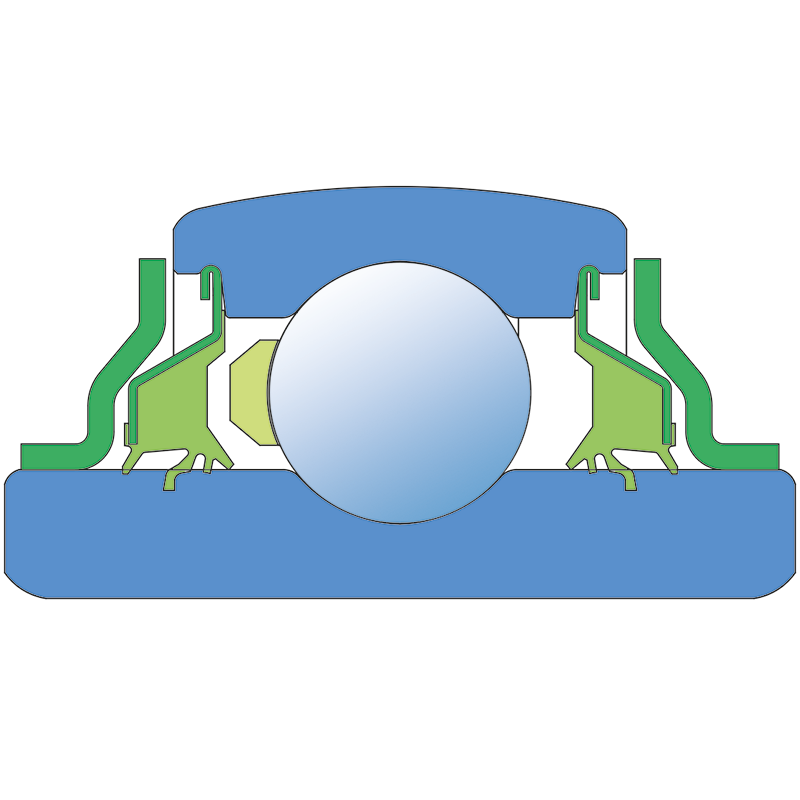

PB SEAL / PB SEAL (2PB)
A 5-lip seal with Metal flinger ring on the both side of the
bearing, provides equal protection against contamination.
5-lip seal provides a high level of the bearing protection from
impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects
the seal from mechanical damage.
Cross references
| GASPARDO |
F04060020R |
| GASPARDO |
F-606220-0200.IBB |
| PEER |
UCF308-40MM-AP-M |
| INA |
IBBU-40X143X38,4-IA03 |
Installations
| GASPARDO |
Attila |
| GASPARDO |
Terremoto |
| GASPARDO |
Grator |
| GASPARDO |
Sandokan |
