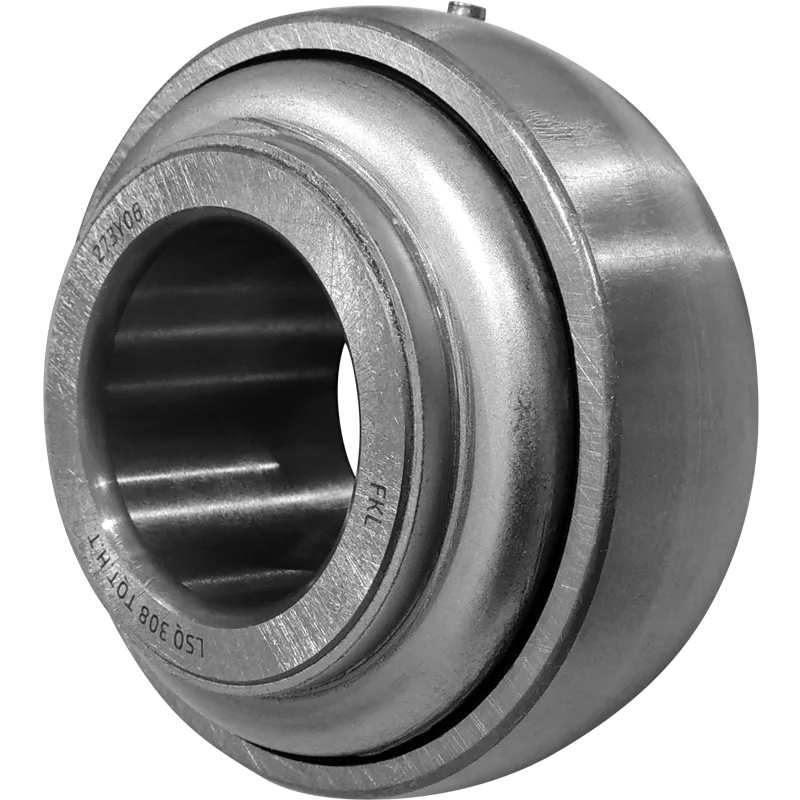

LSQ 308 TQT.H.T

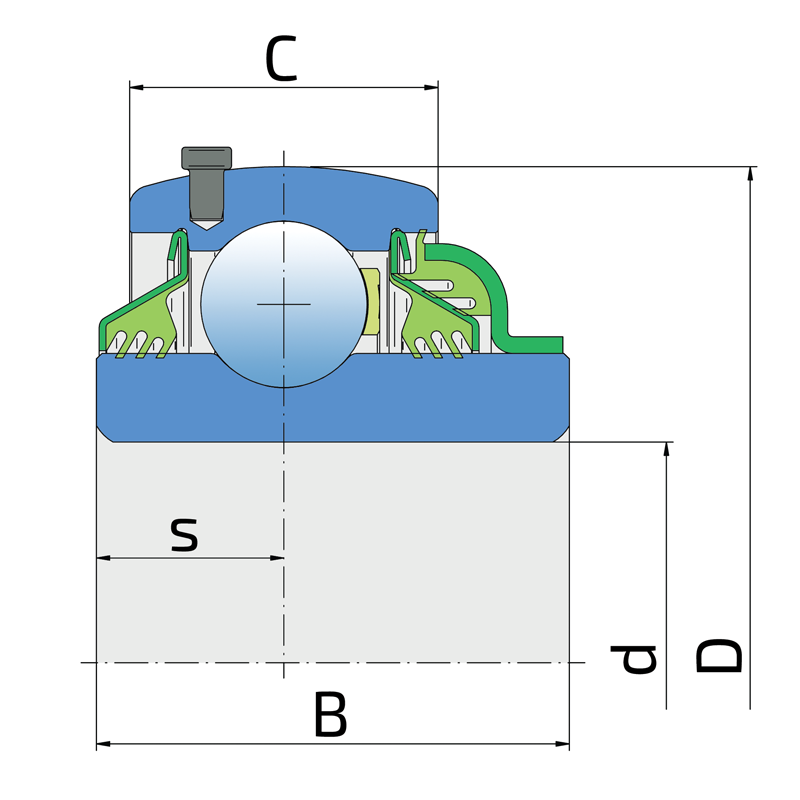

Technical specifications
| d | Bore diameter | 40 mm |
| D | Outside diameter | 90 mm |
| B | Width inner ring | 42.9 mm |
| C | Width outer ring | 28 mm |
| s | Distance from inner ring side face to raceway centre | 17 mm |
| kg | Mass | 0.896 kg |
| Cdyn | Dynamic load rating | 62.3 kN |
| Co | Static load rating | 45.2 kN |
| Pu | Fatigue load limit | 1.898 kN |

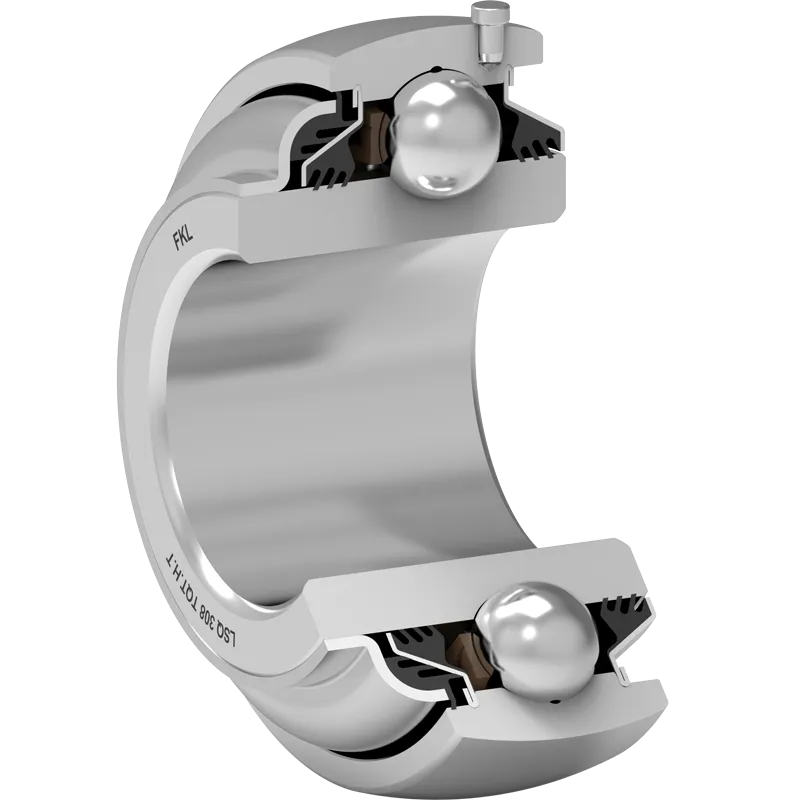

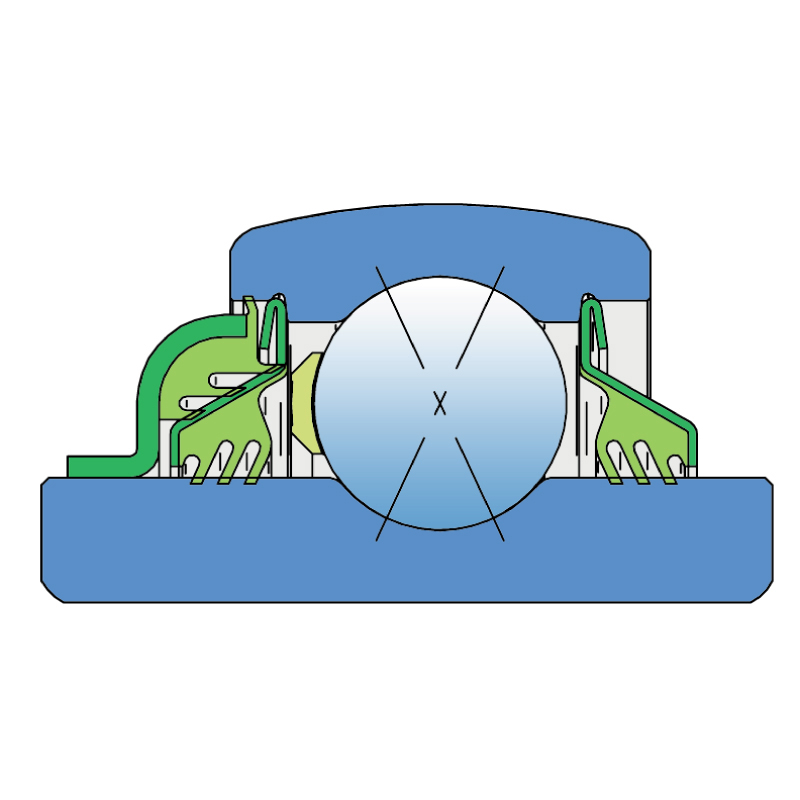

TQ SEAL / T SEAL
3-lip seal on the base side and 7-lip seal on the front side which is exposed to contaminants.
The innovative 7-lip seal ensures a perfect fit on the inner ring, delivering exceptional sealing performance and durability even under extreme conditions. The TQT seal effectively prevent the ingress of water, snow, mud, and dust, providing robust protection of the bearing and extending its lifetime.
