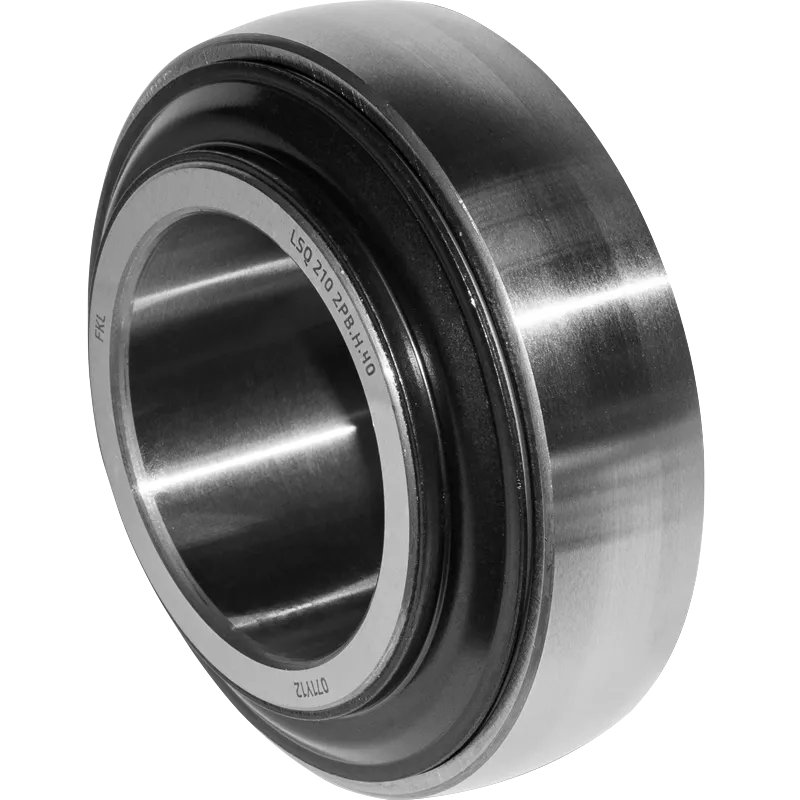

LSQ 210 2PB.H.40

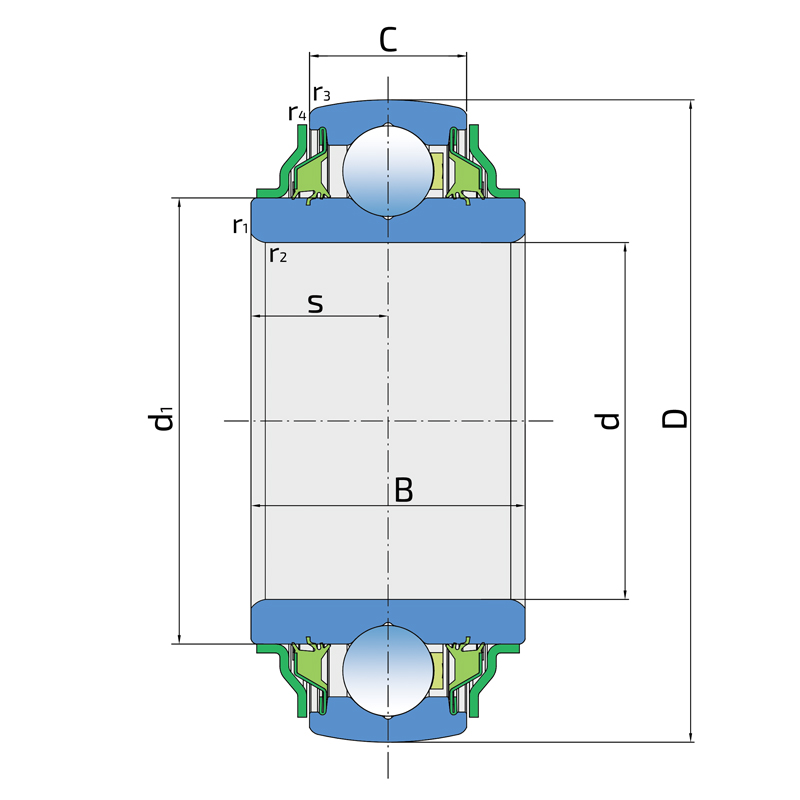

Technical specifications
| d | Bore diameter | 40 mm |
| D | Outside diameter | 90 mm |
| B | Width inner ring | 38.4 mm |
| C | Width outer ring | 22 mm |
| d1 | Inner ring outside diameter | 62.5 mm |
| s | Distance from inner ring side face to raceway centre | 19.2 mm |
| r1,2 | Inner ring Chamfer dimension | 1 mm |
| r3,4 | Outside ring Chamfer dimension | 1.2 mm |
| kg | Mass | 0.53 kg |
| Cdyn | Dynamic load rating | 56 kN |
| Co | Static load rating | 45 kN |
| Pu | Fatigue load limit | 1.89 kN |

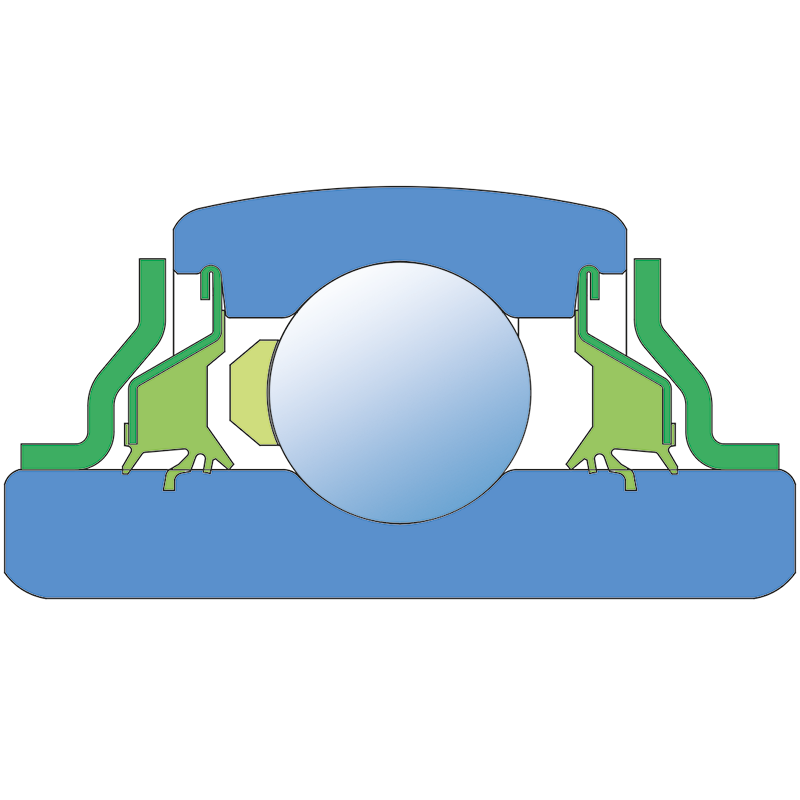

PB SEAL / PB SEAL (2PB)
A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
