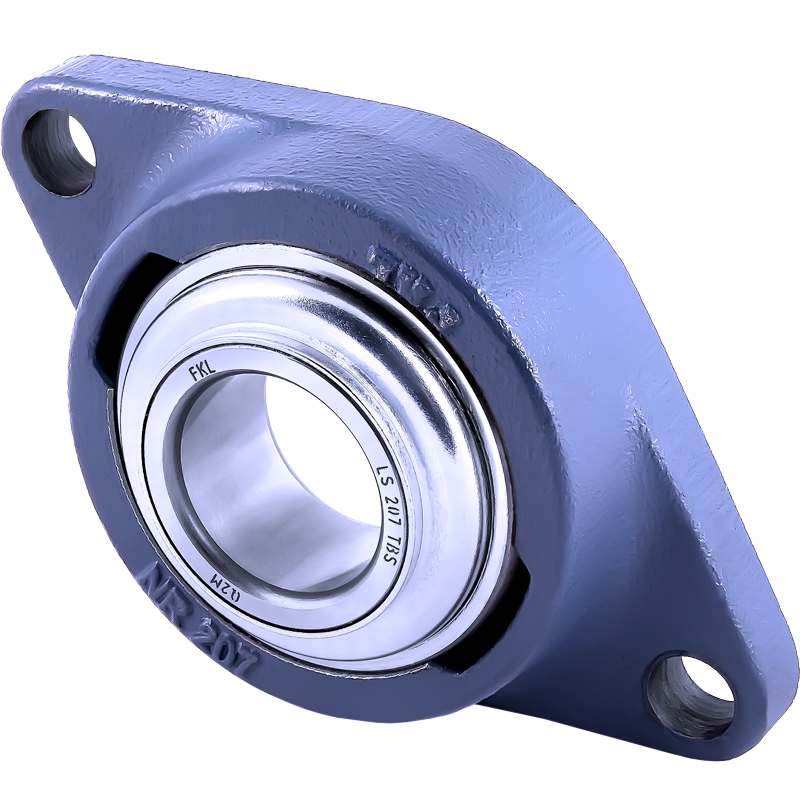

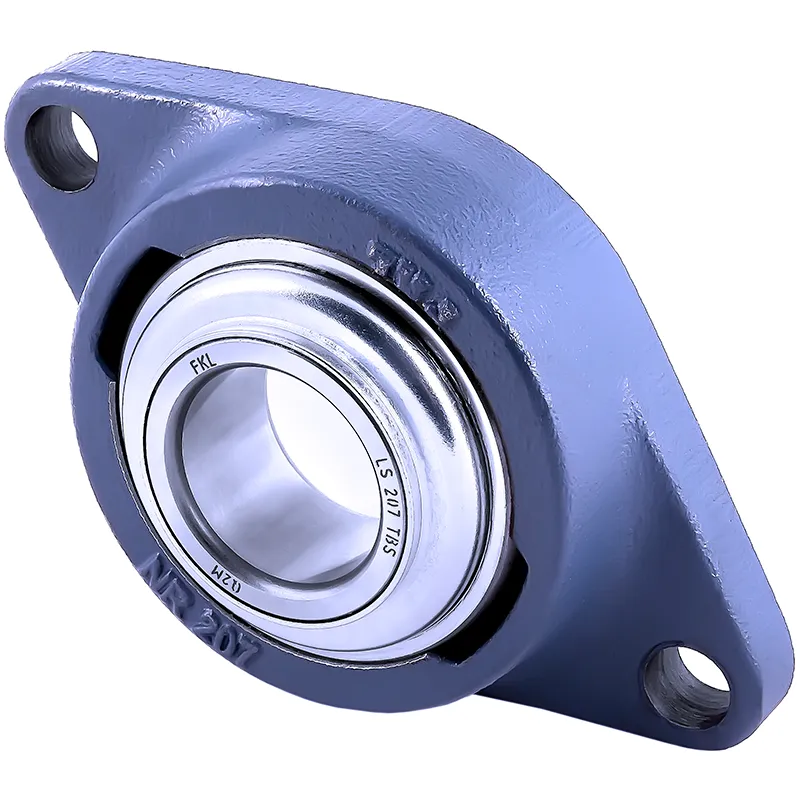

LSNR 207 TBS

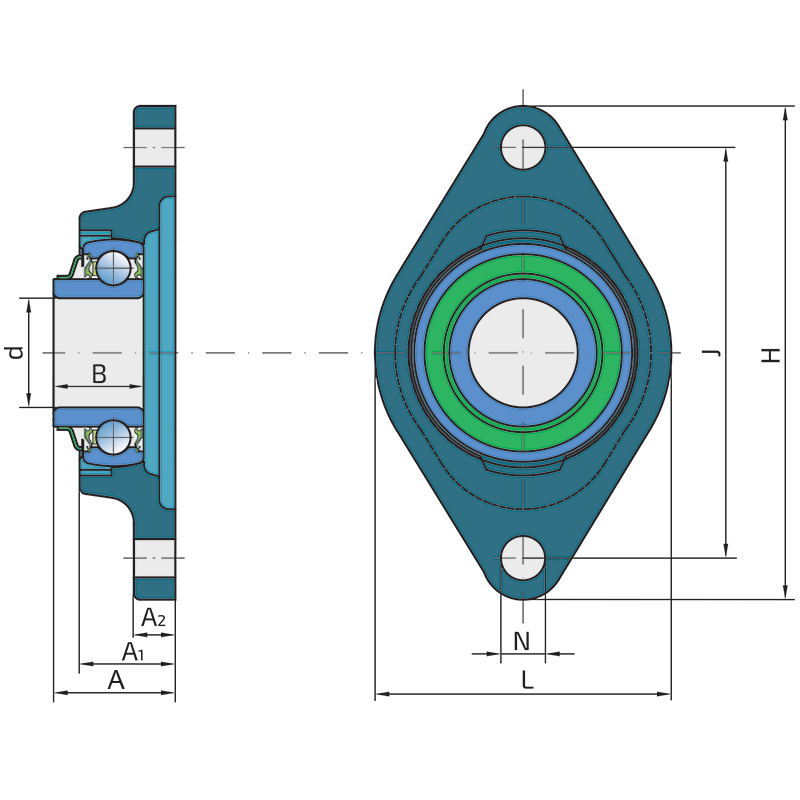

Technical specifications
| d | Bore diameter | 35 mm |
| H | Housing height | 155 mm |
| L | Total length | 93 mm |
| J | Distance between the holes | 130 mm |
| A | Overall width | 40 mm |
| A1 | Total housing width | 31 mm |
| A2 | Housing flange thickness | 13 mm |
| B | Width inner ring | 28.3 mm |
| N | Hole diameter | 14 mm |
| kg | Mass | 1.05 kg |
| Co | Static load rating | 15.3 kN |
| Cdyn | Dynamic load rating | 25.5 kN |
| Pu | Fatigue load limit | 1.071 kN |

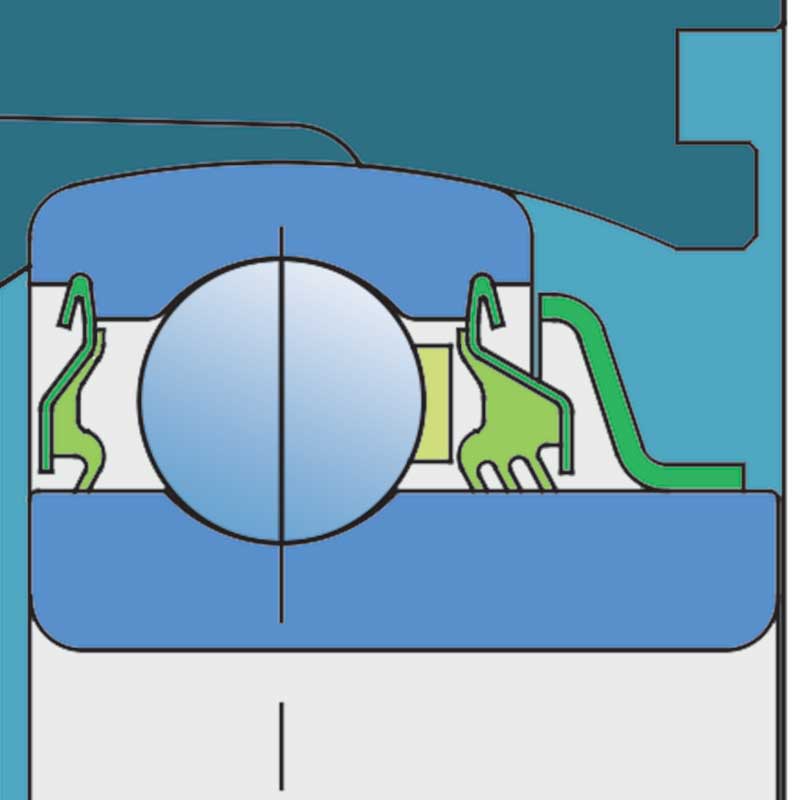

S SEAL / T SEAL+METAL FLINGER RING
S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
Cross references
| LEMKEN | 3199352 |
| RBF | PN00030 |
| INA | F-232812.03.RCJT |
| BELLA-M.GEORGIEV | LSNR 207 TBS |
Installations
| LEMKEN | KOMPAKTOR |
