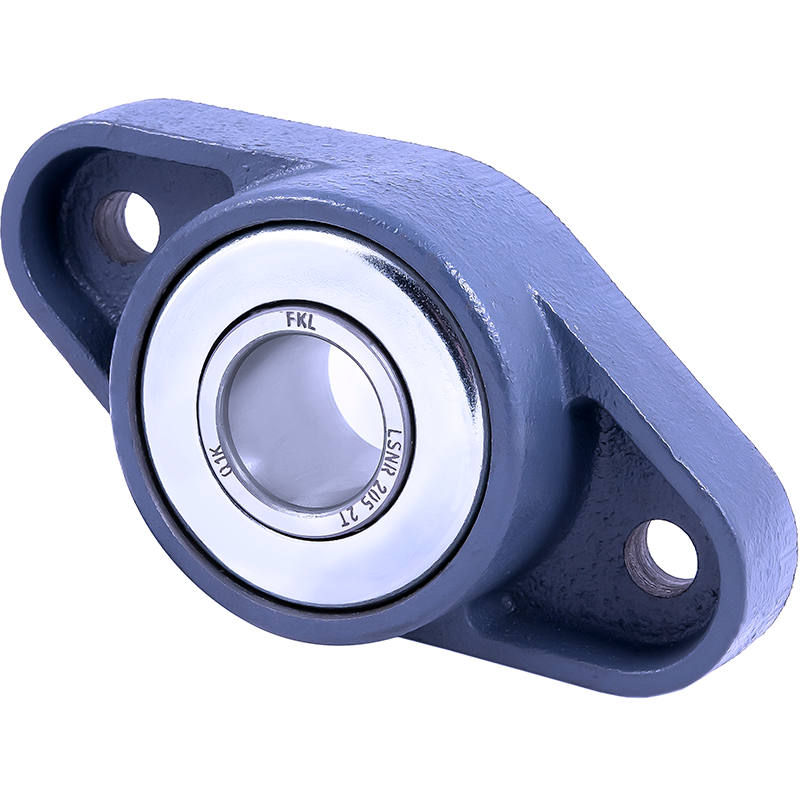

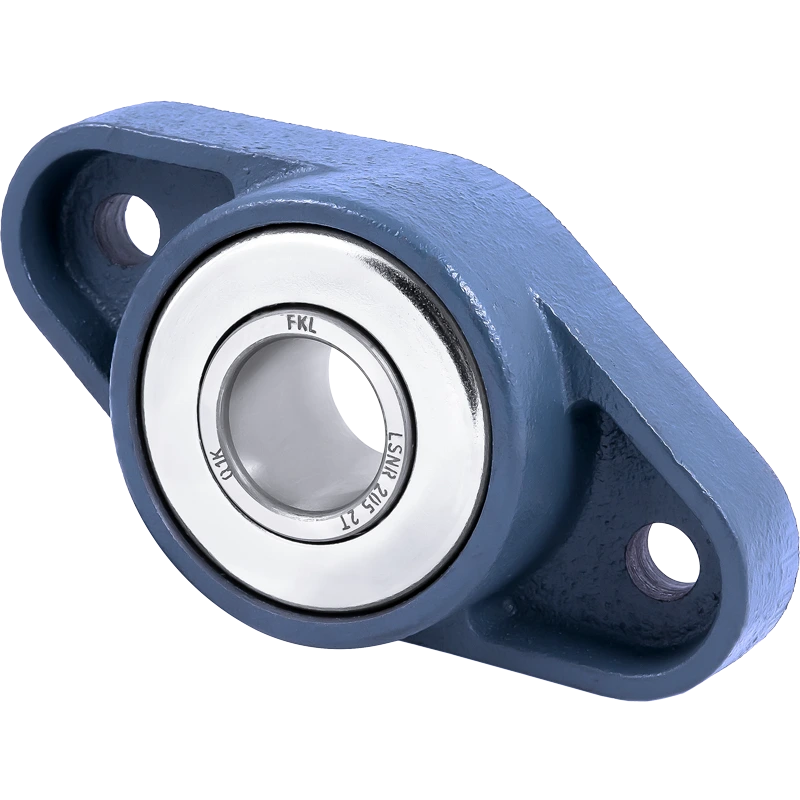

LSNR 205 2T

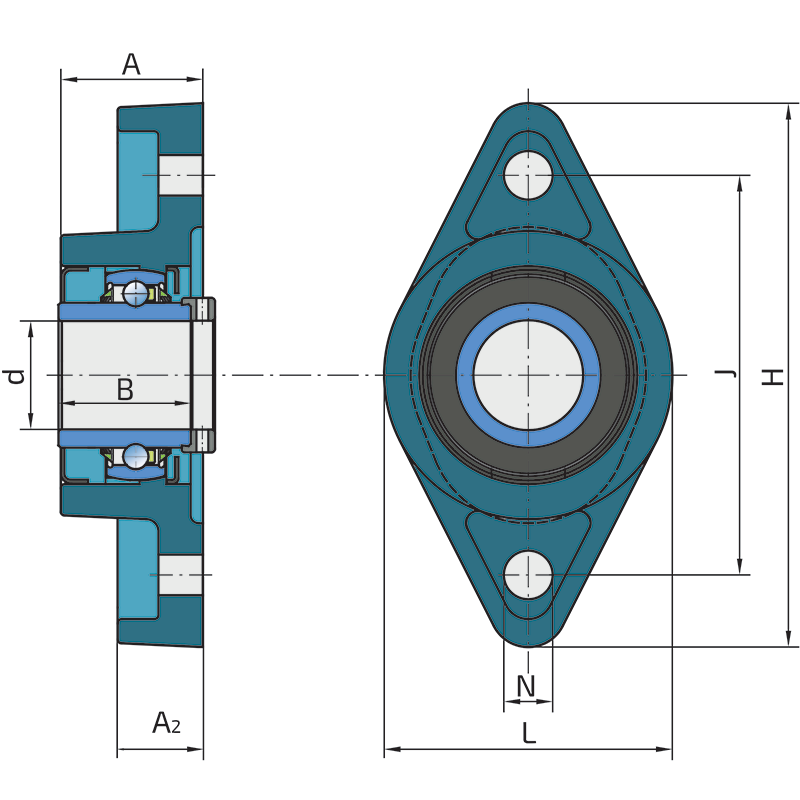

Technical specifications
| d |
Bore diameter |
25 mm |
| H |
Housing height |
135 mm |
| L |
Total length |
71 mm |
| J |
Distance between the holes |
99 mm |
| A |
Overall width |
35 mm |
| A2 |
Housing flange thickness |
21 mm |
| B |
Width inner ring |
34.8 mm |
| N |
Hole diameter |
11 mm |
| kg |
Mass |
0.91 kg |
| Cdyn |
Dynamic load rating |
14 kN |
| Co |
Static load rating |
7.8 kN |
| Pu |
Fatigue load limit |
0.328 kN |

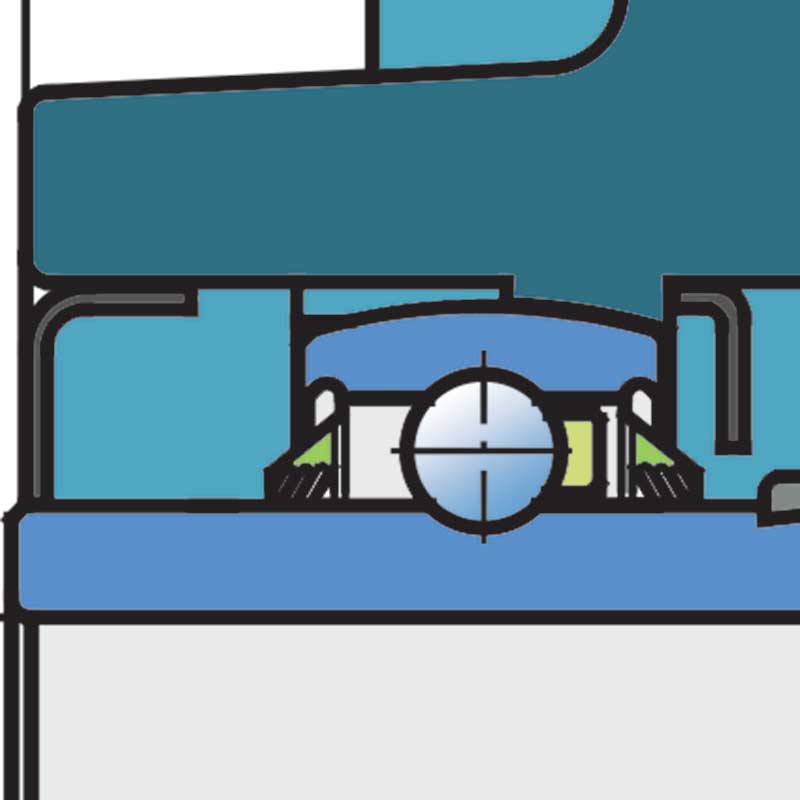

METAL COVER RING+T SEAL / T SEAL+METAL COVER RING
3-lip seal on the base side and 3-lip seal with Metal cover ring on the front side which is exposed to contaminants.
The 3-lip seal on the both side protects the bearing from contaminants. The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Cross references
| LEMKEN |
3199367 |
| RBF |
PN00028 |
| INA |
F233449 |
| INA |
RCJT 25X134X44.5GGG |
| INA |
RCJT 25CC AH02 |
