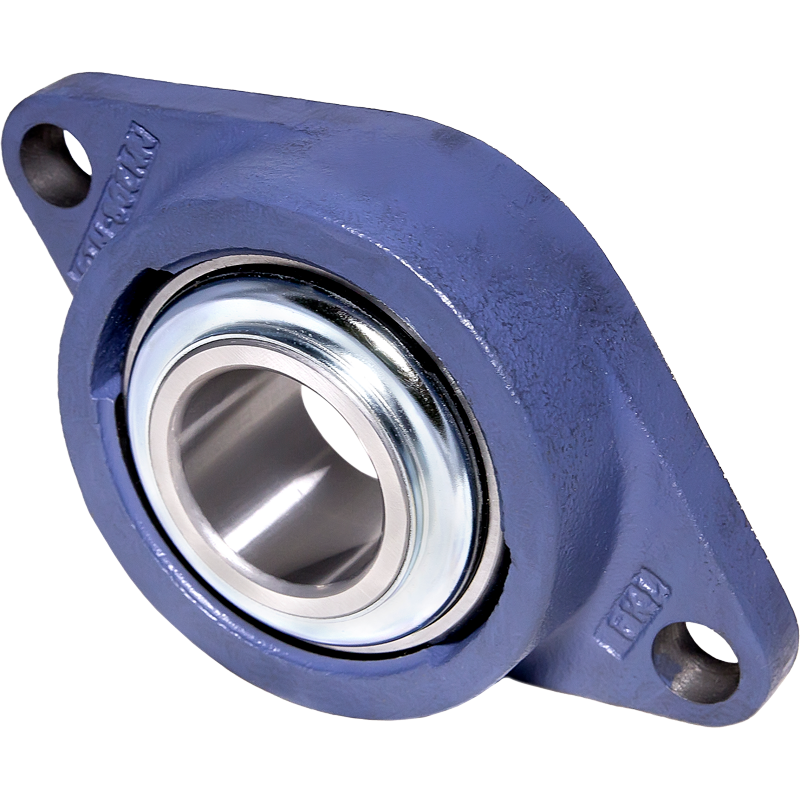

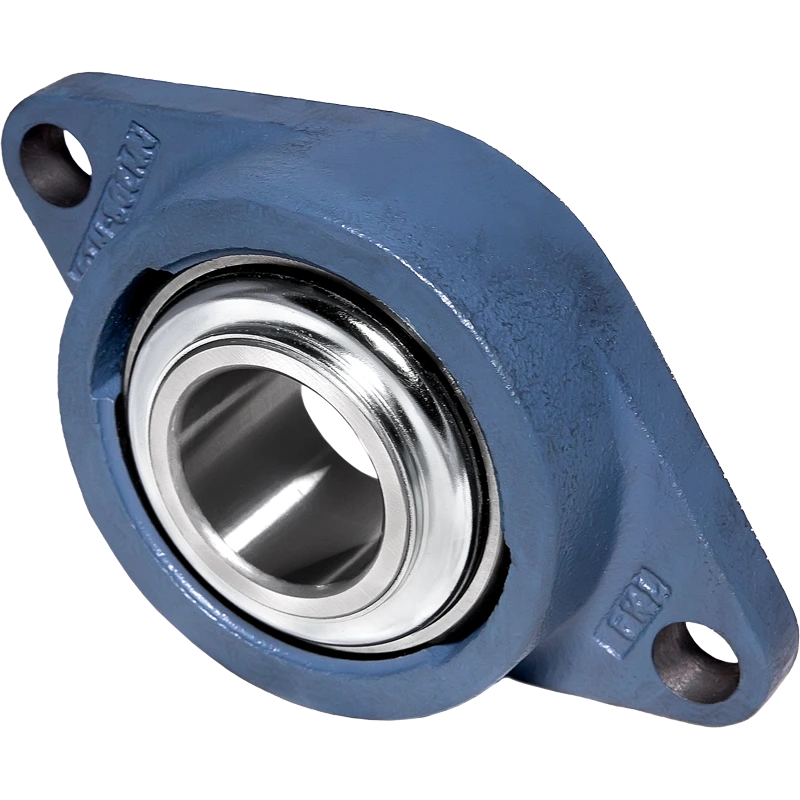

LSNN 208 TDT.H.T*K

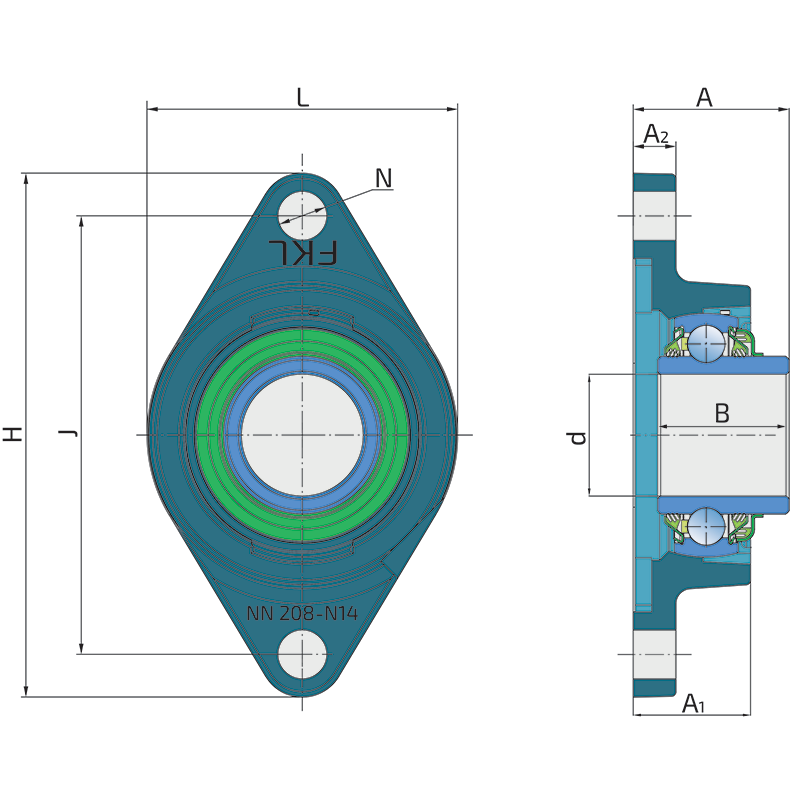

Technical specifications
| d | Bore diameter | 40 mm |
| H | Housing height | 172 mm |
| J | Distance between the holes | 144 mm |
| L | Diameter of housings | 102 mm |
| A | Overall width | 51.2 mm |
| A1 | Total housing width | 38.5 mm |
| A2 | Housing flange thickness | 14 mm |
| B | Width inner ring | 43.2 mm |
| N | Hole diameter | 16 mm |
| kg | Mass | 1.78 kg |
| Cdyn | Dynamic load rating | 30.7 kN |
| Co | Static load rating | 19 kN |
| Pu | Fatigue load limit | 0.798 kN |

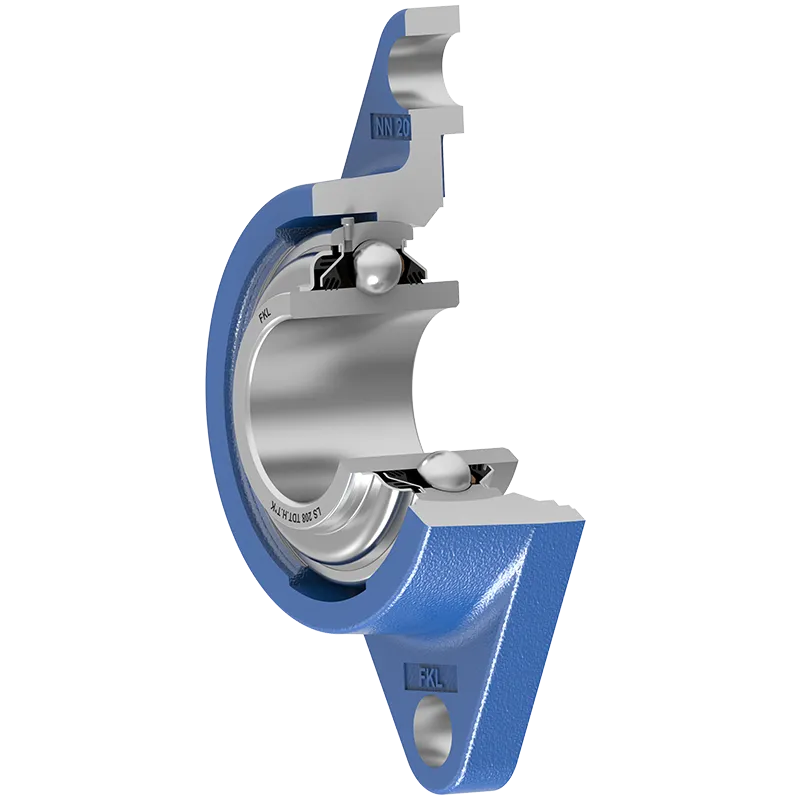

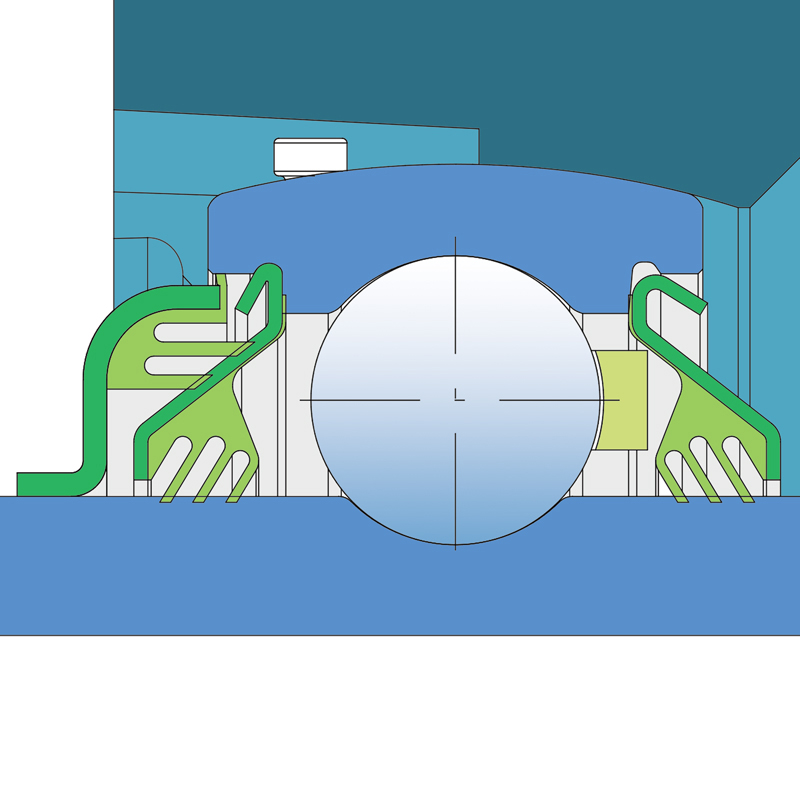

DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Cross references
| KOCKERLING | 567148 |
| SNR | GGF40A04+UC208X6 |
| Грязинский культиваторный завод ПАО | LSNN 208 TDT.H.T*K |
| ЗМС-ТЕХНОЛОДЖИ ООО | LSNN 208 TDT.H.T*K |
Installations
| KÖCKERLING | ALLROUNDER |
| KÖCKERLING | VEKTOR |
| KÖCKERLING | TRIO |
| KÖCKERLING | VARIO |
| KÖCKERLING | MASTER |
| KÖCKERLING | REBELL |
| KÖCKERLING | QUADRO |
| KÖCKERLING | ULTIMA |
| KÖCKERLING | VITU |
| ГКЗ (GRONN) | КПУ 9/12 |
