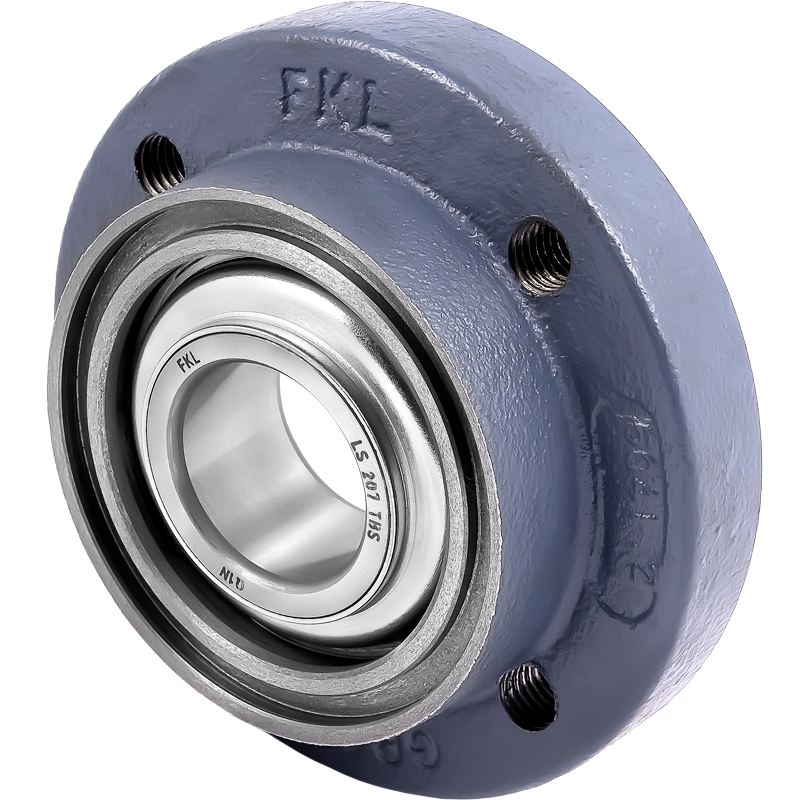

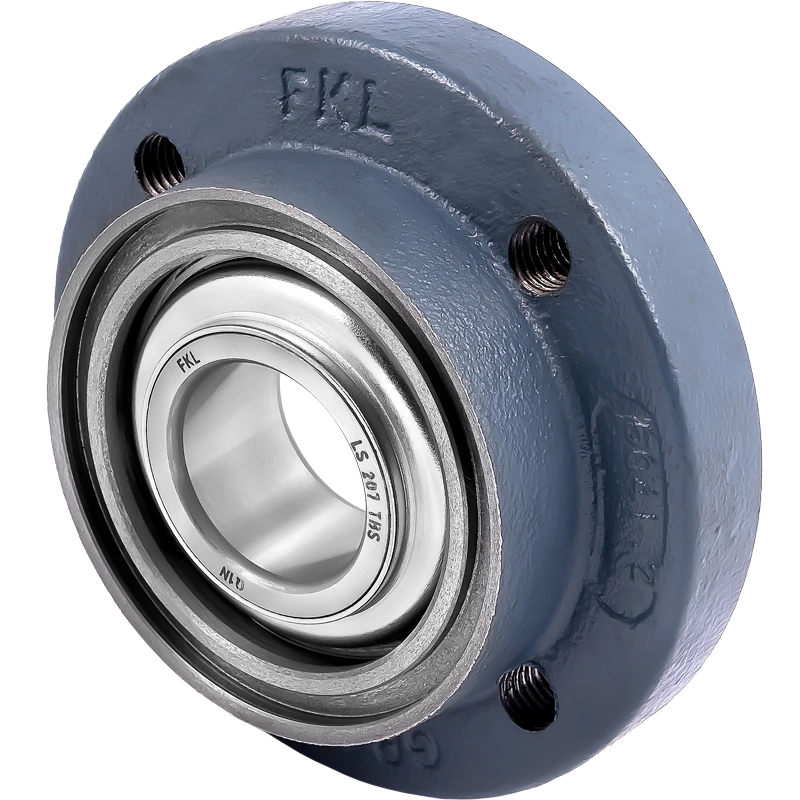

LSGR 207 TBS

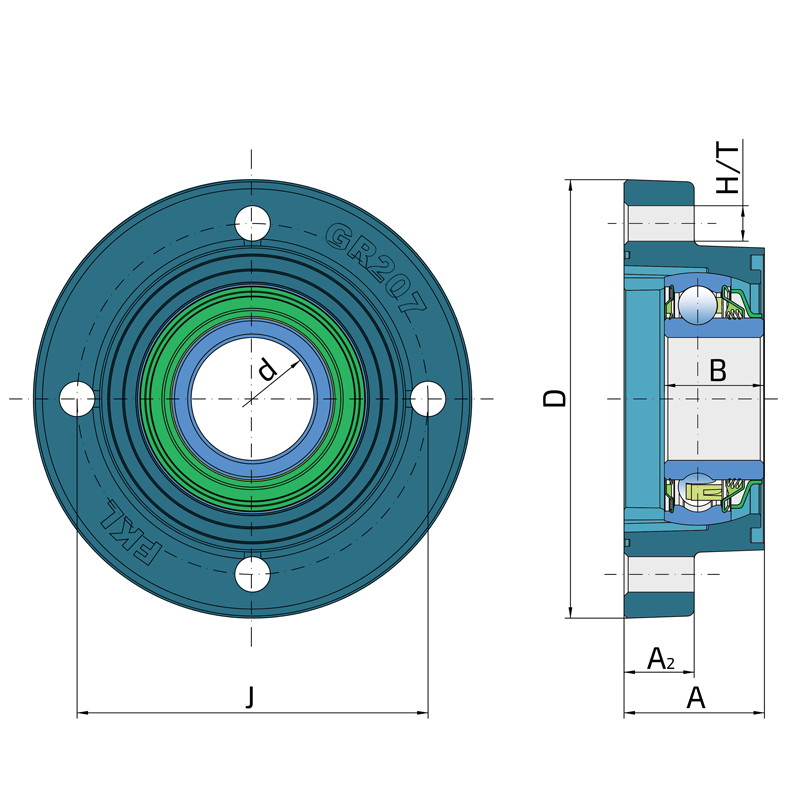

Technical specifications
| d |
Bore diameter |
35 mm |
| D |
Outside diameter |
125 mm |
| J |
Pitch circle diameter |
100 mm |
| H/T |
Hole/Thread |
M12 mm |
| A |
Overall width |
40 mm |
| A2 |
Housing flange thickness |
20 mm |
| B |
Width inner ring |
28.3 mm |
| kg |
Mass |
1.7 kg |
| Co |
Static load rating |
15.3 kN |
| Cdyn |
Dynamic load rating |
25.5 kN |
| Pu |
Fatigue load limit |
0.643 kN |

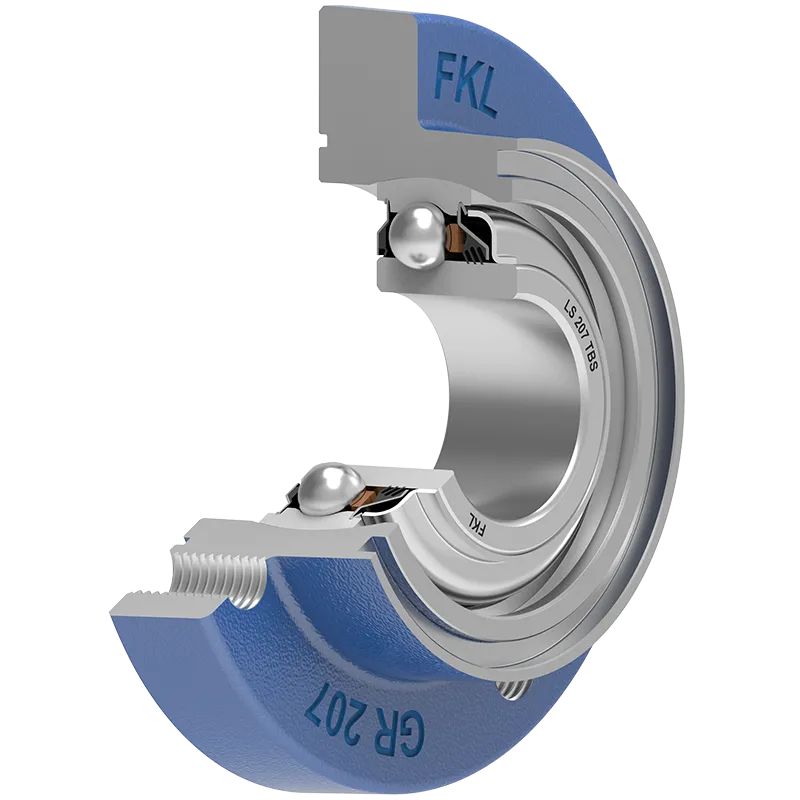

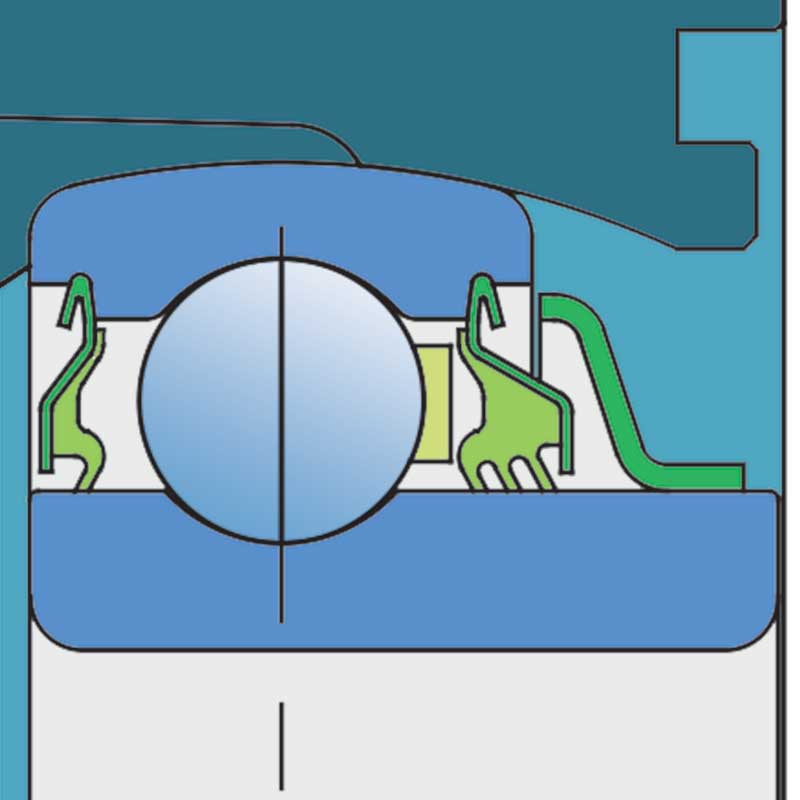

S SEAL / T SEAL+METAL FLINGER RING
S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
Cross references
| LEMKEN |
3199372 |
| INA |
F232812-0200 |
| RBF |
PN00032 |
| INA |
F232812-0200IBBU |
| OPALL-AGRI |
3421370.2 |
| BELLA-M.GEORGIEV |
LSGR 207 TBS |
| Грязинский культиваторный завод ПАО |
LSGR 207 TBS |
| ДОНЭКС ООО |
LSGR 207 TBS |
| РЗС ООО |
LSGR 207 TBS |
| INA |
RCJ 35X118X39.9 |
| INA |
RCJ 35 35X11835X39.9 4XM12 |
| RBF |
PN00032RCJ |
| ОАО Витебский мотороремонтный завод |
LSGR 207 TBS |
Installations
| LEMKEN |
RUBIN 10/700 |
| LEMKEN |
HELIODOR |
| LEMKEN |
ZIRKON |
