LSGR 205 FS
Technical specifications

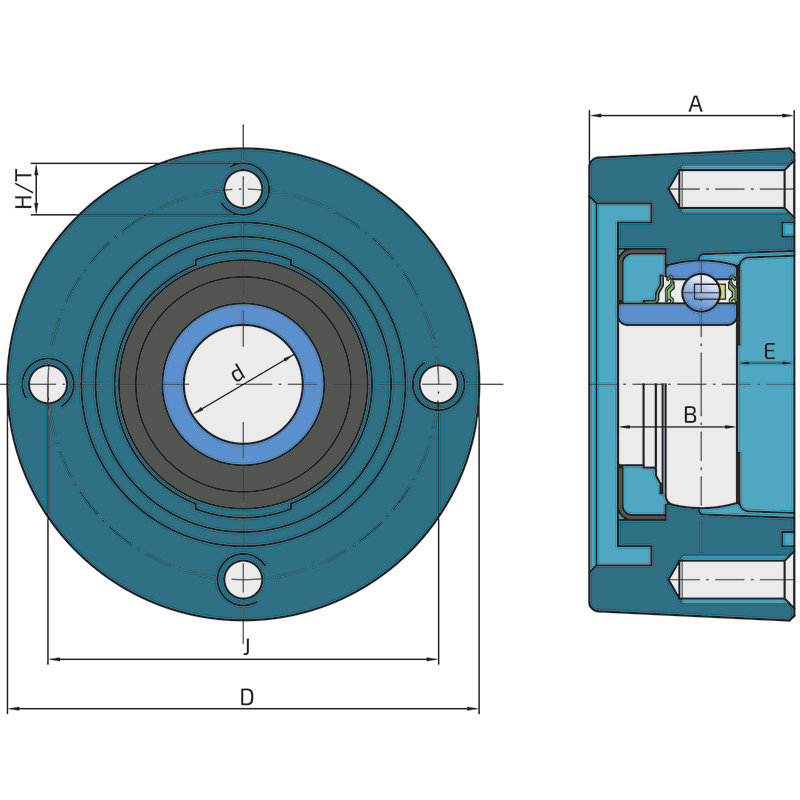

| d |
Bore diameter |
25 mm |
| D |
Outside diameter |
99 mm |
| J |
Pitch circle diameter |
82 mm |
| H/T |
Hole/Thread |
M10 mm |
| A |
Overall width |
43 mm |
| B |
Width inner ring |
25 mm |
| E |
Distance from housing flange to bearing face |
12 mm |
| kg |
Mass |
1.55 kg |
| Cdyn |
Dynamic load rating |
14 kN |
| Co |
Static load rating |
7.8 kN |
| Pu |
Fatigue load limit |
0.328 kN |

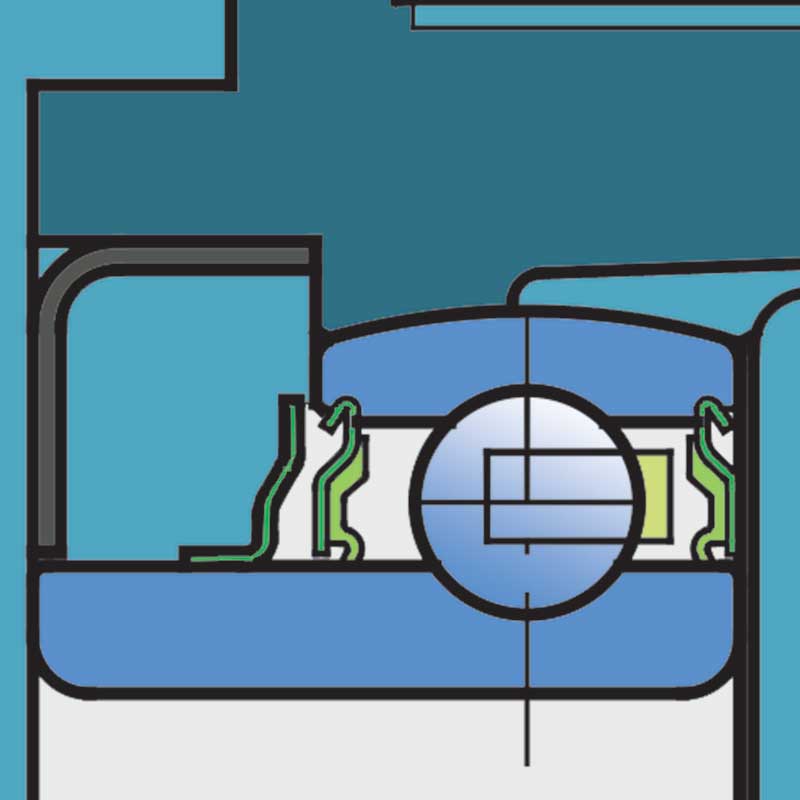

METAL COVER RING+METAL FLINGER RING+S SEAL / S SEAL
S seal on the base side and S seal with Metal flinger ring and Metal cover ring on the front side which is exposed to contaminants.
The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Cross references
| LEMKEN |
3199371 |
| INA |
F239975-0200 |
| INA |
RCJT25x400x43GGG |
| RBF |
PN00029 |
| SNR |
GGF 25 A07 + UC 205 X1 |
| LEMKEN |
F239975 |
| BELLA-M.GEORGIEV |
LSGR 205 FS |
| Geomar Agrotech EOOD |
LSGR 205 FS |
| PEER |
205RRP60-FC-A |
