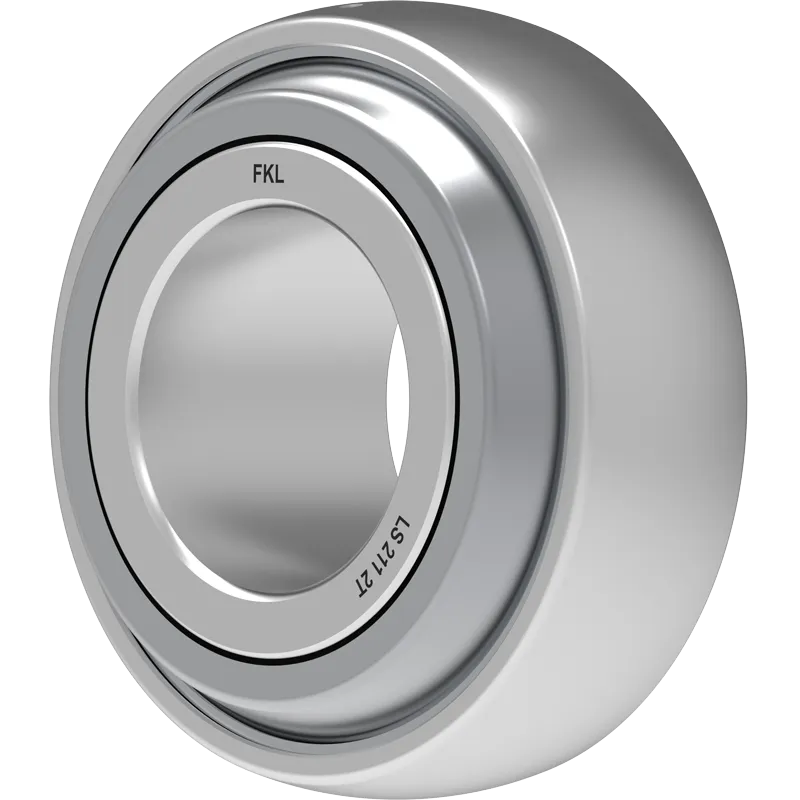

LS 211 2T

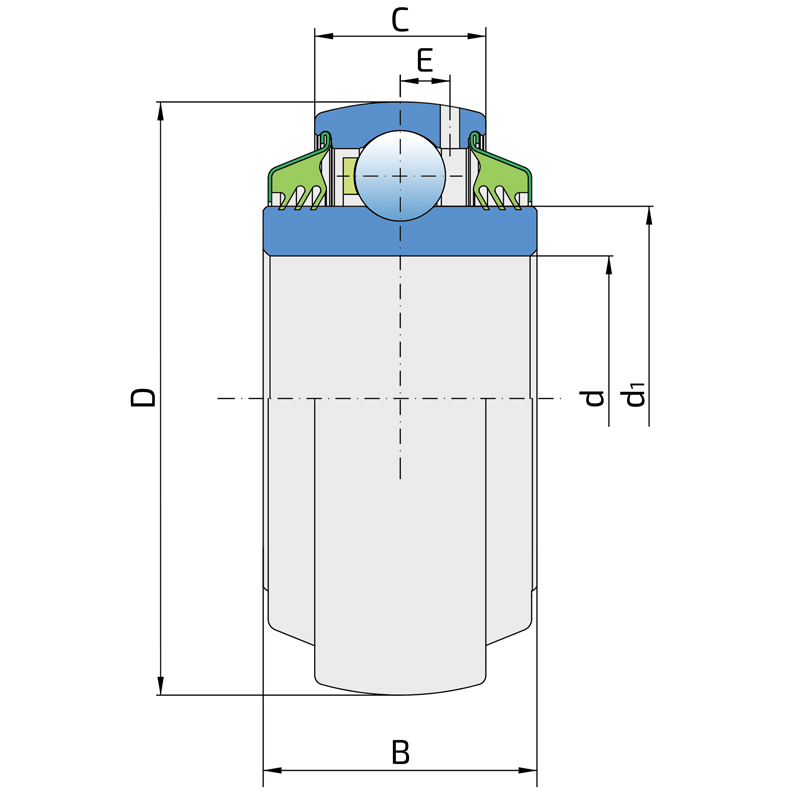

Technical specifications
| d | Bore diameter | 55 mm |
| D | Outside diameter | 100 mm |
| B | Width inner ring | 40 mm |
| C | Width outer ring | 25 mm |
| d1 | Outer diameter inner ring | 69.1 mm |
| E | Distance from raceway centre to the hole for lubrication | 7 mm |
| Cdyn | Dynamic load rating | 43.6 kN |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.25 kN |
| kg | Mass | 0.79 kg |

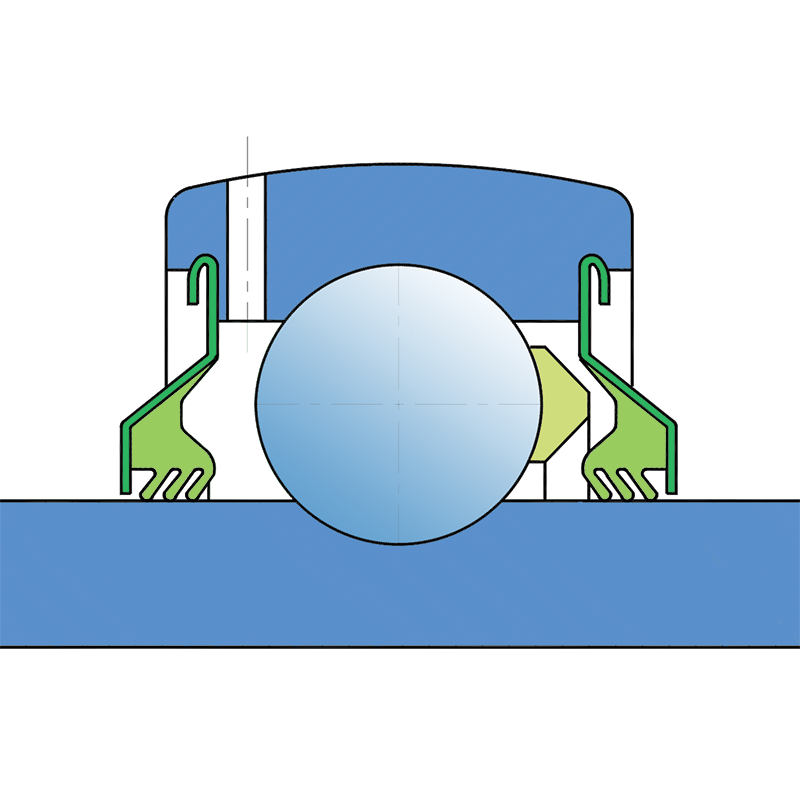

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
