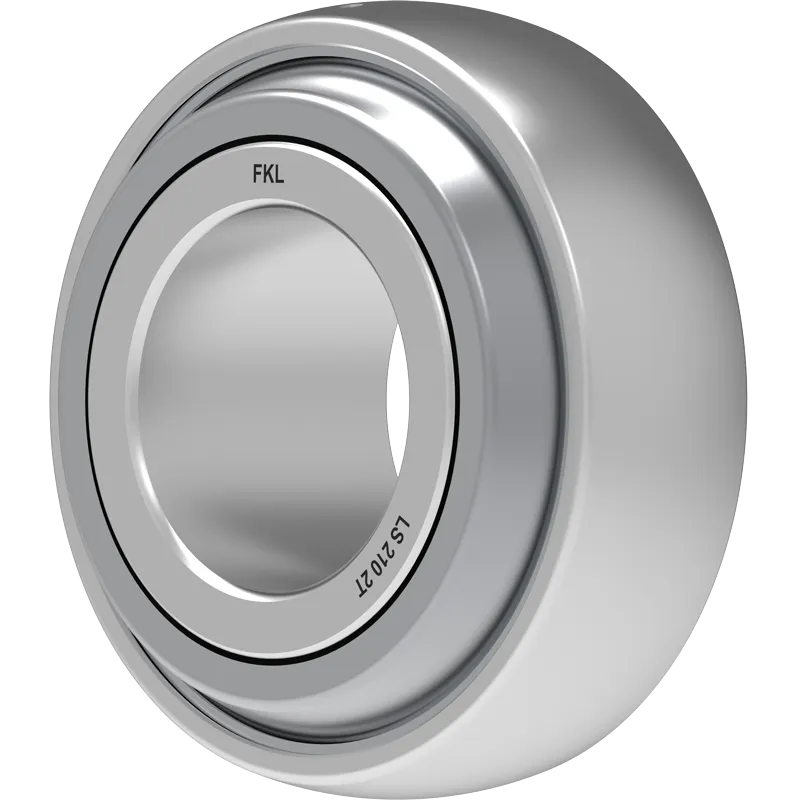

LS 210 2T

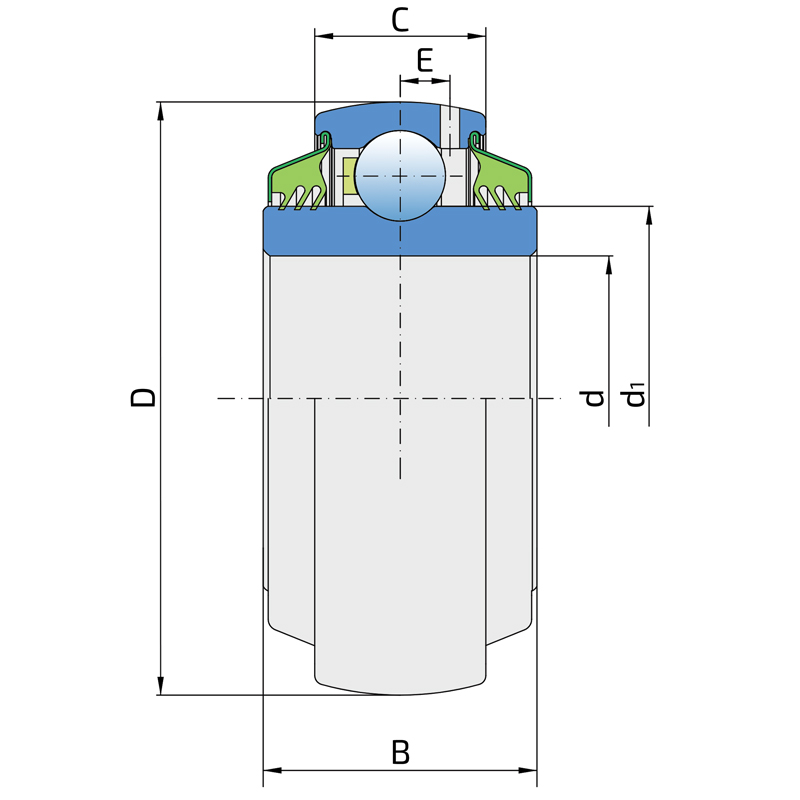

Technical specifications
| d | Bore diameter | 50 mm |
| D | Outside diameter | 90 mm |
| B | Width inner ring | 37 mm |
| C | Width outer ring | 22 mm |
| d1 | Outer diameter inner ring | 62.5 mm |
| E | Distance from raceway centre to the hole for lubrication | 6.4 mm |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 23.2 kN |
| Pu | Fatigue load limit | 0.98 kN |
| kg | Mass | 0.6 kg |

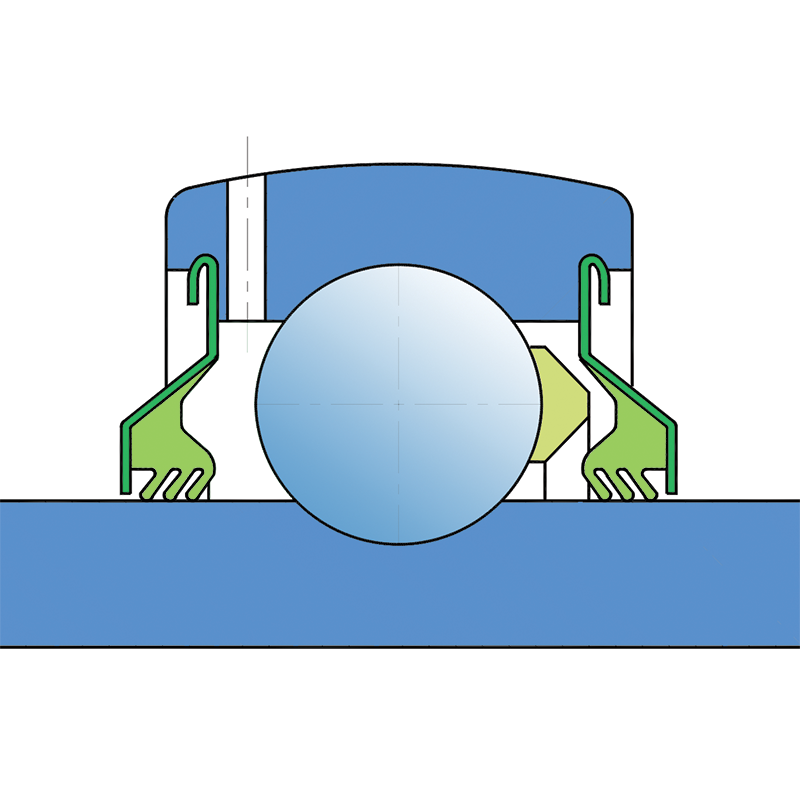

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
