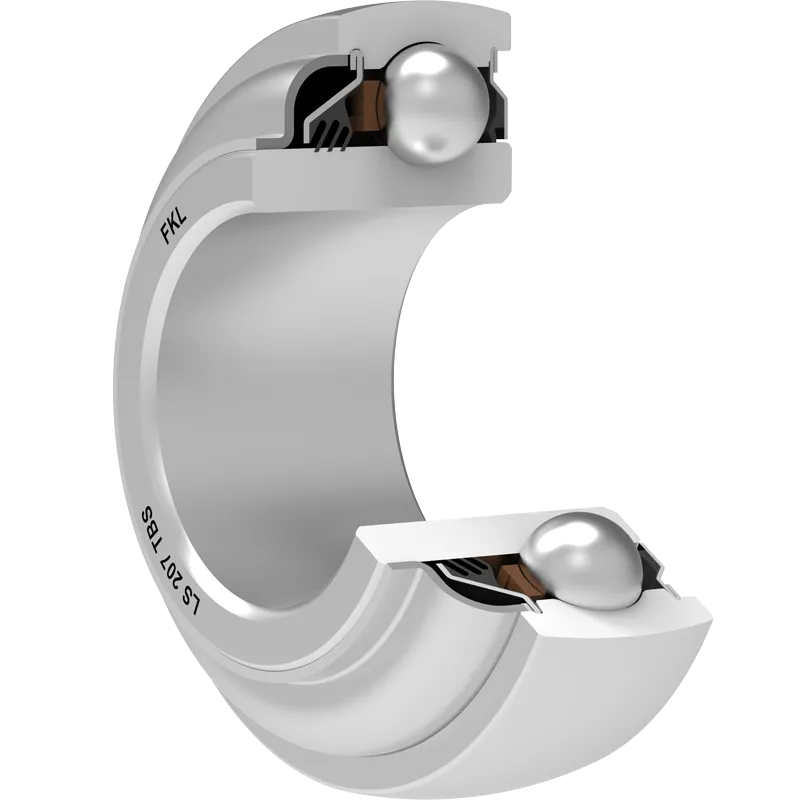

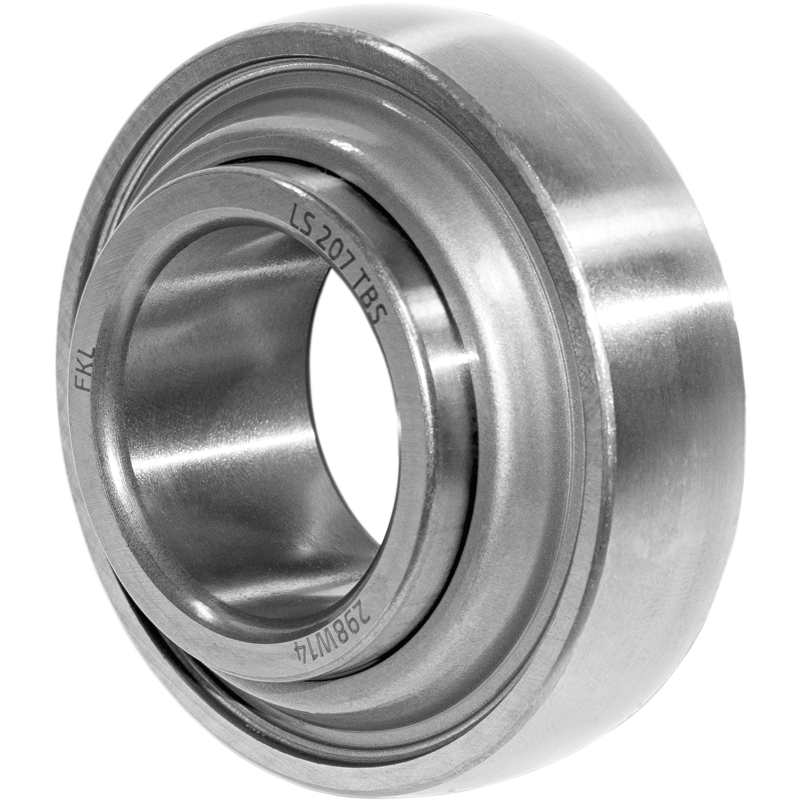

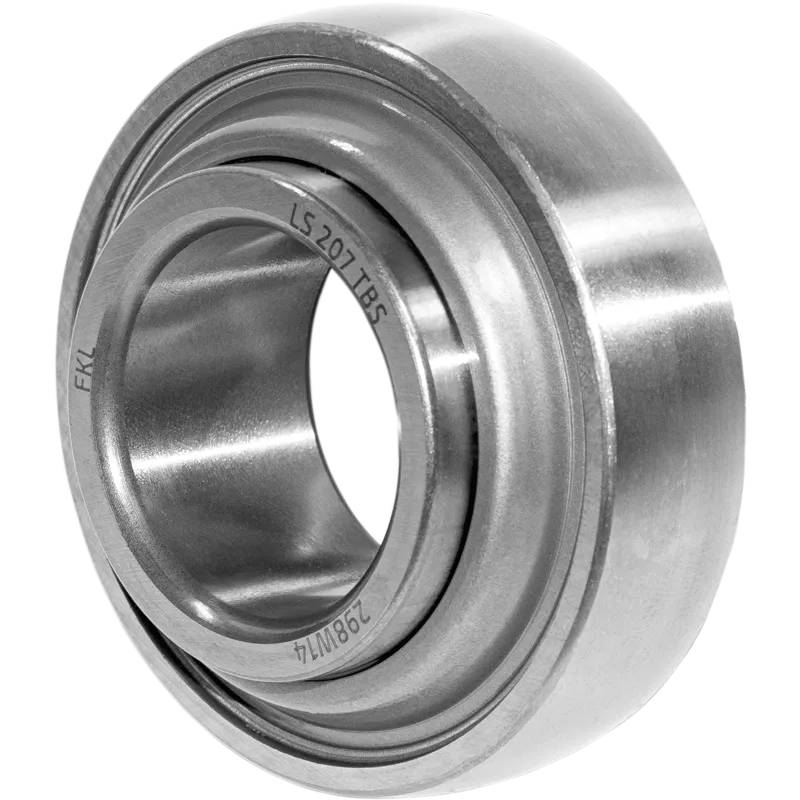

LS 207 TBS
Technical specifications

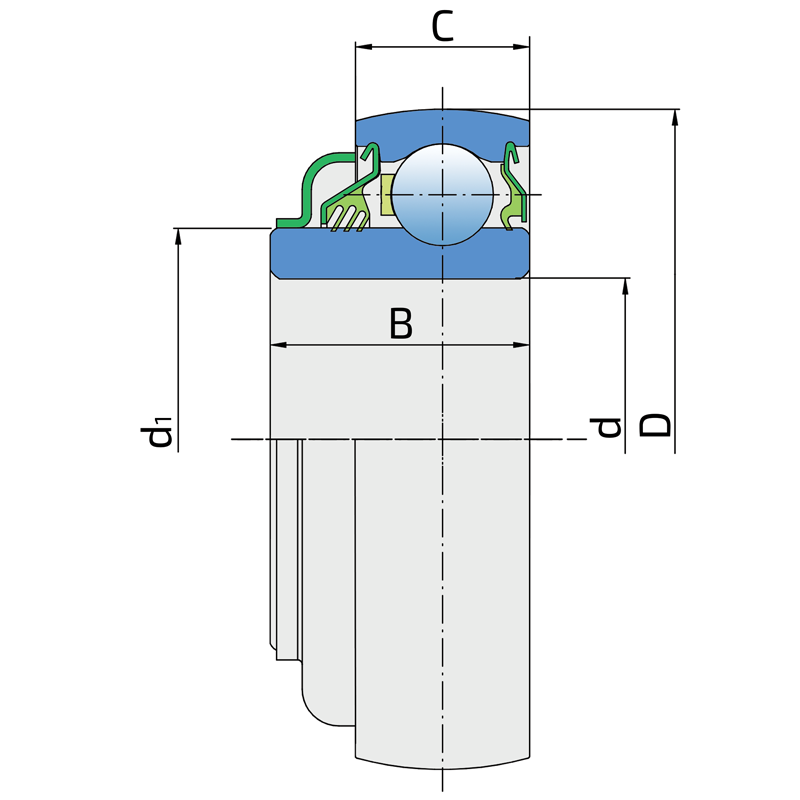

| d | Bore diameter | 35 mm |
| D | Outside diameter | 72 mm |
| B | Width inner ring | 28.3 mm |
| C | Width outer ring | 19 mm |
| d1 | Outer diameter inner ring | 46.1 mm |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.643 kN |

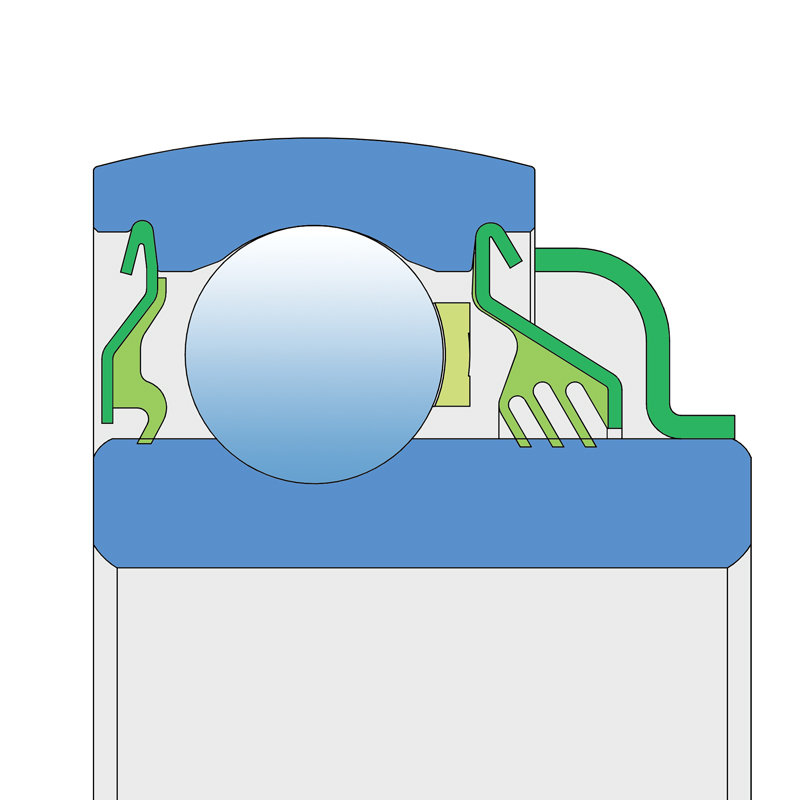

S SEAL / T SEAL+METAL FLINGER RING
S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
Cross references
| INA | F-232812-0200 |
| SKF | YFE 207 2F |
| SKF | 446207D |
| SKF | YEL207-2RF/VL065 |
| SKF | YEL 207 |
| FAG | 36207 GE35KRRB |
| INA | GE35KRRB |
| FAFNIR | A207 |
