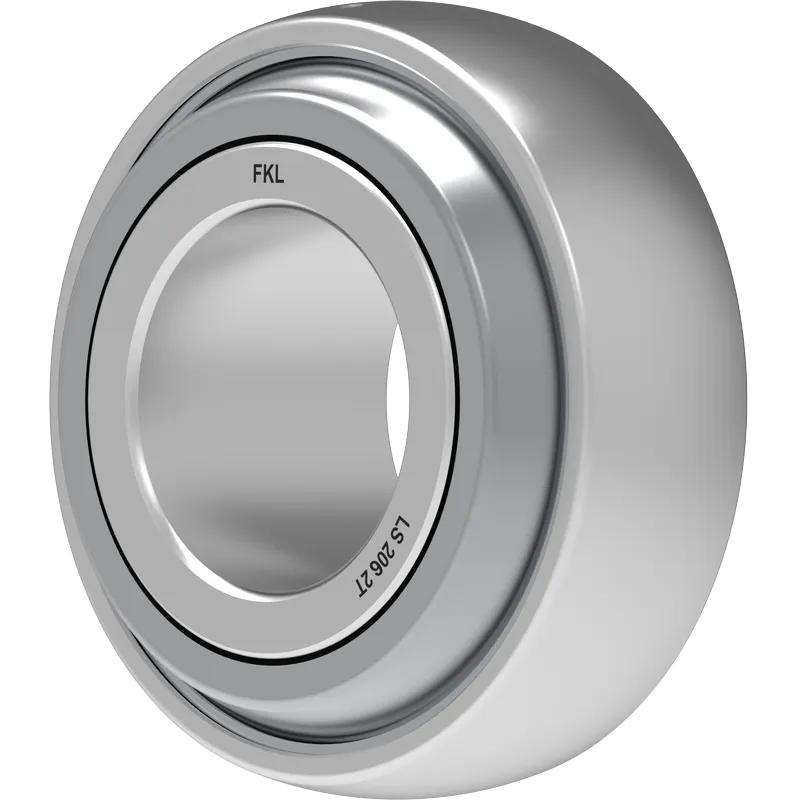

LS 206 2T
Technical specifications

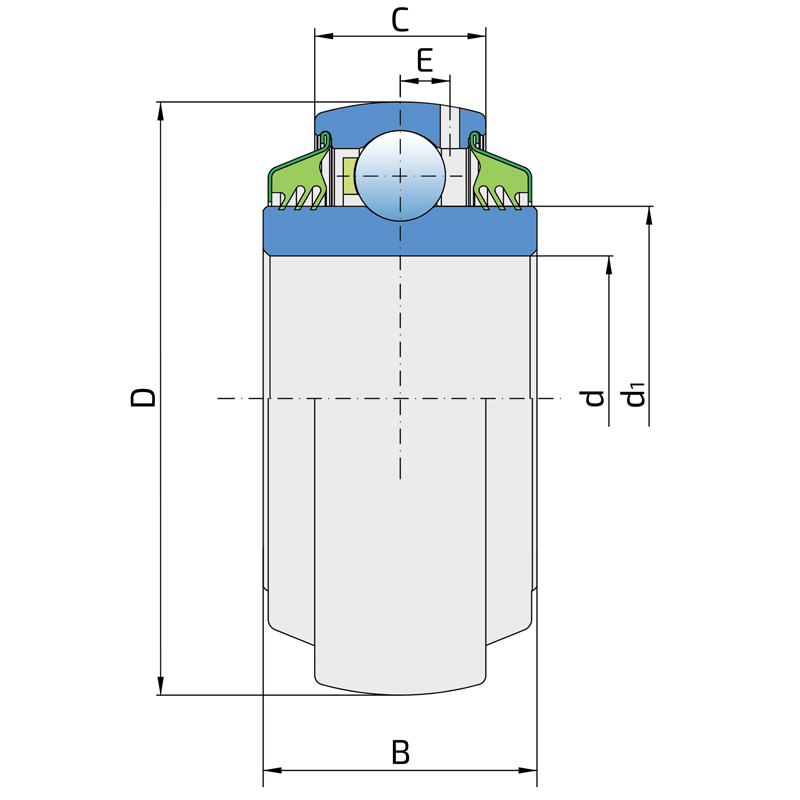

| d | Bore diameter | 30 mm |
| D | Outside diameter | 62 mm |
| B | Width inner ring | 28 mm |
| C | Width outer ring | 18 mm |
| d1 | Outer diameter inner ring | 39.7 mm |
| E | Distance from raceway centre to the hole for lubrication | 5.1 mm |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 11.2 kN |
| Pu | Fatigue load limit | 0.475 kN |
| kg | Mass | 0.23 kg |

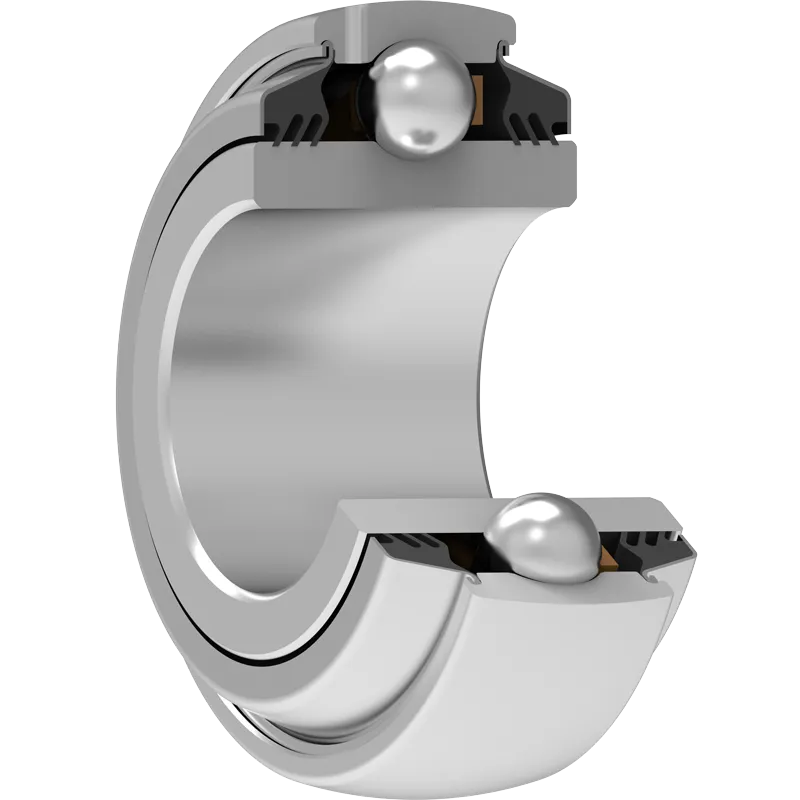

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
