LS 205 FS

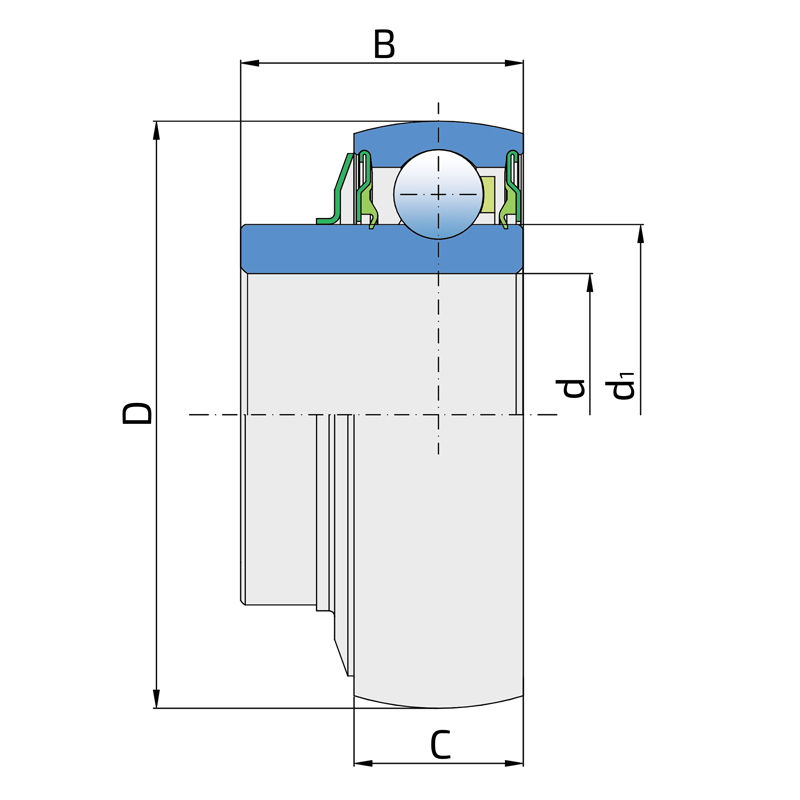

Technical specifications
| d | Bore diameter | 25 mm |
| D | Outside diameter | 52 mm |
| B | Width inner ring | 25 mm |
| C | Width outer ring | 15 mm |
| d1 | Outer diameter inner ring | 33.7 mm |
| Cdyn | Dynamic load rating | 14 kN |
| Co | Static load rating | 7.8 kN |
| Pu | Fatigue load limit | 0.328 kN |

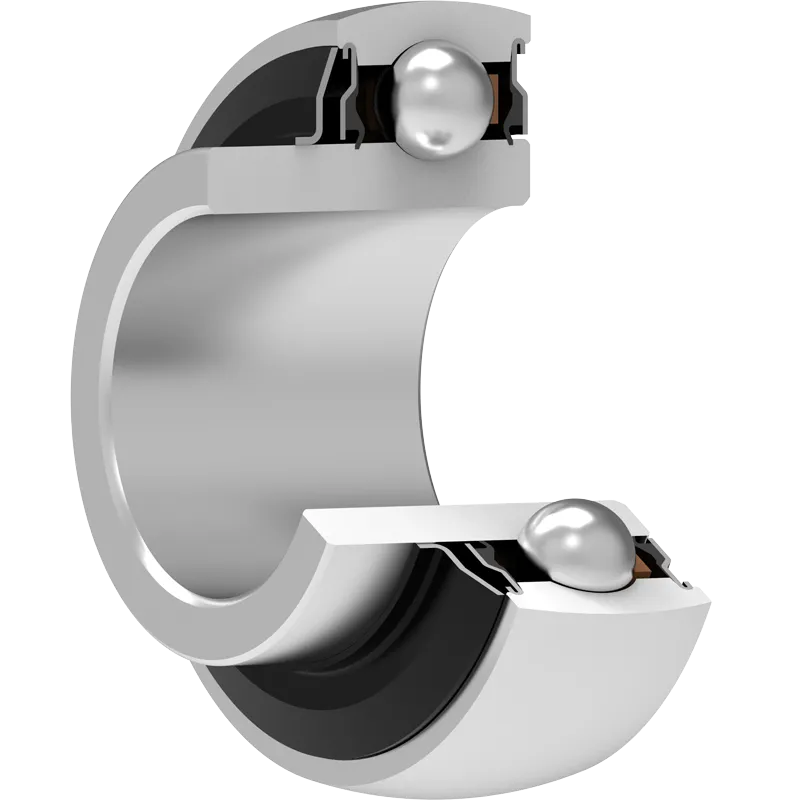

F SEAL / S SEAL (FS)
S seal on the base side and F seal on the front side which is exposed to contaminants.
The F seal on the front side protects the bearing from contaminant penetration.
