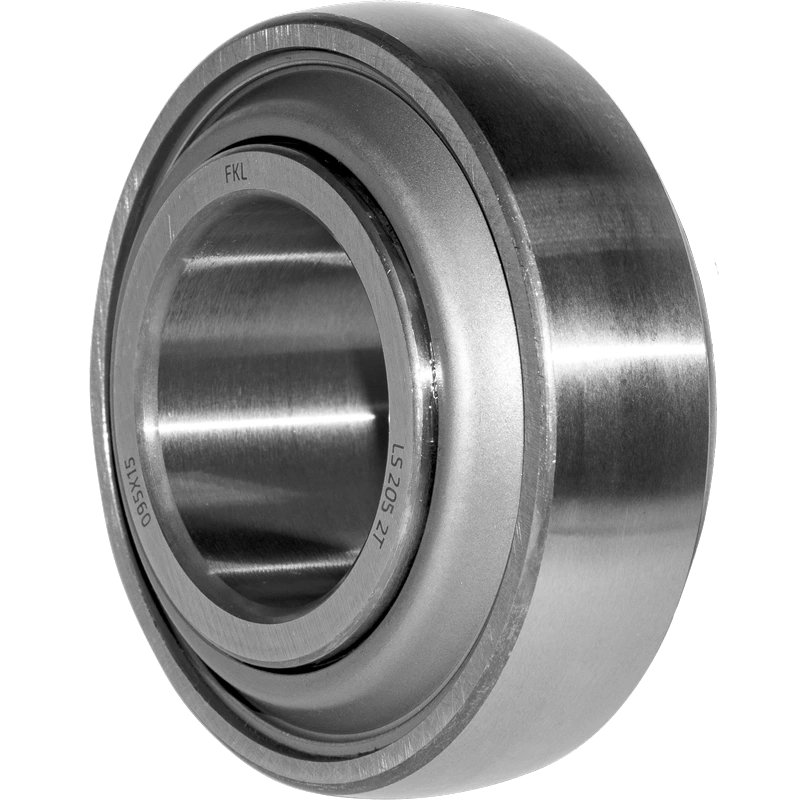

LS 205 2T

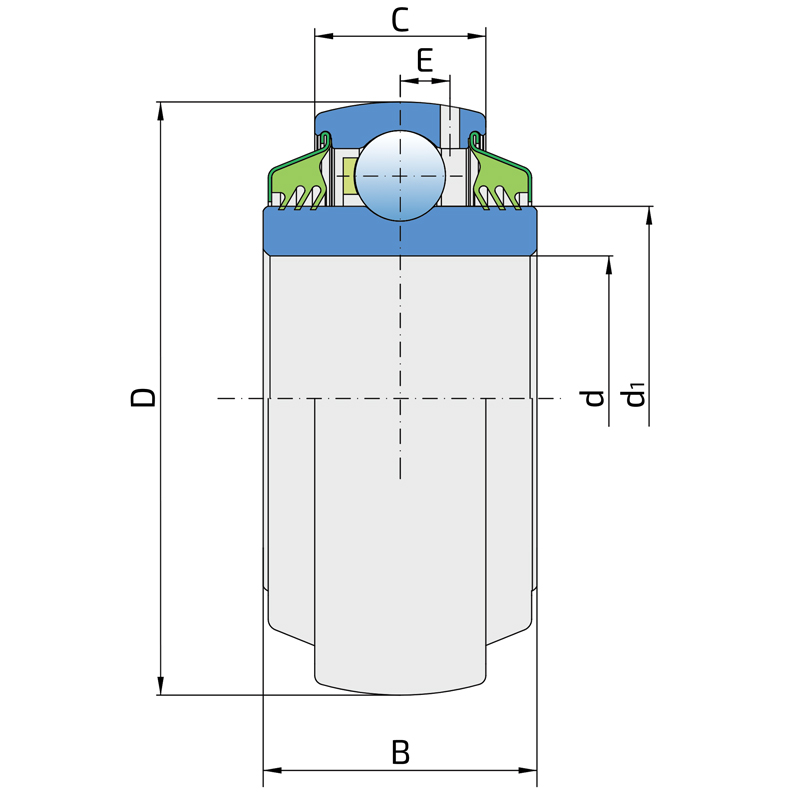

Technical specifications
| d | Bore diameter | 25 mm |
| D | Outside diameter | 52 mm |
| B | Width inner ring | 24 mm |
| C | Width outer ring | 15 mm |
| d1 | Outer diameter inner ring | 33.6 mm |
| E | Distance from raceway centre to the hole for lubrication | 4.3 mm |
| Cdyn | Dynamic load rating | 14 kN |
| Co | Static load rating | 7.8 kN |
| Pu | Fatigue load limit | 0.335 kN |
| kg | Mass | 0.14 kg |

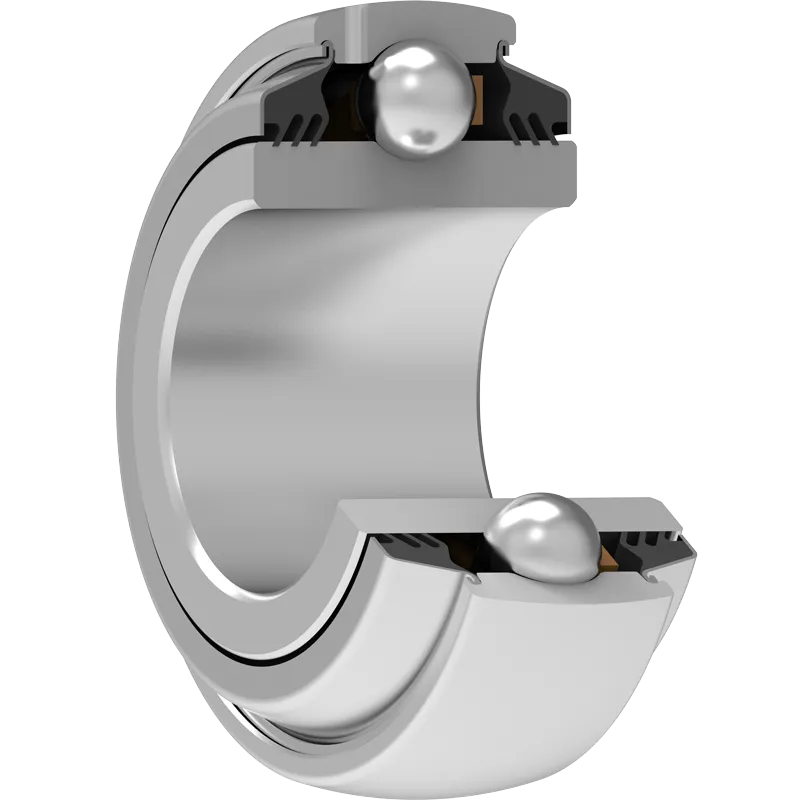

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
