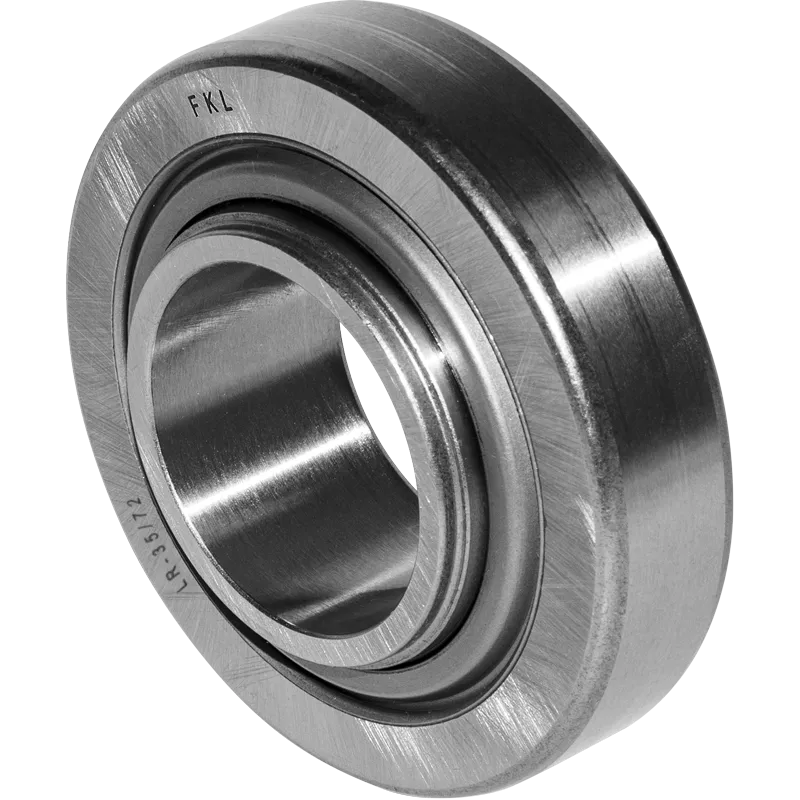

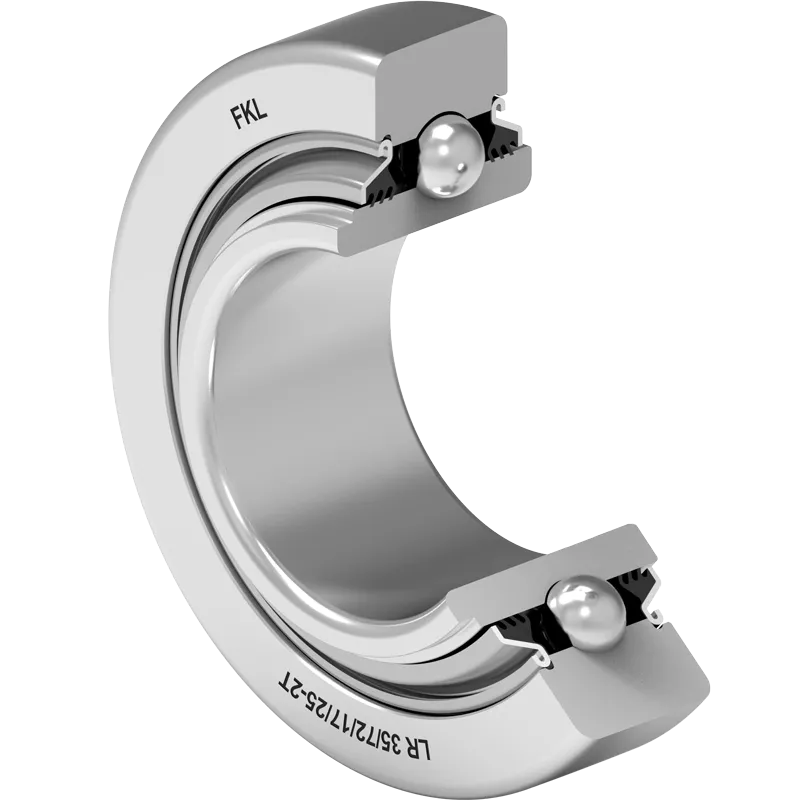

LR 35/72/17/25-2T

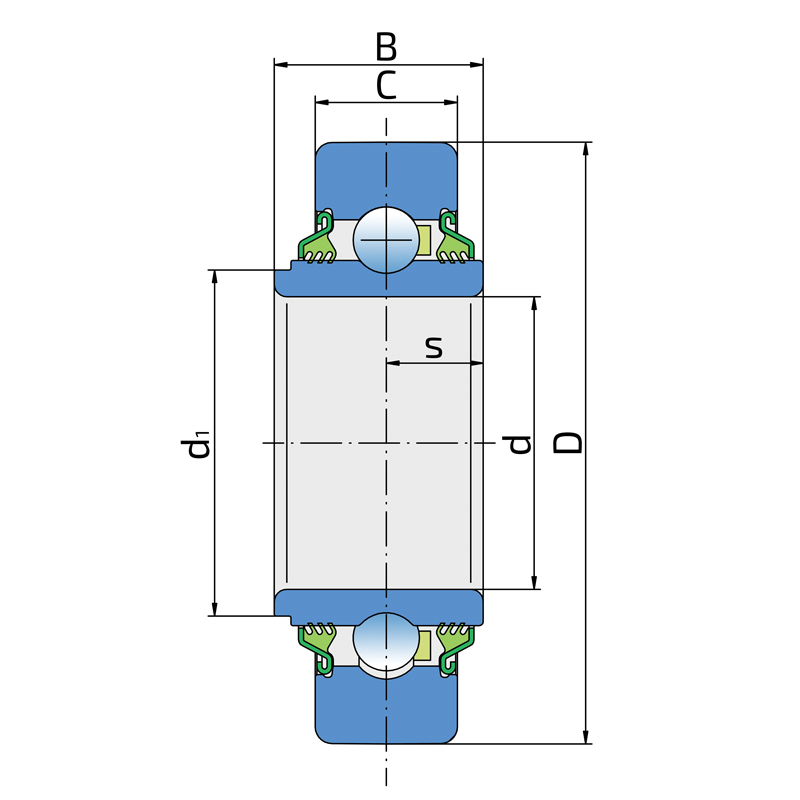

Technical specifications
| D | Outside diameter | 72 mm |
| d | Bore diameter | 35 mm |
| B | Width inner ring | 25 mm |
| C | Width outer ring | 17 mm |
| d1 | Inner ring outside diameter | 41.4 mm |
| s | Distance from inner ring side face to raceway centre | 11.6 mm |
| kg | Mass | 0.36 kg |
| Cdyn | Dynamic load rating | 16 kN |
| Co | Static load rating | 10.2 kN |
| Pu | Fatigue load limit | 0.428 kN |

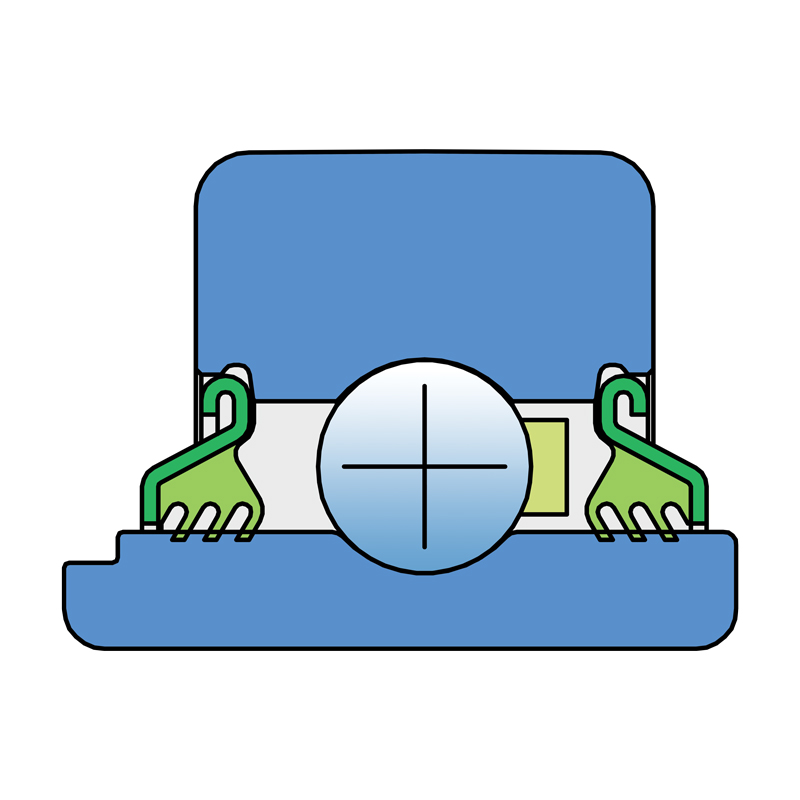

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
-LR-35-72.jpg)
Cross references
| PEER | CF6007RPP51 |
| CNH | CF6007RPP51 |
