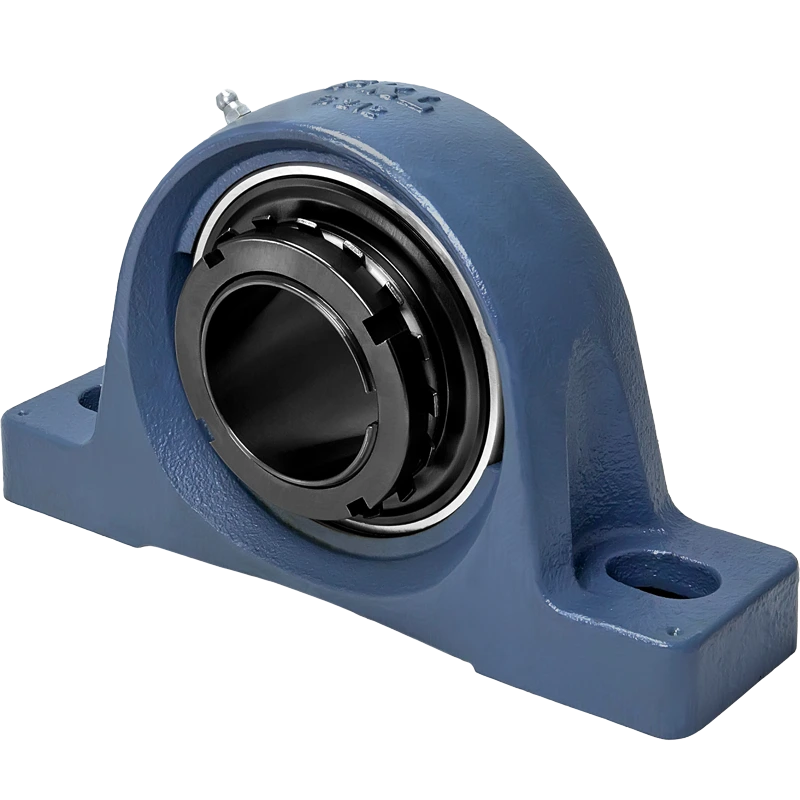

LKS 216 2F + H2316

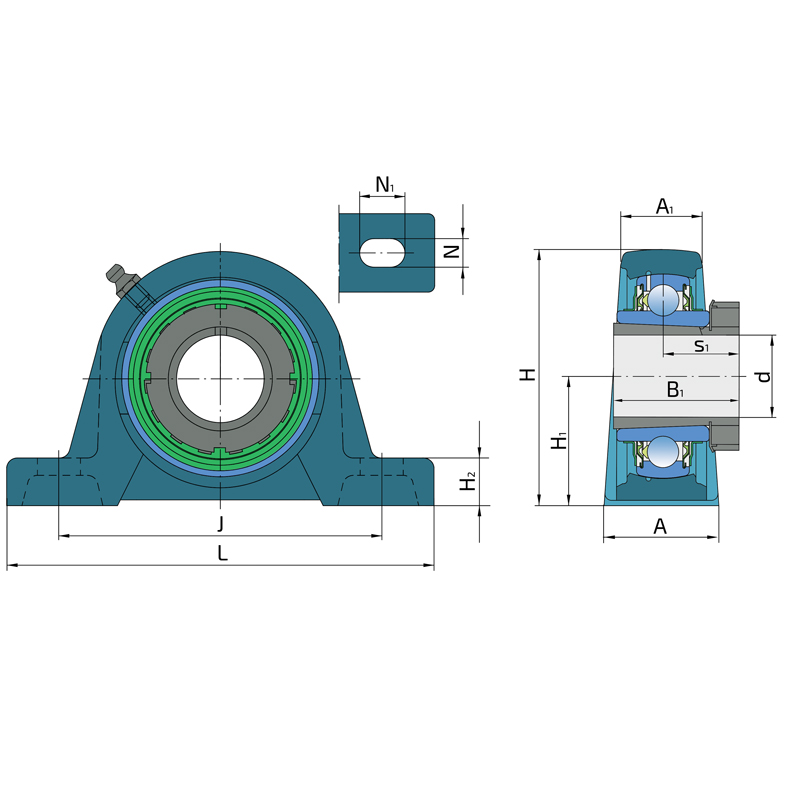

Technical specifications
| d | Bore diameter | 70 mm |
| Co | Static load rating | 54 kN |
| Cdyn | Dynamic load rating | 72 kN |
| kg | Mass | 9.5 kg |
| s1 | Distance from locking device side face to raceway centre | 41.5 mm |
| N1 | Length of attachment slot | 35 mm |
| N | Diameter of attachment slot | 25 mm |
| Jmax | Max. distance between the holes | 242 mm |
| Jmin | Min. distance between the holes | 222 mm |
| H2 | Housing foot thickness | 30 mm |
| H1 | Distance from the contact surface to the bearing axis | 88.9 mm |
| H | Housing height | 175 mm |
| A1 | Width of the top of the housing | 50 mm |
| A | Housing contact surface width | 78 mm |
| L | Overall length | 292 mm |
| Pu | Fatigue load limit | 1.53 kN |

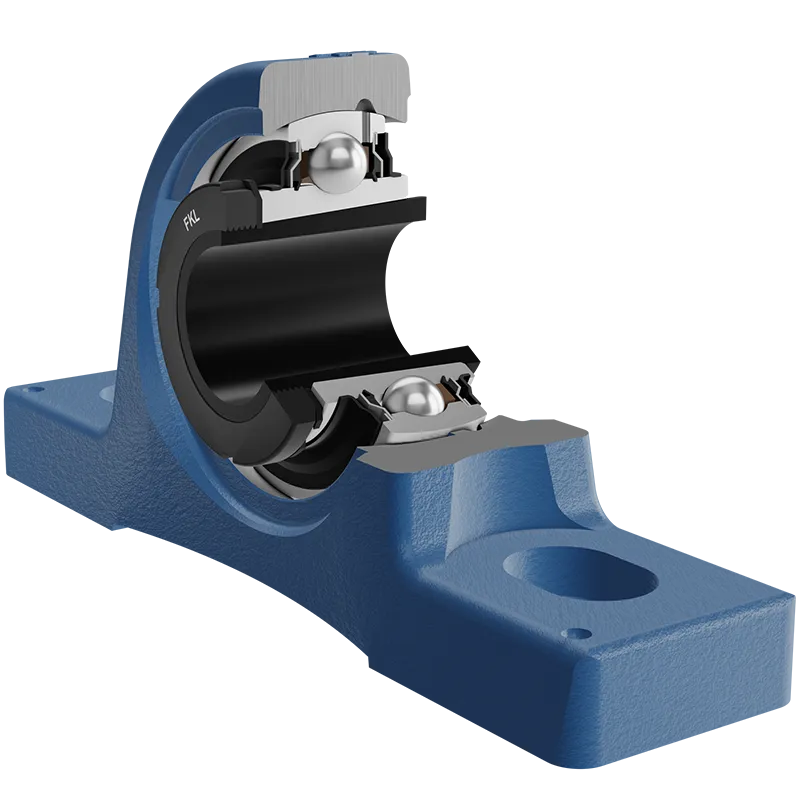

F SEAL / F SEAL (2F)
Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
