LKS 209 2F + H2309

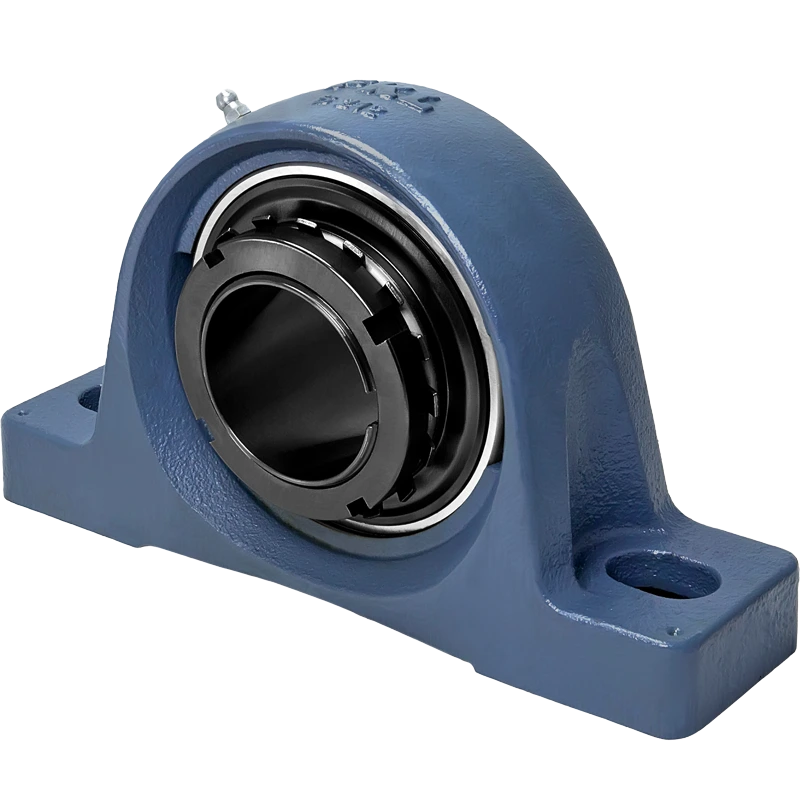

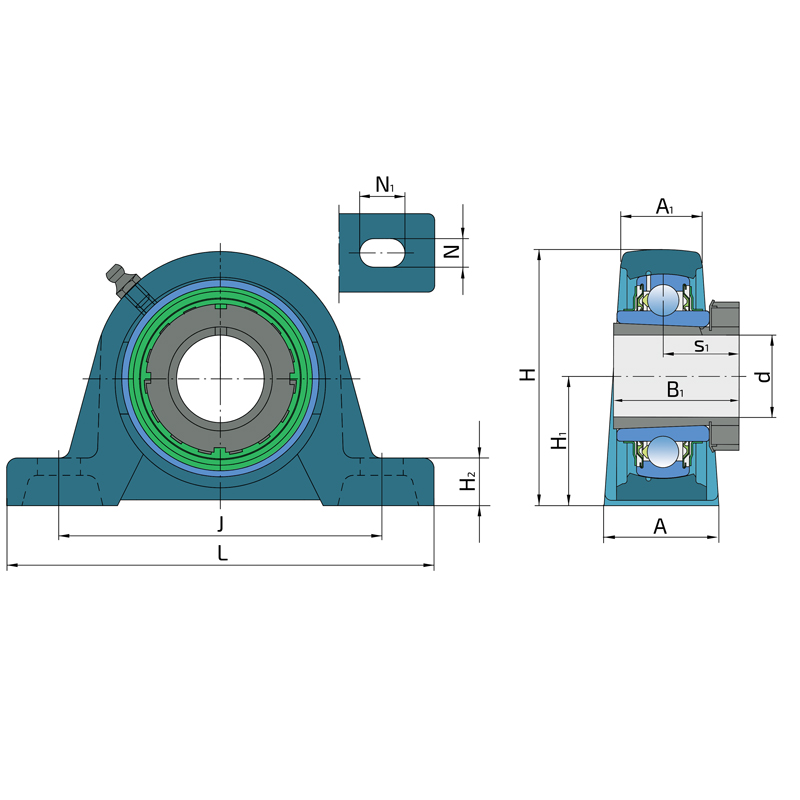

Technical specifications
| d | Bore diameter | 40 mm |
| Co | Static load rating | 20.4 kN |
| Cdyn | Dynamic load rating | 32.5 kN |
| kg | Mass | 2.35 kg |
| s1 | Distance from locking device side face to raceway centre | 28.5 mm |
| N1 | Length of attachment slot | 23.5 mm |
| N | Diameter of attachment slot | 17 mm |
| Jmax | Max. distance between the holes | 151 mm |
| Jmin | Min. distance between the holes | 136 mm |
| H2 | Housing foot thickness | 20 mm |
| H1 | Distance from the contact surface to the bearing axis | 54 mm |
| H | Housing height | 107 mm |
| A1 | Width of the top of the housing | 36 mm |
| A | Housing contact surface width | 52 mm |
| L | Overall length | 190 mm |
| Pu | Fatigue load limit | 0.64 kN |

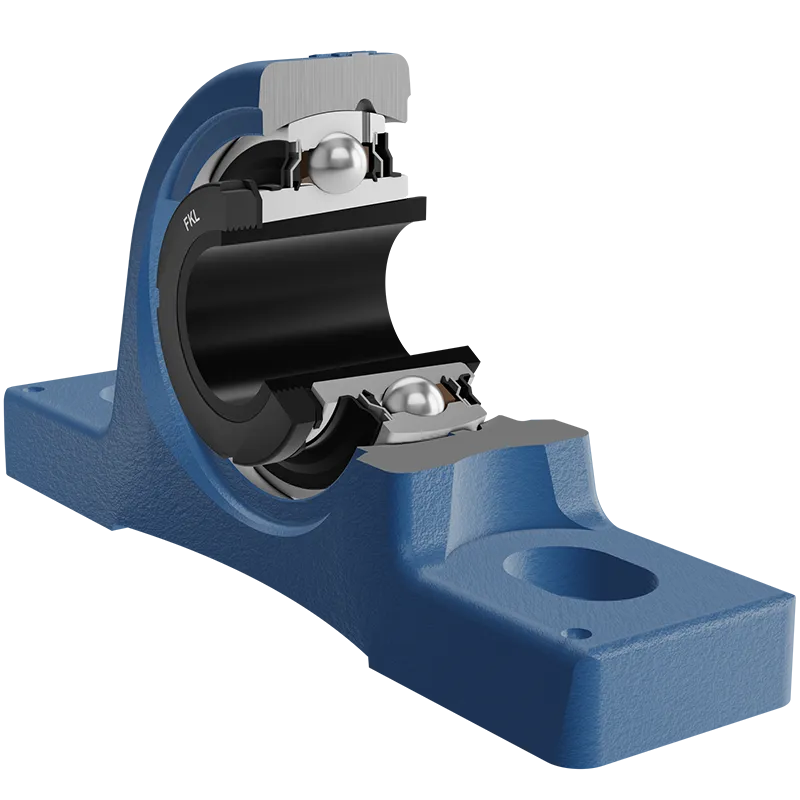

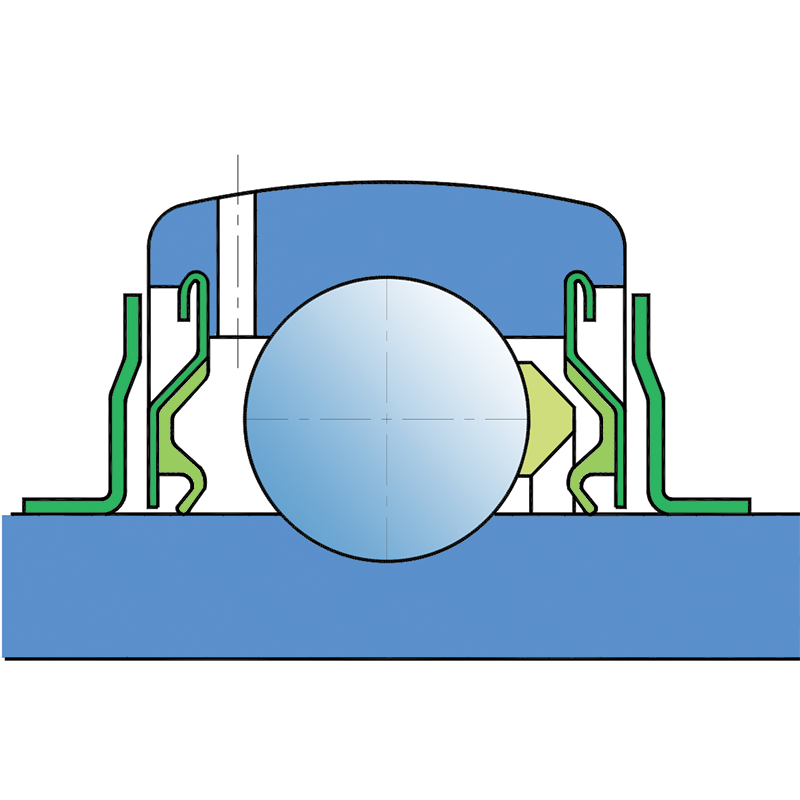

F SEAL / F SEAL (2F)
